Mini-Hopper Type 85A
Installation and Operation Manual
Introduction
The Mini-Hopper Type 85Ax is a high quality single denomination coin dispensing unit.
A unique 'jam-free'-Rotary-Disk with an inner ring and the simple mechanical design
ensures high reliable, trouble-free and high speed operation.
85A a
Current types : (1 c - 1 € coins) ,
Operation
The Mini-Hopper is available with 2 interfaces: Standard parallel and cctalk.
Installation
The Mini-Hopper can be mounted directly with 4x M4 screws from the bottom.
Optionally a 'Snap-In'-base-plate is available.
1
85A b
(for 2 € coins)
Specifications
Dimension 150 (H) x 85 (W) x 150 (L) mm
Coin Diameter 14.0-24.5mm ( a) , 24.0-29.0mm (
85A
Dispensing Speed Approx.450 coins/min (*)
Counting Method Optical Sensor
Operating Voltage 24VDC ( E1, E2 ,EC1)
85Ax-
Operating Current Load 500mA (*)
Max Current 1.5A (*)
Weight 570g
6
MTBF 1x10
Hopper capacity 1c = 1500 (2600) , 2c = 1100
5c = 850 (1500) , 10c = 850
(with Extension Tank)
20c = 600 (1000) , 50c = 450
1€ = 500 (850) , 2€ = 450
(*) at 24VDC±10% operation

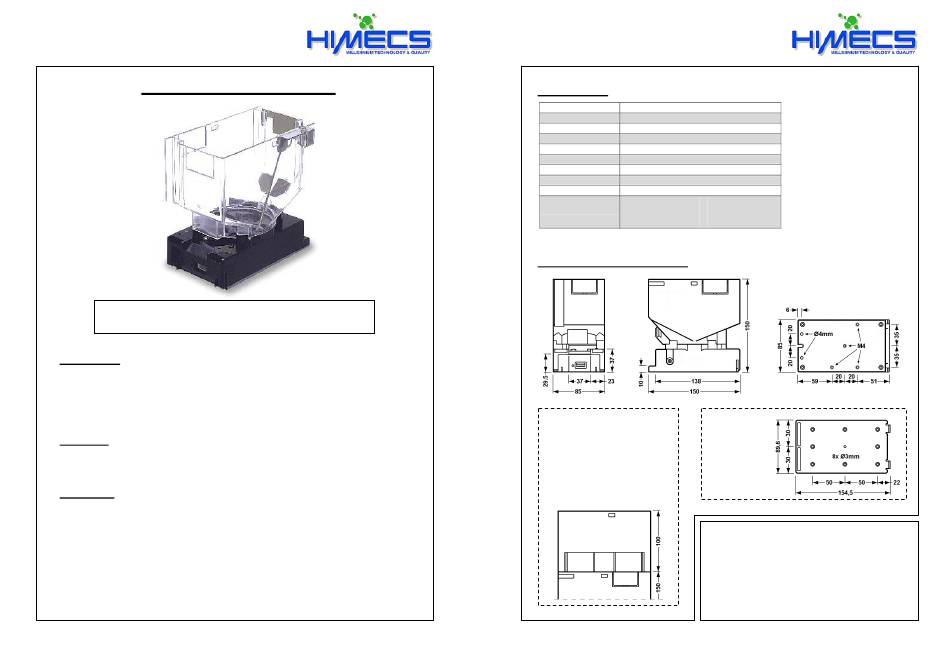

Outline Drawing and Mounting
Option: Option:
Total Capacity:
( Snap-in Base
Extension Tank Hopper+Extension)
1 c = 2600
2 c = 1900
5 c = 1500
10 c = 1500
20 c = 1000
50 c = 800
1 € = 850
2 € = 800
HIMECS CO., LTD.
TOKYO EXPORT OFFICE
3F Hibino Bldg., 1-45-2 Oh-i, Shinagawa-ku,
Tokyo 140-0014 JAPAN
Tel. +81 3 5709 8093
Fax +81 3 5709 8095
b)
85A
(1900)
(1500)
(800)
(800)
www. himecs.co.jp
