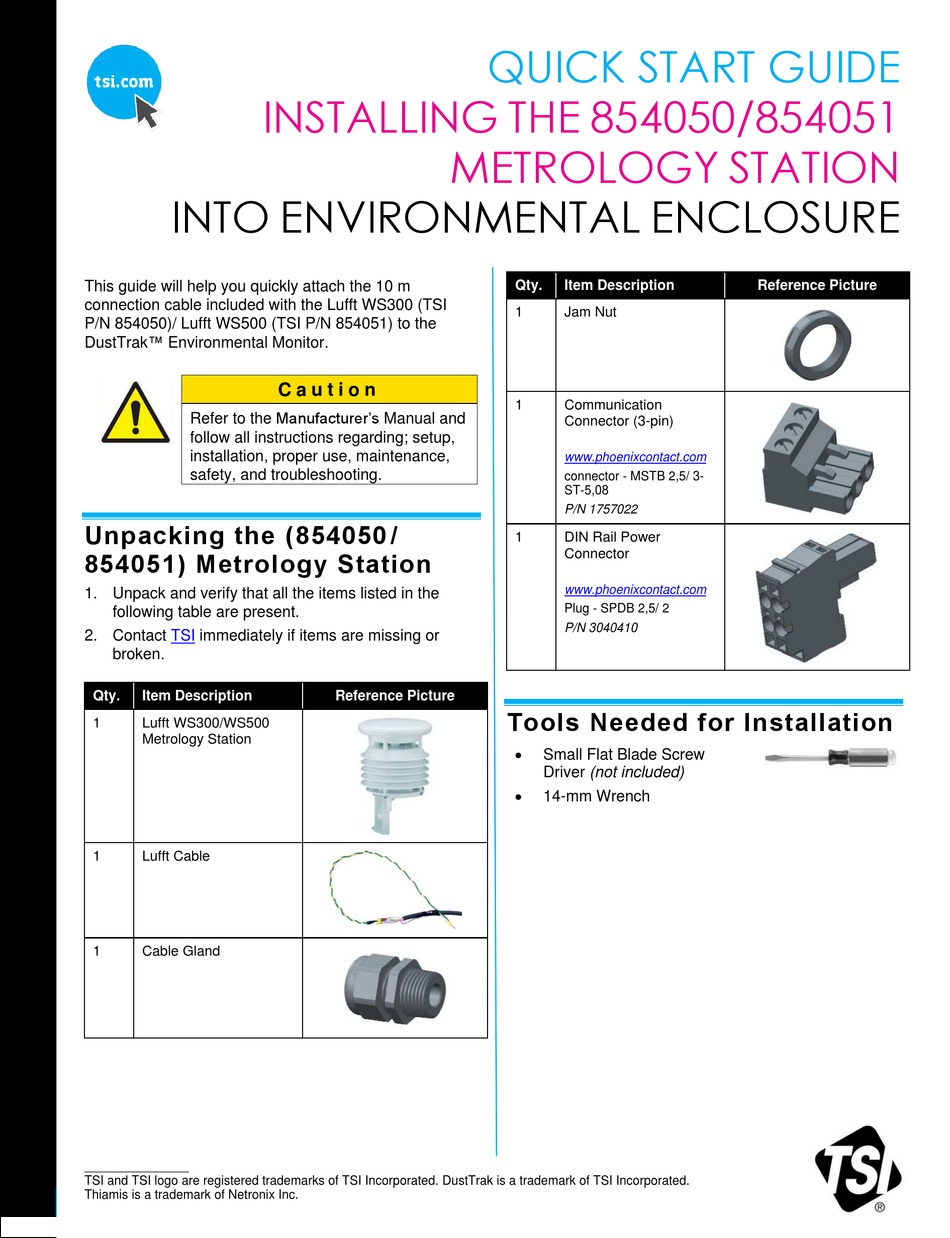

TSI Instruments 854051 Quick Start Manual

INSTALLING THE 854050/854051
INTO ENVIRONMENTAL ENCLOSURE
This guide will help you quickly attach the 10 m
connection cable included with the Lufft WS300 (TSI
P/N 854050)/ Lufft WS500 (TSI P/N 854051) to the
DustTrak™ Environmental Monitor.
Refer to the Manufacturer's Manual and
follow all instructions regarding; setup,
installation, proper use, maintenance,
safety, and troubleshooting.
Unpacking the (854050 /
854051) Metrology Station
1. Unpack and verify that all the items listed in the
following table are present.
2. Contact TSI immediately if items are missing or
broken.
Qty. Item Description
1 Lufft WS300/WS500
Metrology Station
1 Lufft Cable
1 Cable Gland
_______________
TSI and TSI logo are registered trademarks of TSI Incorporated. DustTrak is a trademark of TSI Incorporated.
Thiamis is a trademark of Netronix Inc.
METROLOGY STATION
C a u t i o n
Reference Picture

QUICK START GUIDE

Qty. Item Description
1 Jam Nut
1 Communication
Connector (3-pin)
www.phoenixcontact.com
connector - MSTB 2,5/ 3-
ST-5,08
P/N 1757022
1 DIN Rail Power
Connector
www.phoenixcontact.com
Plug - SPDB 2,5/ 2
P/N 3040410
Tools Needed for Installation

Small Flat Blade Screw
Driver (not included)

14-mm Wrench
Reference Picture
