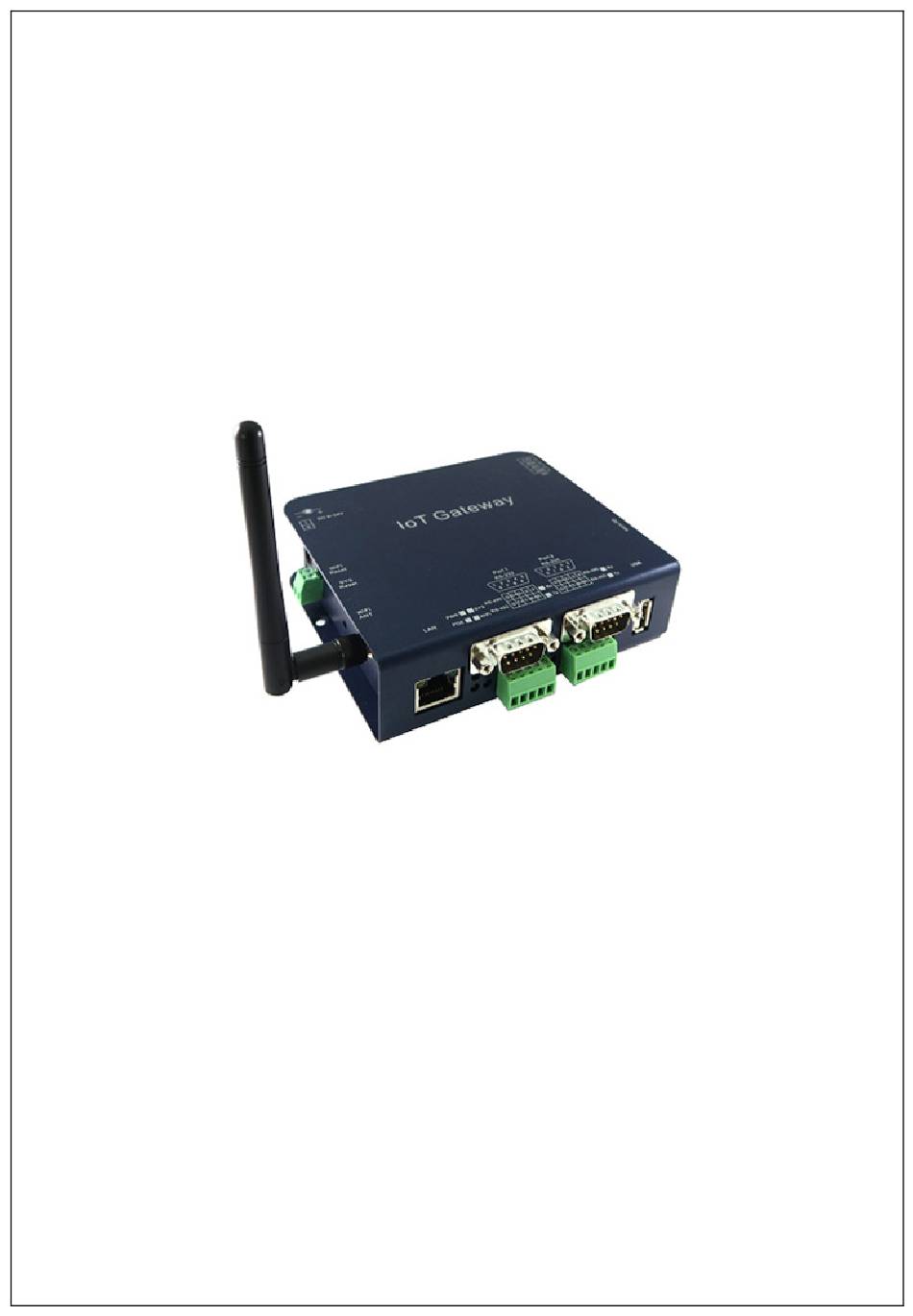

- Page 1 WPC-832-Con 2 Ports Modbus TCP to Modbus RTU Wi-Fi, Ethernet connection Data Concentrator User Manual Edition: v.201809a http://www.tcpipweb.com...
-
Page 2: Table Of Contents
Table of Contents Introduction------------------------------------------------------------------------------------------------------------------------------ 3 Overview --------------------------------------------------------------------------------------------------------------------------------- 4 Package Check List ------------------------------------------------------------------------------------------------------------------- 5 Product Specifications ---------------------------------------------------------------------------------------------------------------- 6 Product Views -------------------------------------------------------------------------------------------------------------------------- 8 Antenna Connector----------------------------------------------------------------------------------------------------------------- 8 Ethernet Port------------------------------------------------------------------------------------------------------------------------- 8 Serial Port of RS-232/RS-422/RS-485----------------------------------------------------------------------------------------- 8 DC-IN Power Outlet ---------------------------------------------------------------------------------------------------------------- 9 Reset Button ------------------------------------------------------------------------------------------------------------------------- 9 LED Indicators----------------------------------------------------------------------------------------------------------------------- 9 Wiring Architecture ------------------------------------------------------------------------------------------------------------------ 10 Configuration---------------------------------------------------------------------------------------------------------------------------11... -
Page 3: Introduction
Introduction WPC-832-Con is a Modbus TCP to Modbus RTU, Serial to Ethernet and Wi-Fi Data Concentrator. This device provides the ways of connecting serial devices to both Ethernet and Wireless LAN (Wi-Fi 802.11 b/g/n ). It is designed to operate serial ports through Ethernet (10/100Mbps) and wireless (Wi-Fi 802.11 b/g/n) over TCP/IP network. -
Page 4: Overview
Overview WPC-832-Con (hereunder called “This Device”) Modbus TCP to Modbus RTU Data provides a perfect solution to make your industrial Serial devices connect Concentrator to Internet instantly via Ethernet and Wi-Fi. embedded with MT7688AN This Device MIPS CPU makes it become the ideal device for transmitting the data from your RS-232... -
Page 5: Package Check List
Package Check List Serial to Ethernet and Wi-Fi attached with the WPC-832-Con Modbus Data Concentrator following items: 1 unit of Serial to Converter. WPC-832-Con 1 unit of Power Adaptor (12V DC, 1A) is an option. 1 unit of dipole antenna(2.0dBi). -
Page 6: Product Specifications
Product Specifications System CPU : MT7688AN MIPS CPU , 580 MHz RAM : 128M Bytes DDR2 RAM ROM : 32M Bytes Flash ROM OS : Open Wrt Linux OS Support TCP to Modbus RTU Support 4 simultaneous TCP Master or 4 TCP Slave on each RTU port. - Page 7 Mechanical and Environment Operating Temperature : -20℃〜70℃ Storage Temperature: -25℃〜80℃ Dimensions : 115 * 90 * 30 mm ( LxWxH ), include din rail wings. Weight : 110 ± 5gm Housing: Plastic. Other Features (**for programming purpose) Led Lamp : SYS, WiFi, RX, TX, LAN ...
-
Page 8: Product Views
Product Views USB host Antenna for OpenWrt only RS-232/422/485 Ethernet RJ45 Antenna Connector The connector for antenna is a standard reverse SMA jack. Simply connect it to a 2.0dBi dipole antenna (Standard Rubber Duck) and it is 50 Ohms impedance and can support 2.4GHz frequency Ethernet Port The connector for network is the usual RJ45. -
Page 9: Dc-In Power Outlet
DC-IN Power Outlet WPC-832-CON is powered by a 12V DC (Inner positive, outer negative) power supply and 1.0A current. Connecting the AC plug to the AC power socket and put the DC Jack plug into the outlet of device. The “SYS” (or “PWR”) green color LED will be ON when power properly supplied. Terminal Block (2 wires) power supply is alternative. -
Page 10: Wiring Architecture
Wiring Architecture 1. RS-232 2. RS-422/RS-485 When you finish the steps mentioned above and the LED indicators are as shown, the Gateway is installed correctly. You can check the Software Setup CD to find Utility to setup the IP Address. To proceed with the parameters setup, please use a web browser (IE or Chrome) to continue the settings. -
Page 11: Configuration
Configuration When setting up this Concentrator for the first time, the first thing you should do is to configure the IP address. The following topics are covered in this chapter: IP Search Utility Setup Configuration through Web browser... -
Page 12: Ip Search Utility Setup
IP Search Utility Setup Copy “CvIotFinder Setup.exe” from CD ROM to your host computer. “CvIotFinder” is a self-extract-install program. Double click it to install this Wi-Fi IP Searching tool into host computer. Upon running IP search tool (CvIotFinder), if a firewall warning pop up, please click to accept the program pass through firewall. - Page 13 Click “Setup” button will pop up a window. You may change Name, Description, IP, Netmask of device. Click “Setup” to save setup. The device’s IP must be same subnet with host PC/NB enable to use web browser open configuration page. Click #5 step “Goto”...
-
Page 14: Configuration Through Web Browser
Configuration through Web browser There are 4 setup pages as “System”, “Network”, “Serial” and “Aggregator”. System Setup 1.1 System: where you can change Password, set up Auto Reset time and modify Device Name, Description of device. 1.2 Appearance of Wireless ad Ethernet setup. - Page 15 1.3 NTP: Enable / Disable NTP function; Set up NTP server and Time Zone. 1.4 Firmware update: If necessary, click “Browse” to open file manager. Then, select the file with specified version and click “open” button. When the selected file name appears on the input column, click “Update” button. 1.5 Up to now, Setup is successfully configured.
-
Page 16: Network Page
Network page 2.1 Wi-Fi configuration: 2.1.1 Type: Click to select “Access Point” or “Infrastructure”. “Infrastructure” is for connecting to a Router. 2.1.2 If select “ACCESS POINT”, input password for the AP and assign IP address with “DHCP” or “STATIC”. - Page 17 2.1.3 When selected “ACCESS POINT”, this Device acts as an Access Point which is allowed to be connected by PC /NB /Smart Phone/ PAD. It supports DHCP server function. Soft AP broadcasts its SSID “CVIoT_XX_XX_XX_XX_XX_XX”. PC /NB /Smart Phone/PAD should connect to this SSID and then able to open web browser with default IP of this Device.
- Page 18 2.1.7 If the Type selected with “Infrastructure”, set SSID of Router and make the other inputs. 2.1.8 Go to item SSID, click “Scan” will get list of available SSID of Access Points, select the one in your network to link. For example: 2.1.9 On the NB/PC, choose same SSID to link.
- Page 19 2.2 Ethernet configuration: click arrow of “Mode” to select “DHCP” or “STATIC”. “STATIC” needs a fixed IP input manually. 2.3 Gateway and DNS section: check with MIS for right IP address of Gateway. The Gateway must be set with correct IP enable to connect with Internet. 2.4 Up to now, Setup is successfully configured.
-
Page 20: Serial Port Page
Serial Port page Please clearly set each parameters from Serial 1 to Serial 2 (default 9600,n,8,1). 3.1 Baud Rate: 300 bps to 921.6K bps 3.2 Parity: None, Even, Odd 3.3 Data Bits: 5, 6, 7, 8 3.4 Stop Bits: 1, 2 3.5 Flow Control: None, XON/XOFF 3.6 RxDelay(ms) 3.7 TxDelay(ms) -
Page 21: Aggregator Page (Serial Port Over Tcp/Ip)
Aggregator page (Serial port over TCP/IP) This device is to be deemed as a slave to be inquired by Master and return data to Master. 4.1 Modbus/TCP section: 4.1.1 Listener Port: This device is set with a TCP/IP socket port 502. Serial port #1 to be ID 1, Serial port #2 to be ID 2. - Page 22 4.2.2 Functions selection bar: 0XXXX - Output Coils 1XXXX - Input Coils 3XXXX - Internal Registers 4XXXX - Holding Registers 4.2.3 Add to first: click the button to get first row for data input. 4.2.4 No.: The sequential number for item. Maximum 100 items each function. 4.2.5 Reg.ID: The register address to be read from Concentrator.
-
Page 23: Reset (If Needed)
4.3 Import/Export section Import a setting file from other device’s settings. Export settings to a file. 4.4 Save / Save and Reboot: 4.4.1 Save: for save settings of this page temporarily. It’s not a permanent yet. 4.4.2 Save and Reboot: Permanent save and reboot this device. 5.
