HEBE EGP-1000 User Manual

Check before requesting repair service

• Before requesting the maintenance service, please check the following details.
If the problems are still remained after the inspection, contact the dealer or the
customer service center.

Warranty

Symptoms Probable causes What to do
• Discharge of battery • Check the power status of the product
and charge the main body.
• Impurities in the hydrogen • Cleaning it by following the instruction of
Hydrogen bubbles are
generation device cleaning hydrogen generation device.
weak or not generated
• Move the product so that the oxygen
• Blocked oxygen outlet in
outlet in downside of the product is not
downside of the product
blocked.
• Check the power status of the product
• Discharge of battery
LED does not light
and charge the battery.
• Operate with the dried • Wet the electrode part with water
Big bubbles are
electrode part thoroughly. Continued use of the
produced
• Lack of stabilization time for product will stabilize the electrode part.
the electrode part
• Fill up water in the bottle.
• Operate without water in the
Power o after the bottle
orange LED is blinking • Use water containing • Use water containing adequate amounts
of minerals.
too much minerals
The orange LED is
continuously blinking,
• Battery discharge warning • Charge the battery.
while generating
hydrogen water
• The connection status of the • Check the connection status between
charger or the charging USB the charging cable and the charging
Not charging cable is poor (contact failure) socket of main body.
• The breakdown of the charger • Try another charging cable.
or the charging cable
• The phenomenon of • Turning o power and it appears in
Appears in ne mist generating high concentrated clean state instantly.
hydrogen bubbles which is
form when generating
hydrogen water caused by adding extra
hydrogen into hydrogen water
Operating sound
• No problem.
• It is sound from generating
when generating
hydrogen bubbles
hydrogen water
Product speci cations
Items Contents
Product name Portable Hydrogen Rich Water Generator
Model name EGT-1000
Size of the main body Ø 70 X H 220mm
Weight 360g
Power Voltage DC 5V / 1.2A
Hydrogen generation
5 minutes, 8 minutes
time
Charging time 90-150 minutes (Use 25-40 times when fully charged)
Rechargeable battery DC 3.7V
Available
Below 60℃
water temperature
1. This product has been passed the comprehensive inspection through the strict
quality control at the factory.
2. Any defect occurring within the warranty period (one year from the date of
purchase) will be free of charge from the dealer or customer service center.
However, even if it is within the warranty period, if it is covered by the charged
warranty service within this warranty, it will be repaired at a cost.
3. If the product malfunctions, please contact the dealer or customer service center.
4. When requesting the repair service, the warranty should be presented.
5. After purchasing the product, please ll out the form of the warranty and keep it.
Warranty details
7
1. This product will be repaired free of charge in case of any defect in manufacturing
or normal operation within the warranty period.
2. Even during the warranty period, the following cases will be repaired at a cost.
① Poor performance and failure occurred after the warranty period has expired
② Failure due to incorrect or careless handling of consumer
③ Damage caused by intention or negligence of the consumer
④ Failure caused by repair or alteration at a place other than our service center or
retail store
⑤ Failure due to abnormal power supply or faulty of connected equipment
⑥ In case of the part reaches its end-of-life
⑦ Failure or defect in the product due to natural disasters
⑧ If there is no product warranty, or if there is no item on the date of purchase or
dealer
3. Failure occurs after the expiration of the warranty period will be repaired at a cost.
www.aquacentrum.de & www.aquacentrum.com
7
EGP-1000
User's Manual
Portable Hydrogen Rich Water Generator
World No.1
Hydrogen Technology
• Product components ···························1p
• Name of each part ······························1p
• How to charge the product ···················2p
• Safety information ······························ 4p
• How to use the product ······················· 5p
• How to clean the product ·····················6p
• Check before requesting repair service ····7p
• Product speci cations ···························7p
• Warranty ···········································8p
※ Color and design of the product may di er
from the image.
HEBE is the goddess of youth in Greek mythology. She is the daughter of Zeus and Hera, She married
Heracles. HEBE developed by EGT is a state-of-the-art energizer that creates fountain of youth.

Product Components

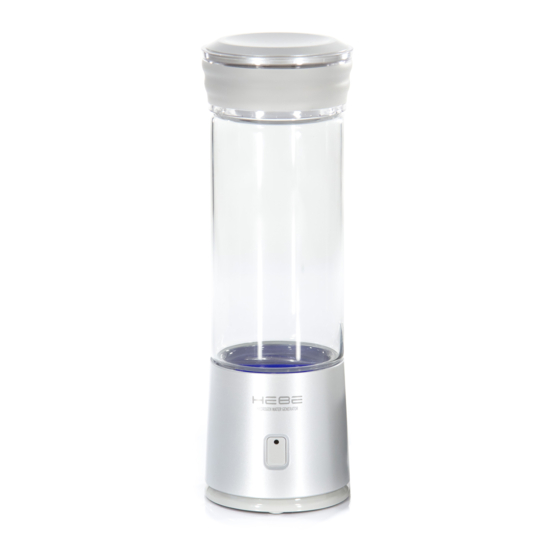

Product main body
USB charging cable Bottle and cap
(hydrogen generator)

Name of each part

Electrode part
(platinum electrode plate)
Charger
connect socket
Socket cover
Front button Oxygen outlet
8

How to charge the product

① Connect a USB cable to the socket in a regular cell phone charger, a computer or a portable
battery charger.
② Open the socket cover of the charger connect socket in the bottom of the rear side of the
product and connect the charger cable to the socket.
- While charging the device, the orange LED on the front button will blink.
- Once the charge is complete, the orange LED on the front button is lit until the charging
cable is removed from the product.
③ Once the charge has been completed, disconnect the connected socket and put the
charging socket cover in the socket to prevent water or soiling from entering to the socket.
Citric
acid
Citric acid
④ If the orange LED on the front button blinks while using the product, connect the charger to
charge the battery.
Battery
replacement
cover
Blinking orange light
Rechargeable
battery
Notice
※
Fully charge the battery before the initial use of the product.
Use an adapter with an output voltage of 5V and a current of 1.2A or more.
1
2
