Artek CLE1200-M2V Operation Manual

Variable isi cle1200 series
Hide thumbs Also See for CLE1200-M2V:

Advertisement

Table of Contents

C
L
E
1
2
0
0
C
L
E
1
2
0
0
Variable ISI
Channel
Operation Manual
for
CLE1200-M2V
CLE1200-M2K
Rev 1.1
December 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLE1200-M2V and is the answer not in the manual?

Questions and answers

Related Manuals for Artek CLE1200-M2V

Summary of Contents for Artek CLE1200-M2V

  • Page 1 Variable ISI Channel Operation Manual CLE1200-M2V CLE1200-M2K Rev 1.1 December 2018...

  • Page 2: Table Of Contents

    Variable ISI CLE1200 Series Introduction ..............................2 Safety Instruction ............................2 1. General ..............................4 Features ..............................4 2. Setup ................................. 5 3. Control ..............................6 3-1 Front Panel – Stand alone ........................6 3-2 PC Browser - Ethernet ........................7 4.

  • Page 3: Introduction

    Do not spill liquid or drop inflammable objects or metal parts into it. Usage under such conditions may result in fire, electrical shock, or malfunction. All copyright pertaining to this manual are the property of Artek, Inc. This manual may not be copied in whole or in part without written permission.
  • Page 4 Variable ISI CLE1200 Series The contents of this manual are subject to change without prior notice due to improvements. The manufacture will not be liable for any damage or trouble caused by the faulty connection or operation of this product. Accessories AC power cord (1) USB control cord (1)

  • Page 5: General

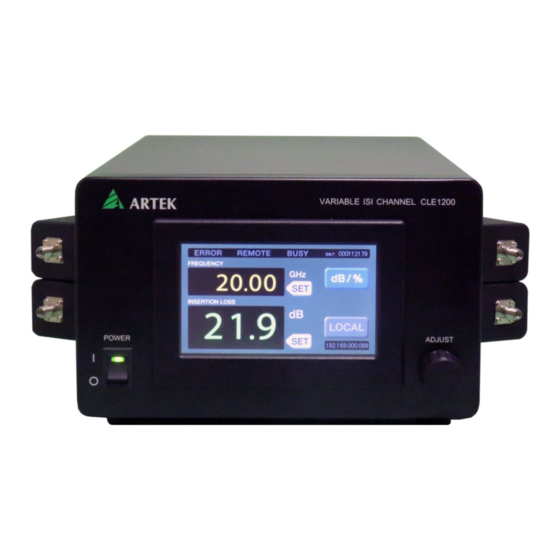

    Variable ISI CLE1200 Series CLE1200 is a variable ISI channel, consisted of passive differential lines, engineered for PHY testing on serial data interfaces. The patent-pending technology allows the linear adjustment from 0% to 100%. Features  Linearly Variable: Variable Insertion Loss from 0% to 100% ...

  • Page 6: Setup

    Variable ISI CLE1200 Series Use appropriate data cables to hook up your devices. 1.85mm (V) connector cables for CLE1200-M2V-T1 2.92mm (K) connector cables for CLE1200-M2K-T1 Page 5 Operation Manual Rev.1.1...

  • Page 7: Control

    Variable ISI CLE1200 Series There are three (3) ways to control and operate the CLE1200.  Front Panel - Stand alone  PC Browser – via Ethernet  Remote Commands – via USB or Ethernet This section explains the front panel operation as well as PC browser operations. Please refer to “Remote Command Manual”...

  • Page 8: Pc Browser - Ethernet

    Variable ISI CLE1200 Series ２ Touch to Increase Touch to Decrease  Browser and/or GUI – Enter numbers or Up arrow or down arrow key  Press for exit 3-2 PC Browser - Ethernet  Connect CLE1200 via Ethernet cable o You can connect direct with your PC or via a router.
  • Page 9 Variable ISI CLE1200 Series Page 8 Operation Manual Rev.1.1...

  • Page 10: Operation

    Variable ISI CLE1200 Series 4-1 dB Mode and % Mode There are two operation modes, “dB Mode” and “% Mode”. Press to toggle the mode dB Mode You set Nyquist Frequency and Insertion Loss in dB % Mode You set Percentage (%) against to its Insertion Loss dynamic range Page 9 Operation Manual Rev.1.1...

  • Page 11: Pc Brower Specific

    Variable ISI CLE1200 Series 4-2 PC Brower Specific IP Address IP address assigned to CLE1200 as default is 192.168.0.88. For changing the address, click the “Change IP Address” button at the right bottom section. Enter the desired IP address and click “Apply” button. Restart the CLE1200 by turning off and on.

  • Page 12: Specifications

    Variable ISI CLE1200 Series Transmission Line 2X DC-coupled Single End Impedance 50 Ohm Connector M2K: 4X 2.92mm(K) Female M2V: 4X 1.85mm(V) Female Input Tolerance 10Vpp max Insertion Loss Table-1 Return Loss Table-2 Manual (LCD with touch panel & Jog Control Dial) PC via USB (control software) PC via LAN (Web Browser)

  • Page 13: Warranties

    It does not cover damage which occurs in shipment; applications and used for which this product was not intended; failures or problems which are caused by products or equipment not supplied by ARTEK; accidents, misuse, abuse, neglect, misapplication, fire, water, lightning, or other acts of nature;...
  • Page 14 Variable ISI CLE1200 Series Customer Support Customer Support Please contact with Please contact with our customer support center. Worldwide Sales & Support www.aceunitech.com Developed By www.artek.co.jp Page 13 Operation Manual Rev.1.1...

This manual is also suitable for:

Cle1200-m2k
