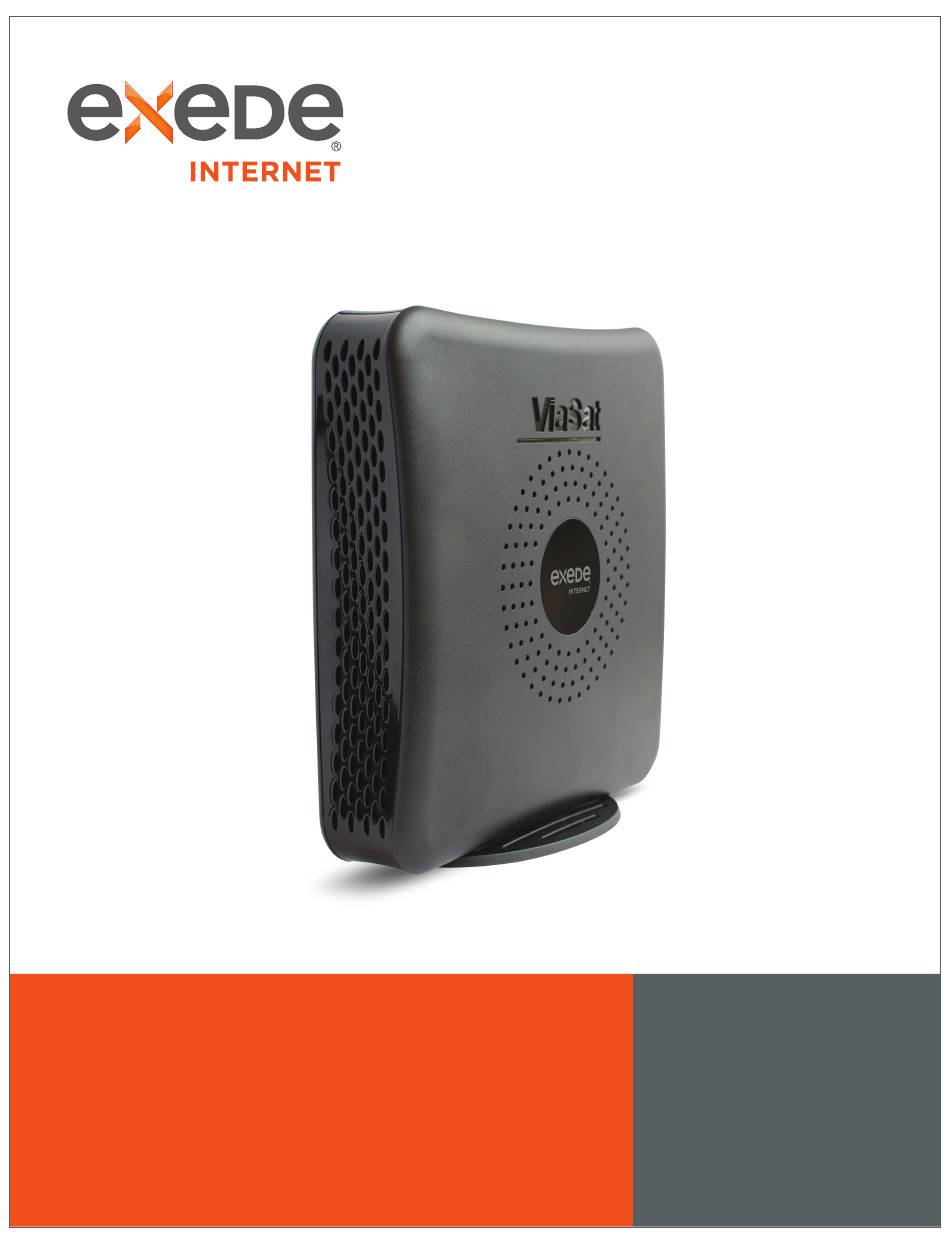

- Page 1 Exede WiFi USER GUIDE Modem...

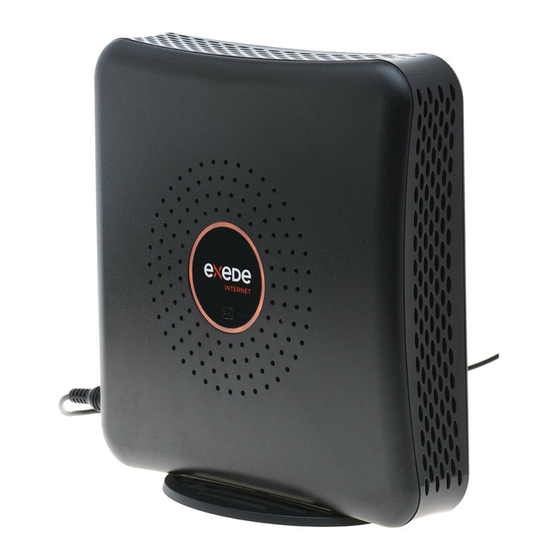

- Page 2 Exede Satellite Internet hether you’re streaming your favorite videos, downloading important files or connecting with friends and family, your new Exede WiFi Modem brings the best of the internet to you in one simple box. The Exede WiFi Modem includes a modem for internet access, a built-in, fully supported wireless router and an integrated Exede Voice adapter for home phone service.
- Page 3 SECTION 1 What’s In the Box Your Exede WiFi Modem includes everything shown here: Ethernet cable for connecting your modem to your computer Exede WiFi Modem Power Supply (for use with Exede WiFi Modem only) F-connector...
- Page 4 Ethernet jack on your computer. The Exede WiFi Modem includes four Ethernet connections so that multiple devices may be connected if needed. If you are using Exede Voice, connect your home phone to the standard RJ11 phone jack on the back of your modem. Refer to Section 6 for more information about setting up Exede Voice.
-
Page 5: Modem Specifications
WiFi type: 802.11 a/b/g/n dual-band selectable frequency supporting 2.4 GHz and 5 GHz connections. Router: 4-port gigabit Ethernet router Wireless security: Supports WPS, WEP, and WPA security standards. Other features: RJ11 phone jack (for Exede Voice only) Guest access network capability Parental controls... - Page 6 INSTRUCTIONS FOR ASSEMBLING YOUR MODEM NOTICE Always use the stand. The modem Attach Connector Attach Stand must be placed vertically for adequate ventilation. Ventilation keeps your modem cooler, and is necessary for proper operation. INSTRUCTIONS FOR POSITIONING YOUR MODEM Place your modem on a hard surface. Soft surfaces like a rug or carpet may cause your modem to tip over and may block ventilation.
-
Page 7: Connecting Your Devices
Connecting your devices SECTION 4 Your Exede WiFi Modem supports both wired and wireless connections. Up to four wired devices (computers, TVs and/or DVRs) may be connected directly to your modem using Ethernet cables. Refer to your device manuals for more information. -
Page 8: Indicator Lights
— or— VoIP is not working. ONLINE DEGRADED Blue light: The Exede WiFi Modem is connected and fully functional. ONLINE Please note that it is normal for the indicator light to flash numerous colors or go dark for a few seconds when it is first powered on. -
Page 9: Warranty And Safety Information
SECTION 6 Setting up a VoIP Telephone (Optional) Now that your Exede WiFi Modem is fully connected, it’s time to set up your VoIP telephone service, if you have one. Connect your computer or router to the Exede WiFi Modem using an Ethernet cable. - Page 10 / or antenna when the transmitter is on. • When the Exede WiFi Modem is powered on, DC voltage is present on the rear panel IFL connector. • Ensure that the Exede WiFi Modem at all times has at least three inches of clearance from other objects on each side and that air can flow freely to the Exede WiFi Modem.
- Page 11 • Do not paint or place decals on the Exede WiFi Modem housing. • Install an AC surge arrestor in the AC outlet to which the Exede WiFi Modem is connected. This is to avoid damaging the equipment by local lightning strikes and other electrical surges.
- Page 12 “pigtail” connector and avoid touching the coaxial cable connector unless its power adapter has been unplugged from the power outlet for at least one minute. • To prevent overheating, do not block the ventilation holes on the sides, top, or bottom of the Exede WiFi Modem.
