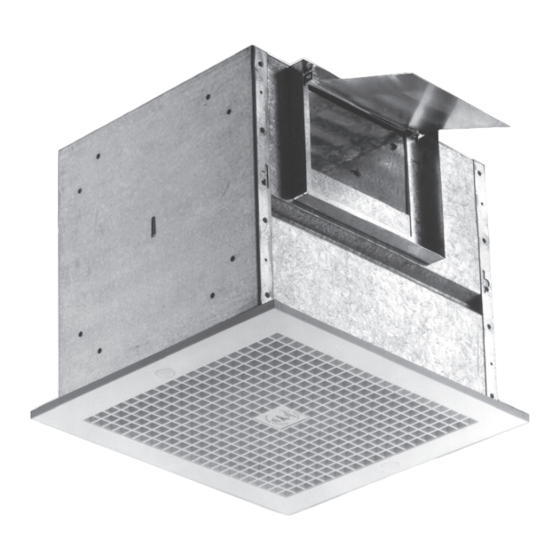

- Page 1 Ceiling and Inline Centrifugal Fans, CI-Series...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Certifications & Listings Features & Benefits Options & Accessories 10 Installation 11 Dimensional & Performance Data 17 Fan Curves 18 Engineering Specifications... -
Page 3: Introduction
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES INTRODUCTION Ceiling Inline Fans The CI model of ceiling exhaust fans operate quietyly. Some selections are available with sound ratings below 1 sone. There are 15 types of models that cover a wide range of performance. -
Page 4: Certifications & Listings
• Flow capacity up to 97 CFM. CERTIFICATIONS & LISTINGS AMCA Certification UL and cUL Certification YORK® by Johnson Controls certifies that the CI- CI-Series fans carry the UL label, UL705, Series models shown herein are licensed to bear (ZACT/ZACT7), file #E28413 and UL507, the AMCA Seal. -
Page 5: Features & Benefits
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES FEATURES & BENEFITS Low Sound Grilles For sound critical applications, S type fans delivers the lowest Constructed of attractive molded white plastic, aerodynamically sound ratings. All units feature acoustically insulated housings, designed grilles feature an 85% free area. To make for easy... -
Page 6: Options & Accessories
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES OPTIONS & ACCESSORIES Roof Caps Wall Caps These spun aluminum, rustproof, seamless vents provide a Inconspicuous, but efficient wall outlets for the CI-Series fans are discharge cap for flat roof mounting. Unobtrusive and furnished provided through the use of the Wall Cap. Architectural values with integral bird screen, they are designed for simple, safe are not diminished by this tastefully designed accessory. - Page 7 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES OPTIONS & ACCESSORIES Lek-Trol™ Speed Controllers 277 Volt Transformer To meet local requirements, 277V transformers are available for Lek-Trol™ Speed Controllers permit unlimited all CI-Series. The transformers are step-down and will step the air control. They use solid state “quadrac”...
- Page 8 Hanger vibration eliminators feature rubber-in-shear type and For areas where local codes require fire dampers for compliance are available for use with all units. with National Fire Protection Standard 90A, YORK® by Johnson Controls offers a UL approved damper, UL555C, (CABS), file 13/32”...
- Page 9 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES OPTIONS & ACCESSORIES Optional Steel Grille Inline Conversion (TDA) Kit When the design calls for a more Adapter panel with integral duct flange architecturally appealing grille, an optional allows conversion from ceiling fan (RA/TD) steel grille is available. It features an to inline fan (TDA).
-
Page 10: Installation
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES INSTALLATION... - Page 11 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES CI3 - CI12 | CEILING FANS • Some selections below one sone. • AMCA Air & Sound certified. • UL Listed for UL705 and UL507. • All motors with thermal overload protection. • Quick access wiring.
- Page 12 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES The TDA-RA configuration is shown. X and Y dimensions will remain the CI3 - CI12 (TDA) | CEILING FANS same for TDA-Inline configuration. • Some selections below one sone. • AMCA Air & Sound certified.
- Page 13 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES CI14 & CI15 | LARGE CAPACITY CEILING FANS • Quiet design with insulated housing. • Produces high volumes of air at low noise levels. • Versatile discharge orientations. • Easy installation in confined spaces.
- Page 14 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES CIT & CIJ | LOW PROFILE CEILING FANS • Quiet Operation: Low sone level, non-overloading low power consumption design. • Thermal overload protection integral with motor. • Rust resistant, durable housing of galvanized steel.
- Page 15 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES CIF | TRANSFER FAN • Fits easily between wall studs or ceiling joists. • Variable speed controller is built-in for individual comfort adjustment. • Attractive face grilles diffuses air evenly. • Moves up to 255 cubic feet of air every minute.
- Page 16 YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES CI1 | LOW FLOW CEILING FAN • 56 CFM @ 0.0” Ps. • Quiet-designed durable blower wheels. • Torsion spring grille mounting; no tools needed. 7 1/2” • Compact housings fit easily between wall studs.
-
Page 17: Fan Curves
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES FAN CURVES All CI-Series fan curves are based on laboratory tests conducted in accordance with AMCA standards. The curves shown below summarize the sizes and speeds of units available. RA Units TDA Units 0.600 0.600 0.550... -
Page 18: Engineering Specifications
YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES ENGINEERING SPECIFICATIONS CI3 - CI15 Model Transformer* Direct drive ceiling and cabinet fan shall CI = Ceiling Fan 0 = None be model CI, manufactured by YORK® by T = Transformer Johnson Controls. Unit Size Speed Controller... - Page 19 0 = None T = Square to Round Transition Top Discharge* 0 = None Direct drive axial room-to-room fan shall be model CIF, manufactured by YORK® by T = TDA Kit Factory Installed Johnson Controls. F = TDA Field Mount Fan housing shall be galvanized steel and shall include an adjustable sleeve to Vibration Isolation accommodate various wall thicknesses.
- Page 20 Please visit us at johnsoncontrols.com/hvac for more information. Printed on recycled paper. Johnson Controls, the Johnson Controls logo, YORK® and Heresite® are trademarks of Johnson Controls, Inc., or its affiliates, in the United States of American and/or other countries. ©2015 Johnson Controls, Inc., P.O. Box 423, Milwaukee, WI 53201...
