AMR Services for Renewable Metering
ASLH308 GPRS Modem Setup Guide

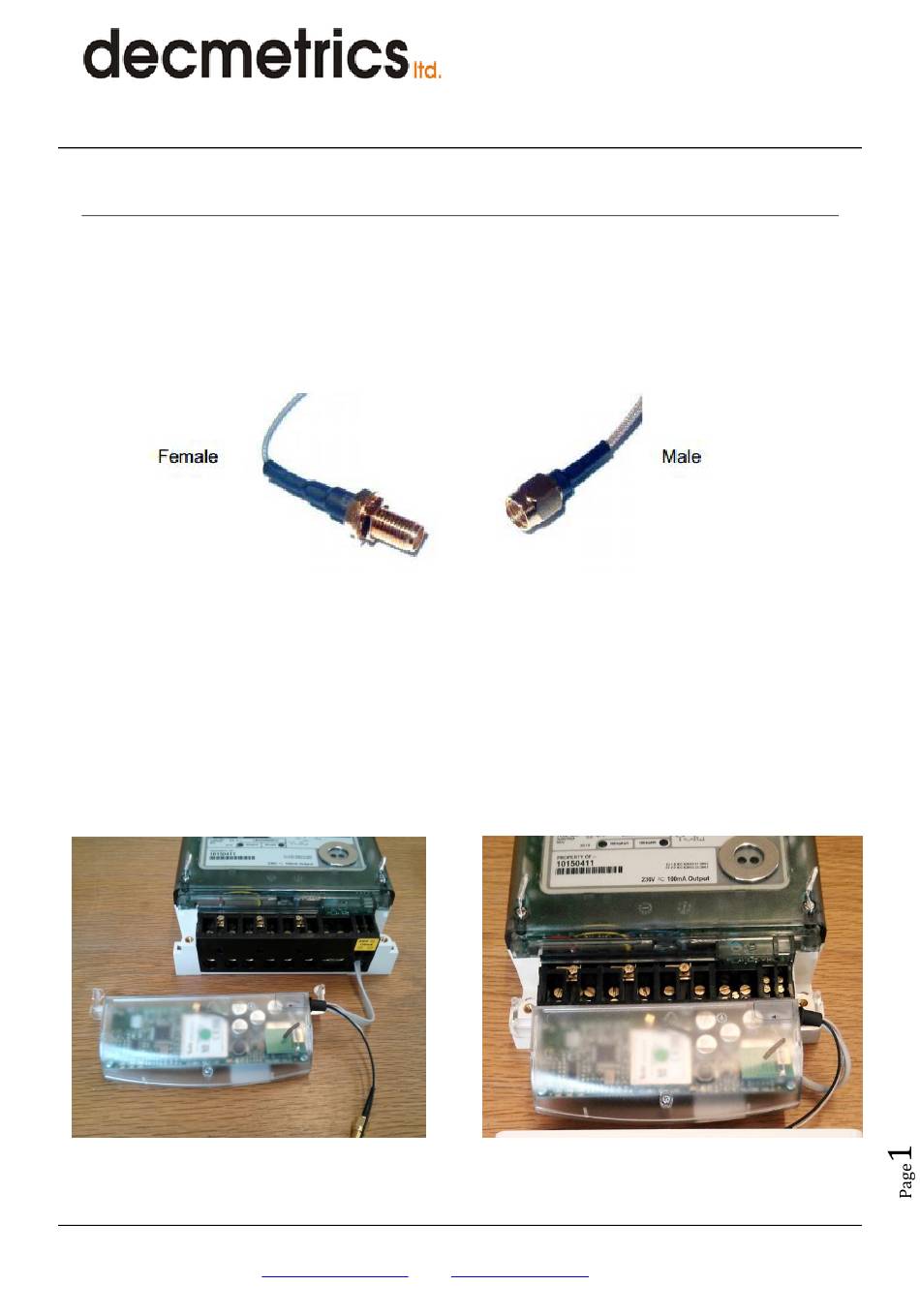

The ASLH308 is designed for Elster A1140 three phase electric meters. The unit has been designed for
easy installation and can be connected to the meter whilst powered up.

Preparing the modem

1. The ASLH308 has an internal antenna. This must be bridged to the modem by joining the two
SMA connector that come from the modem.

Installing an external antenna

If using an external booster antenna, connect the SMA connector from the external antenna to the
female SMA connector on the modem. Leave the male connector disconnected as it is no longer
needed.
2. Remove the outside terminal cover from the meter to access the RJ11 serial port.
3. Connect the RJ11 connector to the serial
port under the yellow label on the bottom-
right hand corner of the terminal block.
Thursday, 13 August 2015
DEC Metrics Ltd, Bronzeoak Business Centre, Bronzeoak House, Stafford Road, Caterham, Surrey, UK, CR3 6JG
Company Registration Number: 07865630 Vat Registration Number: 124 9033 33
Email:
sales@decmetrics.co.uk
Web:
4. The tabs on either side of the modem should slot
into the enclosures to hold it securely in place.
www.decmetrics.co.uk
Tel: 01883 460411
DEC Metrics Ltd
Bronzeoak Business Centre
Stafford Road
Caterham
Surrey
CR3 6JG
Tel: 01883 460411
Email: sales@decmetrics.co.uk
