- Page 1 Electrophoresis Power Supply EC-105 Operation and Maintenance Manual 7218471 Rev. 0 Visit us online to register your warranty www.thermoscientific.com/warranty...
- Page 2 Preface MANUAL NUMBER 7218471 5/2/12 Transfer to Marietta (was 157-3000-00-E) ECR/ECN DATE DESCRIPTION Thermo Scientific EC-105...
- Page 3 Thermo Fisher Scientific makes no representations or warranties with respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to the use of this manual. ©2011 Thermo Fisher Scientific. All rights reserved. EC-105 Thermo Scientific...
- Page 4 Always use the proper protective equipment (clothing, gloves, goggles, etc.) 4 Always dissipate extreme cold or heat and wear protective clothing. 4 Always follow good hygiene practices. 4 Each individual is responsible for his or her own safety. Thermo Scientific EC-105...
- Page 5 Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by telephone or fax. If you wish to write, our mailing address is: Thermo Fisher Scientific 401 Millcreek Road, Box 649 Marietta, OH 45750 International customers, please contact your local Thermo Scientific distributor. EC-105 Thermo Scientific...
-
Page 6: Table Of Contents
Technical Specifications ........4-2 Thermo Scientific EC-105... -
Page 8: General Information

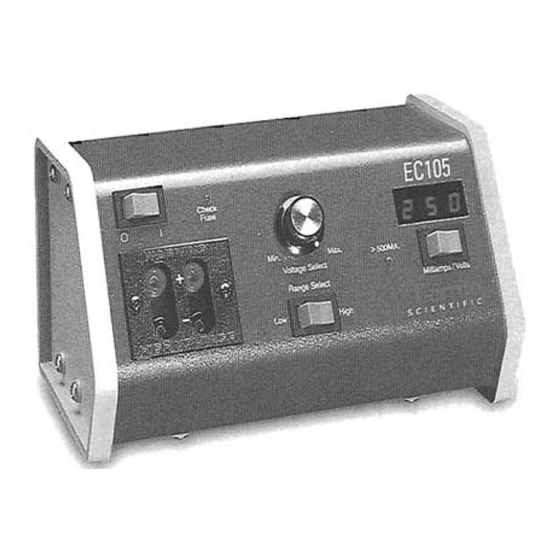

General Information Section 1 Figure 1-1. EC-105 Components 1. Main Power Switch 2. Check Fuse LED 3. Voltage Selec Control 4. Low / High Range Switch 5. Overcurrent LED 6. Volts / Milliamp Display Thermo Scientific EC-105... -
Page 9: Intended Use And Specifications
500 milliamps, and up to 75 watts in the constant voltage mode. • A single LED display provides output voltage or current readings. • Overcurrent protection is provided by audible and visual alarms and a single 1 amp slo blow fuse on the main circuit. EC-105 Thermo Scientific... -
Page 10: Set-Up
- No Earth - A Color Code different from the above - Reversible plugs - Supply and Return Leads that are both above Earth potential Thermo Scientific EC-105... - Page 11 Be sure to place the power supply in a safe, dry location with all the controls accessible. Connect to Cell and Mains Connect power supply to electrophoretic cell, then to the AC receptacle. EC-105 Thermo Scientific...
-
Page 12: Operation
This switch may be changed at any time without affecting the output. Disconnection When disconnecting the power supply from the electrophoretic cell, for any reason, first turn off the power switch and confirm that the red LED is no longer illuminated. Thermo Scientific EC-105... -
Page 14: Precautions And Service
Should this product become excessively warm, smoke, or display erratic information during operation, discontinue use immediately and contact a qualified service representative. Cleaning Use only mild, non-abrasive detergents. DO NOT use solvents or immerse in water, as this may cause permanent damage. Thermo Scientific EC-105... -
Page 15: Technical Specifications
1 Amp slo blow Temperature Range: 0°C -40°C (non-condensing atmosphere) Dimensions: 8" W x 6" D x 4.5" H (20.3 cm x 13.3 cm x 11.4 cm ) Weight: (net) 5 lbs (2.3 kg) Weight: (shipping) 7 lbs. (3.2 kg) EC-105 Thermo Scientific... - Page 16 Thermo Scientific EC-105...
