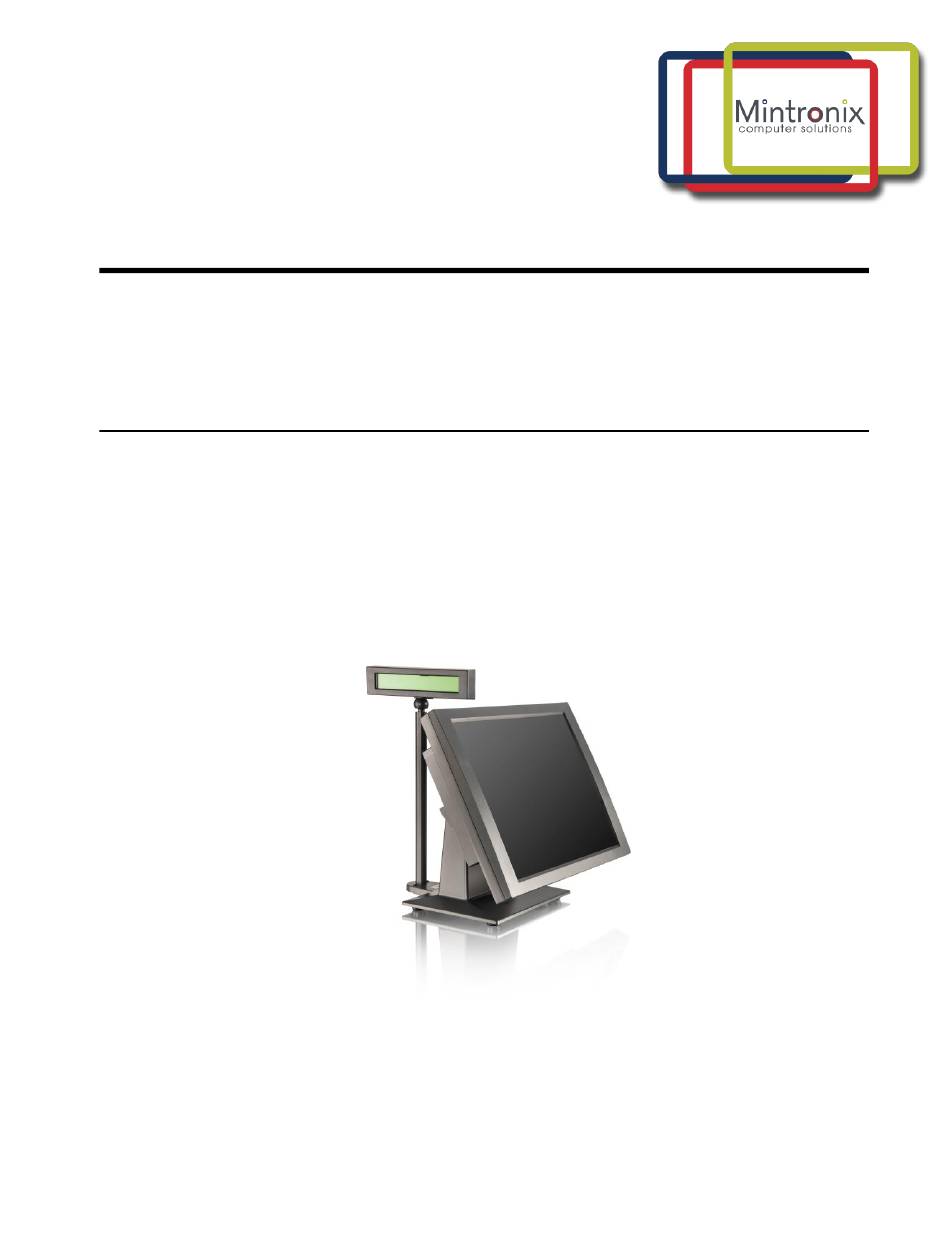

- Page 1 M I NT R O NI X C OM P UT E R S O L UT I O NS M P 5 0 0 0 I 2 A L L - I N - O N E T O U C H S C R E E N C O M P U T E R S Y S T E M User’s Guide 124 Old Mill Road, Suite H...
- Page 2 Furthermore, the original manufacturer assumes no liability arising from use of the products described herein. Working with the MP5000i2 computer involves hazardous levels of voltages and can present serious shock hazard. Work should only be performed by appropriately qualified technical personnel.
-
Page 3: Table Of Contents
M I NT R O NI X C OM P UT E R S O L UT I O NS Table of Contents Introduction Standard Features Input/Output Graphics Touch Screen Power Supply Environment Physical Dimensions Optional Accessories 10.0 Setup Installation 10.1 Unpacking 10.2... - Page 4 M I NT R O NI X C OM P UT E R S O L UT I O NS 24.0 Jumper Settings 24.1 How to Set Jumpers 24.2 Clear CMOS 25.0 Installing Software & Drivers 25.1 Operating Systems 25.2 Video Driver 25.3 Audio Driver...
-
Page 5: Introduction
M I NT R O NI X C OM P UT E R S O L UT I O NS 1.0 Introduction The All-in-One touch screen computer with adjustable viewing angle has the flexibility of a PC-based computer and architecture combined with advanced LCD and touch screen technology to form a low cost, small-sized computer that runs all PC-based software. -
Page 6: Graphics
M I NT R O NI X C OM P UT E R S O L UT I O NS 4.0 Graphics Display Controller Intel® mobile GMA3100 integrated graphic interface, up to 384 MB shared RAM Display Supports VGA/DVI and flat panel LCD dual displays 5.0 Touch Screen Touch Screen 5 wire resistive technology integrated USB controller,... -
Page 7: Optional Accessories
CCD miniature scanner 10.0 Set Up and Installation of the All-in-One 10.1 Unpacking. What you should have: ✓ MP5000i2 computer monitor base unit ✓ Screws to attach the base unit to the computer monitor ✓ Power adapter and power cord ✓... -
Page 8: Bios Introduction
M I NT R O NI X C OM P UT E R S O L UT I O NS Insert stand front tabs into slots on back of MP5000i2 Remove the screw on the center top of the MP5000i2 and use it to secure the stand to the computer ... -
Page 9: Bios Setup
M I NT R O NI X C OM P UT E R S O L UT I O NS 11.1 BIOS Setup The MP5000i2 system has AMI BIOS built in, with a CMOS SETUP utility that allows users to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS RAM of the motherboard. -
Page 10: Bios Operation
M I NT R O NI X C OM P UT E R S O L UT I O NS 11.3 BIOS Operation The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options cannot be configured; options in blue can. The right frame displays the key legend. -
Page 11: Advanced Bios Features
M I NT R O NI X C OM P UT E R S O L UT I O NS 11.4 Advanced BIOS Feature Select the “Advanced” tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. -
Page 12: Super I/O Configuration
M I NT R O NI X C OM P UT E R S O L UT I O NS AHCI Configuration is a new interface specification that allows the SATA controller driver to support advanced features. While entering setup, BIOS auto detects the presence of AHCI devices. -
Page 13: Advanced Acpi Configuration
M I NT R O NI X C OM P UT E R S O L UT I O NS 15.2 Advanced ACPI Configuration ACPI Version Features allows you to enable RSDP pointers to 64-bit fixed system description tables. [ ACPI v 3.0 ] ... -
Page 14: Advanced Pci/Pnp Settings
M I NT R O NI X C OM P UT E R S O L UT I O NS 18.0 Advanced PCI/PnP Settings Select the PCI/PnP tab from the AIMB-213 setup screen to enter the Plug and Play BIOS Setup screen. -
Page 15: Boot Settings
M I NT R O NI X C OM P UT E R S O L UT I O NS 19.0 Boot Settings Quick Boot allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system. [ Enabled ] ... -
Page 16: Chipset Configuration-North Bridge
M I NT R O NI X C OM P UT E R S O L UT I O NS 21.0 Chipset Configuration-North Bridge DRAM Frequency allows you to manually change DRAM frequency. [ Auto ] Configure DRAM Timing by SPD allows you to enable or disable detect by DRAM SPD. -
Page 17: Exit Configuration
M I NT R O NI X C OM P UT E R S O L UT I O NS HDA Controller - Enables or disables the HDA controller. [ Enabled ] SMBUS Controller - Enables or disables the SMBUS controller. [ Enabled ] ... -
Page 18: Jumper Settings
M I NT R O NI X C OM P UT E R S O L UT I O NS 24.0 Jumper Settings 24.1 How to Set Jumpers You can configure your motherboard to match the needs of your application by setting the jumpers. -
Page 19: Video Driver
LAN directory. 25.5 Touch Screen Driver The MP5000i2 has an ELO serial touch controller. A universal driver is included in the respective ELO touch directory. 25.6 Tuning the Touch Screen Under Windows If you wish to calibrate the touch screen while under Windows, go to “Control Panel”... -
Page 20: Initial Inspection
M I NT R O NI X C OM P UT E R S O L UT I O NS 26.1 Initial Inspection Oftentimes the simplest things can cause the most confusing errors. Always check the following: 1. The power cord is securely connected to both the AC outlet and your Panel Touch. -
Page 21: Standard Irq Settings
M I NT R O NI X C OM P UT E R S O L UT I O NS 27.0 Standard IRQ Settings Priority Standard Functions System Timer Keyboard Controller Redirect to IRQ#9 IRQ Holder for PCI Steering* Communications Port (COM1)* IRQ Holder for PCI Steering Floppy Disk Controller Printer Port (LPT)*... -
Page 22: Changing Configuration
To enter the setting mode: Connect keyboard to your MP5000i2 computer. Run .MSR213U setting AP Follow instructions on the screen to change settings 28.3 Optional 2x20 LCD Character Display... -
Page 23: Communication Settings
M I NT R O NI X C OM P UT E R S O L UT I O NS 29.0 Communications Settings: 9600,N,8,1, COMx 29.1 Character Codes 124 Old Mill Road, Suite H Greenville, SC 29607 855-672-6464 Version 1-2018 Page 23...
