Summary of Contents for DMG LUMIERE WDMX DRIVER

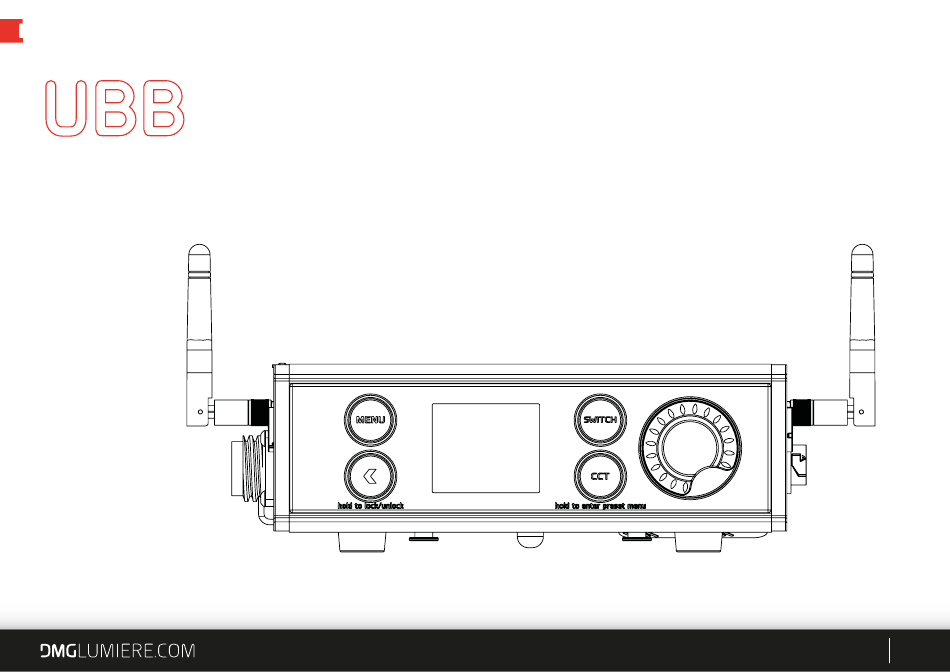

- Page 1 UBB USER MANUAL What is the UBB? DC driver for SL1 Switch or Mini Switch • 12 to 35VDC input • Wired and Wireless DMX (Lumen Radio) • Wi-Fi (ArtNet) / Ethernet • Upgradable firmware via USB • DMG | User Manual - UBB...
- Page 2 UBB USER MANUAL 10. Attachement for shoulder 17. 8 pins connector for SL1 Switch 1. Menu 5. Dimmer button strap • Go to the general menu • Press to change intensity or CCT 18. 4 pins connector for Mini Switch •...
- Page 3 UBB USER MANUAL Wireless DMX MODE: Control the UBB remotely with the Wireless DMX protocol. Connect the UBB to a power source (DMG EPS, DMG Battery mount or any 12 to 30VDC power supply) Make sure the Wireless DMX antenna is intalled •...
- Page 4 UBB USER MANUAL CUSTOM MODE (Following) (...) Wi-Fi dot is red when no signal is received, green when the UBB is connected to a Wi-Fi device with an Art-Net app enabled. UPGRADING THE UBB : Download the firmware from the DMG Lumière website: •...
- Page 5 UBB/MAXI CT USAGE EXAMPLE Light 1 Light 2 Light console DMG Lumière lights or any DMX enabled light Light 1 Light 2 DMG Lumière lights or any DMX enabled light DMG Lumière lights or any Wireless DMX enabled light Our wireless DMX is compatible with any powered devices.
