Summary of Contents for Ralcam RA350M

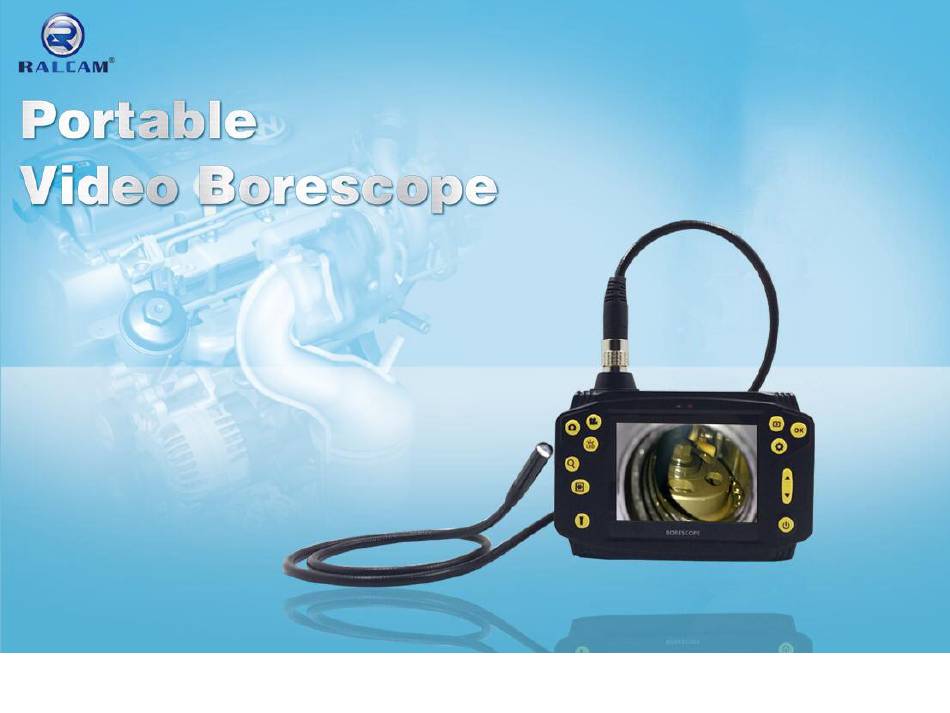

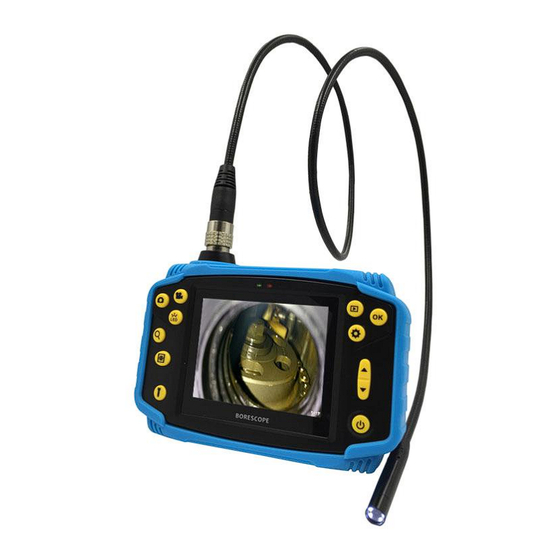

- Page 2 Portable Video Borescope User Manual Model:RA350M The new RA350M is a rugged, waterproof Video borescope featuring user-friendly, ambidextrous handset controls that help you easily maneuver the narrow camera probe into extremely tight spaces to uncover hidden problems.View clear video and images on the durable 3.5 inch color LCD display that is easy...
-
Page 3: Specifications
Specifications Monitor Contents: Screen Size： 3.5’’ TFT LCD Monitor • Digital Endoscope Video resolution: AVI (640x480) • Plastic Stand Photo resolution: JPEG (640x480) • Protection Cover Frame Rotation: 180° Rotation & Mirror image • User’s Manual freeze frame: • Probe (φ8.5mm or φ5.5mm) Zoom: 4x Variable Digital Zoom •... -
Page 4: Appearance Introduction
Appearance Introduction TF-Card TV-out Mini USB Reset Preview/ Playback Setting Down/Image Rotation Power On/Off... -
Page 5: Operation Function
Operation Function 1. Inserting Micro SD card Uncover the dust cover at right side and insert the Micro SD card, Please choose branded C4 above Micro SD card and format the card before using. 2.Switch borescope on/off Press power button for 2 seconds to turn it on/off 3.How to take photo and record videos Taking photo: Press photo button to take photo, photos will be saved in DICM files of Micro SD card. -
Page 6: Maintenance
WARNING! Please read all safety warnings and all instructions before using this product.Failure to follow the warning and instructions may result in electric shock,fire and serious injury. Safty: •Keep the tool dry,clean,free from oil,water,gas or other materials causing corrosion. •Keep work area clean and well lit. •This appliance is not intended for use by persons with limited physical,sensory or mental capablilities. - Page 7 Battery Warning: 1.standard input voltage must be 5V/1A. 2.Defective or used batteries must be recycled according to the guideline 2006/66/EEC. In air: -10 to 50°C Probe Operating temperature In water: 5 to 50°C Console In air: -10 to 50°C Relative humidity All parts 15 to 90% Liquid resistance...
- Page 8 SHENZHEN RALCAM GROUP CO., LTD BANGU TECHNOLOGY DEVELOPMENT CO.,LTD Tel: +86-755-29642049 Fax: +86-755-21634119 Website: http://www.ralcam.com http://www.szralcam.1688.com Add: 3/F,B4 Bld,An'le Industrial Zone,Hangcheng Road,Xixiang Town,Baoan Area,Shenzhen City,China...
