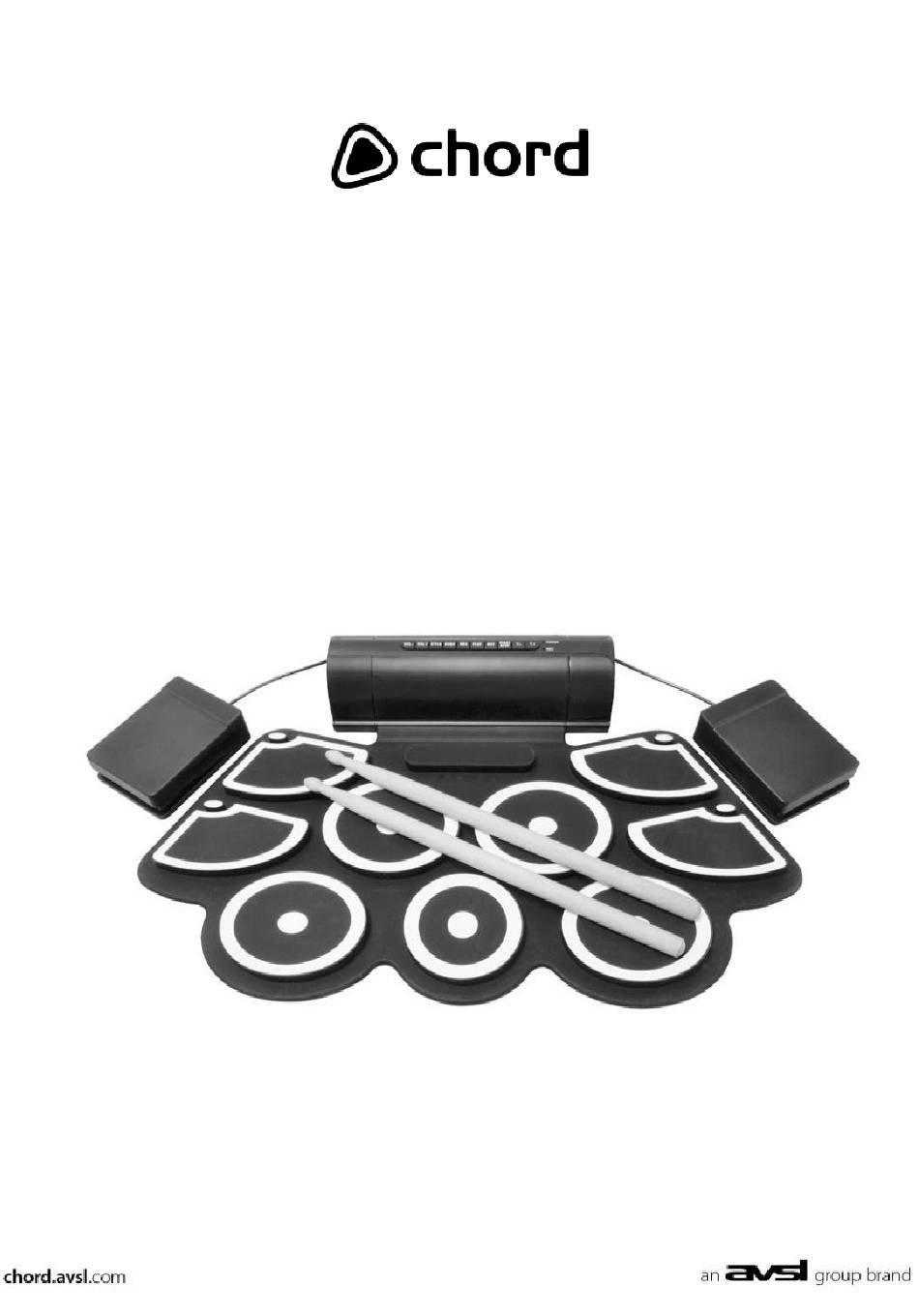

- Page 1 Item ref: 169.030UK D-MAT Electronic Drum Kit User Manual Version 1.0...
- Page 2 Please read and keep this manual for future reference. Setup and Connections Position the D-MAT onto a solid and stable surface, such as a table or worktop, placing the foot pedals under each foot on the floor. Playing is possible when standing but more convenient if seated.
-
Page 3: Control Panel
Control Panel Volume down Play accompaniment Volume up Start/Stop playback Drum kit style (7 types) Tempo down Play demo songs Tempo up Press to record Power LED Play back recording Record LED Pads Layout 169.030UK User Manual... - Page 4 Operation Using the drum sticks provided, once powered up, the pads on the D-MAT can be struck or hit to produce the specific sound. The output level is controlled by the VOL+/- buttons (6, 7). 2 foot pedals supplied with the D-MAT allow remote triggering of...
- Page 5 For practice, it is also possible to record a pattern on the D-MAT and then play the recording back. Press the REC button (10) and the Record LED will light. At this time, any hits on the D-MAT pads will be recorded to memory.
-
Page 6: Specifications
Specifications Power supply 5Vdc USB (lead included) USB interface USB micro for MIDI output to PC/Mac Trigger 5 x drums, 4 x cymbals, 2 x foot pedals Auxiliary input 3.5mm stereo jack (for mp3/CD) Headphone out 3.5mm stereo jack Internal programs 7 x styles (drum kit sound sets) Vol+/-, Style, Demo, Rec, Play, Rhy, Controls...
