Summary of Contents for Ellard Spider

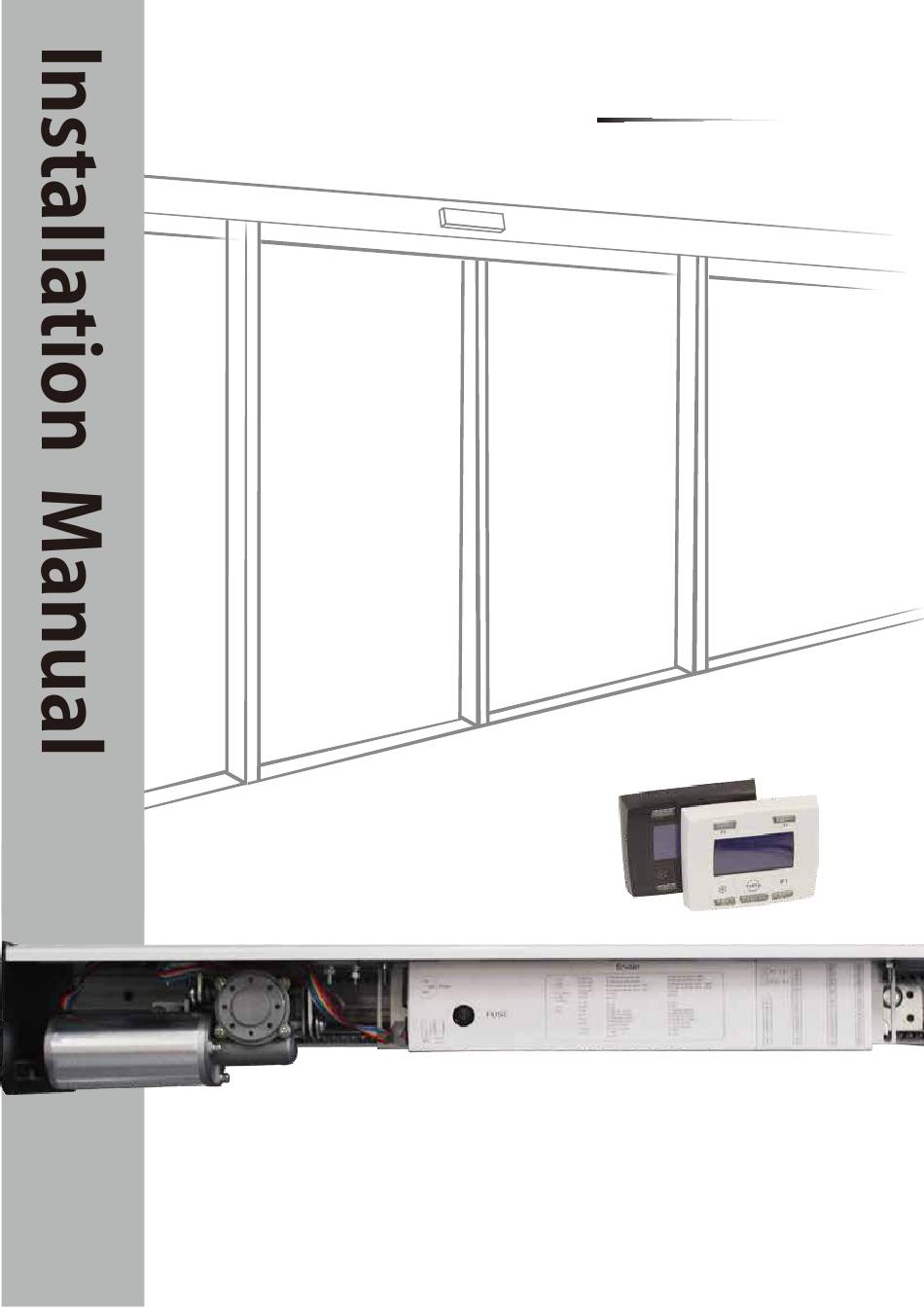

- Page 1 Spider Ellard Ltd 19-10-2018...
- Page 2 Installation of the automatic door should be completed by an appointed distributer or professional installation personnel. Installation must be performed by professional installation personnel according to local legislation and standards. Refer to this manual for maintenance purposes. This equipment has been conformed to the protection requirements of the following directives: 2006/95/EEC( Low Voltage Directive) LVD 89-336 EEC (Electromagnetic Compatibility) EMC...
-
Page 3: Table Of Contents
Spider Web (Function Selector)…………………………………………... 22-23 Spider Web (Data Adjuster)……………………………………………….. 23-25 Spider Web (Password Setting)…………………………………………... 25-26 Spider Web (Production Date)……………………………………………. 27 Spider Web (Working Times) …………………………………………….. 27 Spider Web (Battery Back Up Status)…………………………………… 28 Spider Web (Language Setting)………………………………………….. 28 Description of Operation………………………………………………..29 Troubleshooting……………………………………………………………. 30-31... -
Page 4: Safety Precautions
Safety Precautions Safety Precautions Safety Precausions Safety Precautions The contents and categories a user must abide by are presented and described by the following graphic expressions. Warning Misuse may cause injury even death to the operator. Caution Misuse may cause injury or physical loss to the operator. Prohibited actions. - Page 5 Caution Never use the door in a place which is subject to dampness, vibration or corrosive gas, as this may result in accidents such as fire, electric shocks or loose components. To prevent finger traps allow a space of >25mm between the fully opened door edge and upright column.
-
Page 6: Components Of Mechanism
Components of mechanism Components of Mechanism Name of components Idler pulley Belt Belt connector Belt connector Controller Hanger Stopper Motor Hanger Stopper Spider web... -
Page 7: Sectional View Of Track And Cover
Sectional view of track and cover Sectional View of Track and Cover Sectional view Caution: This view is not in a scale of 1:1. 20mm (nominal ref) 'h' = door height 5mm (nominal ref) gap between bottom of door and floor guide... -
Page 8: Installation Process
Installation process Installation Process Preparation Foundation work Main frame installation Power supply wiring Automatic door installation Front (frame) assembly and installation Installation of components of mechanism Hanging the door leaves Connection of power supply Inspection after installation Adjustment of operation Inspection after adjustment of operation Description of operation to user... -
Page 9: Product Features
Easy access terminals to allow connection of full range of accesories Monitored battery backup with optional opening programs, working times, limit setting Monitored saftety sensor inputs Door working cycle memory Specifications Spider Single-opening Door leaf mode Double-opening Door leaf weight Max 200kg... -
Page 10: Components List
Components List Components List Quantity Description Schematic diagram Single-leaf Double-leaves Motor Controller Spider web Idler pulley Hanger Belt connector Stopper Toothed Belt Fastenings Installation Manual... -
Page 11: Recommended Tools
Recommended Tools Recommended Tools 10/13mm 10mm Adjustment of hanger Adjustment of Hanger +/-Y... -
Page 12: Track Cutting And Installation
Track's cutting and installation Track Cutting and Installation Installation 2.Frameless door 1.Frame door Frame guider Glass guider... -
Page 13: Component Positions - Left Opening
Components' position(left opening) Component Positions for Left Opening... -
Page 14: Component Positions - Right Opening
Components' position(right opening) Component Positions for Right Opening... -
Page 15: Component Positions - Bi - Partition
Components' position (bipartition) Componen Positions for Bi-patition... -
Page 16: Installation Of Motor, Controller And Idler Pulley
Installation of motor Installation of Motor 1. Place the square-head bolts into channel 2. Fix the motor as shown. Installation of controller Installation of Controller 1. Place square-head bolts into channel. 2. Fix it as shown. 3. For specific installation position please refer to page 3. -
Page 17: Adjustment Of Idler Pulley
Adjustment of idler pulley Adjustment of Idler Pulley 1. Loosen the 4(x) fastening bolts, then wind the adjusting screw clockwise or anti-clockwise 2. Place the belt on pulley and tighten the adjusting bolt to give the correct tension. 3. Tighten the 4(x) fastening bolt to secure . Fastening bolt Adjusting plate Adjusting bolt... -
Page 18: Lock And Release (Optional)
Lock and release (Optional) Lock and Release (Optional) Refer to manual prior to application, 1. Check component according to manual 2. Check the lock working condition and refer to circuit diagram before installing to door system Operational principle: Power on -release Power off -lock Working Voltage: 12V dc Main components : 1. -
Page 19: Lock And Release(Optional)
Lock and release(Optional) Lock and release(Optional) Lock and Release (Optional) Installation of interior manual release Wirerope Fit the Wirerope into the manual release according to picture Adjust the angle of the manual release according to picture, Secure the Wirerope by tightening the M5 screw Fit the Wirerope from this position Black 1. -
Page 20: Installation Of Sensor
Installation of sensor Installation of Sensor The sensor should be installed at the center of the door leaf. The max installing height of sensor is 3m. Connection of motor,controller and power switch INPUT AC100-250V... -
Page 21: Terminal Details Of Controller
Terminal details of controller Terminal Details of Controller FUSE 23.Self-test presence (left) - 9.Half open 39.Self-test presence (right) - 10.Full open 24.Self-test presence (left) + 40.Self-test presence (right) + 2.Lock+ 11.Exit only 25.Presence sensor active（left）- 41.Presence sensor active（right）- 3.+12V 42.Presence sensor active（right）+ 12.Full lock 26.Presence sensor active（left）+ 4.Fire alarm... - Page 22 Function key switch(FC08) Morning enter switch N/O Contact 15 +24V 16 GND Black 17 RX Green Yellow 18 TX 19 Null Spider web 20 Null 21 NC Emergency stop Break out switch 22 COM Interlock Interlock Interlock Interlock 12 Lock...
-
Page 23: Connection And Wiring
Connection and wiring Connection and Wiring HOTRON Side Screen Safety - Left 23 Test- Brown Brown 24 Test+ Grey Grey power supply HOTRON Yellow 25 COM Blue Blue active/test output 26 Side Yellow SSR3 - 3H Black 27 GND test input Black 28 +24V... - Page 24 Connection and wiring Safety Precautions Connection and Wiring Non monitored sensors Inside Activation Photocell and Threshold Safety power supply 45 Null 46 Null output safety 47 Test- 48 Test+ 49 SAF- Active sensor MS04 50 SAF+ 51 ACT- Yellow active output 52 ACT+ Green Black...
-
Page 25: Spider Web (Function Selector)
Spider Web (Function Selector) Spider web (function selector) The Parameters of the controller can only be adjusted by SPIDER WEB. The SPIDER WEB is a duel control unit, it works both as : 1) A function selector 2) Data adjuster Function selector button / confirm button. -
Page 26: Spider Web (Function Selector)
⑦ Spider Web (data adjuster) Spider Web (Data Adjuster) Press button "SET" more then 8 seconds, SPIDER WEB become to data adjuster. Data setting Working times Code setting Battery usage Language Production date... - Page 27 Spider web (data adjuster) Spider Web (Data Adjuster) Data setting: press button F2 and to select code no. P01 to P25. There are 25 items can be setted as customer requested. And press OPENING button F1 and F3 to set the value of each code.
-
Page 28: Spider Web (Data Adjuster)
(data adjuster) Spider Web (Data Adjuster) 00-01 Photocell signal (00：NO，01：NC) 00-01 Opening direction (00：right opening，01：left opening ) 00-01 Door working mode (00：normal working，01：toggle working) （00：closed by remote or swich 00-01 Aux lock way 01：auto lock each time when closed） 00-01... -
Page 29: Spider Web(Password Setting)
Spider Web(Password setting) Spider Web (Password Setting) 4.Active password setting: “OFF” “ON” PASSWORD EXIT CODE 5.Press “OFF”, return to password setting 6.press “ON”,enter new password NEW PASSWORD 123456 EXIT 7 .Enter new password again NEW PASSWORD AGAIN 123456 EXIT 8.New password setting is done NEW PASSWORD RIGHT 9 .Press SET exit the password... -
Page 30: Spider Web (Production Date)
Spider Web(production date） Spider Web (Production Date) CODE DATE 1.Select Date mode 2.Press SET enter the date mode 3.Date display Year 4.Press SET exit date mode EXIT Spider Web(Working times) Spider Web (Working Times) CODE 1.Select Operate times setting mode 2.Press SET to check operate times... -
Page 31: Spider Web (Battery Back Up Status)
Spider Web(Battery backup status) Spider Web (Battery Back up Status) CODE 1.Select Back up battery status mode 2.Press SET to check the battery status 3.Battery status display Battery Voltage 4.Press SET to exit battery status mode 24.6V EXIT Spider Web(Language setting) -
Page 32: Description Of Operation
Description of operation Description of Operation 1.Power on, the mechanism start to self-learning. The door will open and close to find the opening and closing position. 2.The mechanism’s working steps are as following: Sensor working open slowly open fast slow down stop keep opening close slowly... - Page 33 Trouble shooting Troubleshooting Causes Troubles shooting Remedy Symptoms Check the data of opening Opening or closing Adjust the opening or and closing speed. speed is set too slow closing speed. Any damager or loosen at Too much resistance Fix the parts strongly. Door leaves open hangers, floor guide or when no power.
- Page 34 Trouble shooting Troubleshooting Remedy Symptoms Causes Troubles shooting Remote control is Press automatic button Check working on remote Any object at the detect area Remove the object Microwave is working Check the detect area without object Change the microwave to cause mistake working sensor Door does not close Check the surface of receiver...
