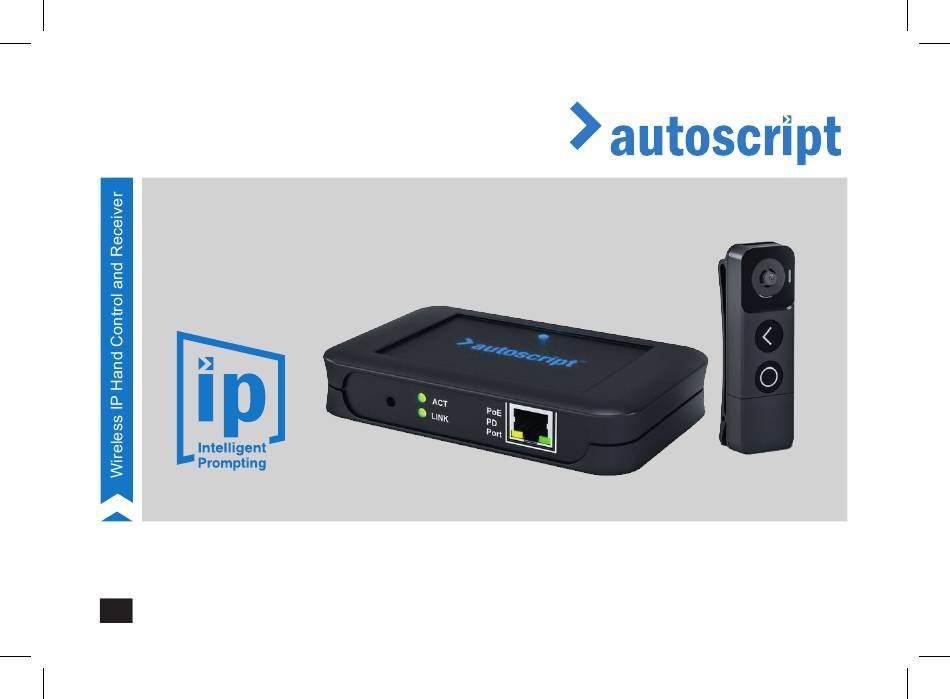

- Page 1 User Guide User Guide Wireless IP Hand Control and Receiver WHC-IP - WHC-REC www.autoscript.tv...
- Page 2 Copyright © 2018 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Contents Safety.......... . 2 Maintenance ........10 Electrical Connection .. -
Page 4: Safety
Safety Important information on the safe installation and operation of this product. Read this information before operating the product. For your personal safety, read these instructions. Do not operate the product if you do not understand how to use it safely. Save these instructions for future reference. -
Page 5: Mounting And Installation
Safety Mounting and Installation WARNING! Always ensure that all cables are routed so that they do not present any danger to personnel. Take care when routing cables in areas where robotic equipment is in use. Water, Moisture and Dust WARNING! Protect the product from water, moisture and dust. The presence of electricity near water can be dangerous. -
Page 6: Components And Connections
Components and Connections A9009-0006 Wireless IP Hand Control Receiver RJ45. Powered over Ethernet Requires 3rd party PoE injector or XBox-IP (not included) Data LED Link LED Factory Reset Status LED... -
Page 7: Wireless Ip Hand Control
Components and Connections A9009-0005 Wireless IP Hand Control Power / Sleep Button Status LED Joystick Button 1 Button 2 Battery Cover Battery Saver Tab... -
Page 8: Box Contents
Components and Connections Box Contents A9009-0006 Box Contents A9009-0005 WHC-REC A9009-0006 WHC-IP A9009-0005 Quick Start Guide... -
Page 9: Installation
Installation Powering Up A9009-0006 The receiver is automatically powered up when the PoE Ethernet cable Cat5 or Cat6 cable is attached. Requires 3rd party PoE injector or XBox-IP (A9009-0001 not included) Status LED Flashing Blue: Powered and in pairing mode Solid Blue: Powered and paired with WHC-IP Powering Up A9009-0005... -
Page 10: Operation
Operation Make sure the WHC-REC and WHC-IP are • Button 2: Short Press: next marker both powered on. The status light on both • Button 2: Long press: enter pairing mode devices will flash. To put the WHC-IP into sleep mode press and The WHC-REC and WHC-IP will pair in a hold the button on the top of the device for 2 range of up to 30 Feet in line of sight. - Page 11 Operation Recommended positioning: Multiple receivers Use multiple receivers as shown below to help eliminate areas where the signal is low. Line of sight Maximum range 30 Feet. (Obstructions will reduce the signal range) 30 ft Max. line of sight...
-
Page 12: Maintenance
Maintenance Routine Maintenance The WHC-IP and WHC-REC require minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check PoE Ethernet cable for signs of wear or damage. Replace as necessary. •... -
Page 13: Technical Specification
Technical Specification WHC-IP (A9009-0005) Previous Marker, Next Marker, Top of Run Order, Prompt On / Off, Function Button Operations Blank Screen. Note! Addition functions will be added in subsequent (Assignable in WinPlus-IP) WP-IP releases Status Display Illuminated Wireless Connection / Pairing Power 2 x CR1620 3V lithium Coin Cell Batteries (Included) Weight... -
Page 14: Troubleshooting
Troubleshooting Fault Check WHC-REC The WHC-REC is not Check that the power over Ethernet source has a suitable power powering up injector Check that the cable from the PoE source is firmly locked into the PoE input on the WHC-REC Check that a quality Cat5 or Cat6 cable has been used to connect to the PoE injector The WHC-REC is... - Page 15 Troubleshooting Fault Check WHC-IP The WHC-IP is not Check that the correct batteries have been used (CR1620 3V) powering up Check the batteries are fitted correctly Replace the batteries (average battery life is 9hrs constant use) Check that the battery saver has been removed completely Check that the WHC-IP is not in sleep mode by pressing any button on the device The WHC-IP is powered...
-
Page 16: General Notices
General Notices FCC Certification FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Declaration of Conformity This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This product may not cause harmful interference. - Page 17 General Notices Declaration of Conformity Environmental considerations European Union Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) Vitec Production Solutions Limited declares This symbol marked on the product or its packaging that this product has been manufactured in indicates that this product must not be disposed of accordance with BS EN ISO 9001:2008.
- Page 20 Publication No. A9009-4984/0 For assistance you can contact Progl+Gerlach. +49 (0)89 43 509 712 or kontakt@progl-gerlach.de www.autoscript.tv www.progl-gerlach.de...
