BCS VH-1250 User Manual

User manual camerasystem VH-1250

Pairing the wireless zoom pedal with the monitor:

To wireless pair the zoom pedal with the monitor press and hold the "Learn" button on the
back of the monitor, and then press the "Zoom tele" button on the zoom pedal. Now
release the button on the back of the monitor. The zoom pedal is now wireless paired with
the monitor.
In case of low battery voltage or interference with other wireless signals the zoom pedal
can be connected with the supplied cable. Connect the cable to the back of the zoom
pedal and to the back of the monitor in the "Remote" input.

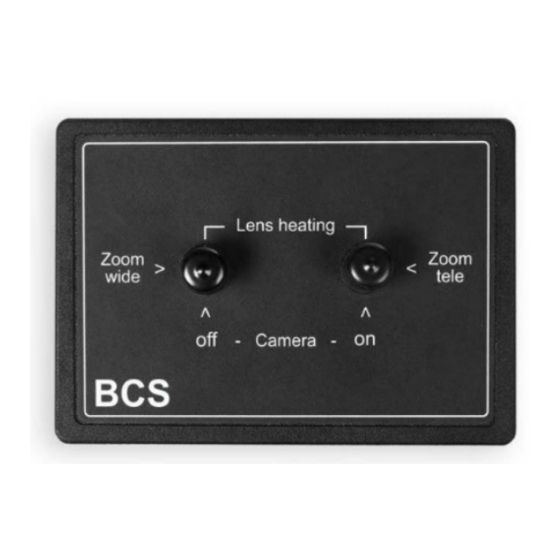

Zoom:

To zoom in use the "Zoom tele" button. To zoom out use the "Zoom wide" button.

Lens-heating:

To activate the lens-heating press and hold both "Zoom wide" and "Zoom tele" buttons for
5 seconds. The green LED on the camera will now flash slow. After 5 minutes the lens-
heating is automatically turned OFF.
The last 3 digits of the camera's serial number is the camera ID. To change the camera ID in
the receiver press and hold the DOWN button until the arrow switches to the second line.
Now use the UP and DOWN buttons to change the camera ID to the desired number.
When done, wait for 5 seconds until the arrow switched back to the first line.

Important:

– The camera system will automatically shut down after 10 hours. Use the "Zoom tele" button
on the zoom pedal to turn the camera system back on.
– The battery is charged by the solar panel, no external charging is needed.
– Regularly clean the lens of the camera for a optimal image.
– Always keep the solar panel free from snow.

Turning the camera on:

Press the "Zoom tele" button for 2 seconds. The green
LED on the camera and the monitor are now ON.

Turning the camera off:

Press and hold the "Zoom wide" button for 10 seconds.
The green LED on the camera and the monitor are now
OFF.

Changing video channels:

There are 7 video channels to be used. To change the video
channel use the white UP and DOWN buttons on the receiver.

Position of the receiver:

For a perfect image and reception, mount the receiver as good
as possible in line of sight with the camera.
Chaning the camera unit ID:
Kosmonaut 7, 3824 MK Amersfoort (NL)
Office: +31 33 466 8938
WhatsApp: +31 6 1595 6105
Web: www.cranecamera.eu
E-mail: info@cranecamera.eu
