Simonton Inovo Installation Instructions

Inovo Top Hung Screen
®
Installation Instructions
1.

Remove Screen Stop

(a screwdriver is recommended) Insert tip of
screwdriver in open end of screen stop and rotate
downward (Fig 1). NOTE: If the door is assembled,
the stop will be installed. If the door frame is not
assembled and the screen stop is packaged in the
handle box, proceed to Step 2.
2.

Install Rollers on Track

a) Align the screen top rollers with the two openings
in the top of the roller track. Use the exterior
screws as a guide. (Fig 2 & 3).
b) Insert the top of the screen into the frame as far
as possible (Fig 4).
c) At the same time, swing the bottom of the
screen outward and slide the screen over to the
center of the door.
d) Next, use your finger or a putty knife to push
up the bottom roller wheel (Fig 5), while positioning
the screen so the roller can fully engage on the sill.
Position the roller wheels onto the sill track, making
sure both ends are fully aligned. (Fig 6)
e) Once aligned, roll the screen to ensure both
roller wheels remain engaged.
3.

Install or Replace Screen Stop

a) Place the screen stop in the head at the end of
the screen roller track (Fig 7).
b) Screen stop should be fully seated into the
head. Push stop fully into the jamb to allow for
maximum screen opening.
c) Stop will need to be removed prior to
screen removal.
Simonton.com/installation

Tools Needed

Safety Glasses Marker
7/64" Drill Bit
Drill

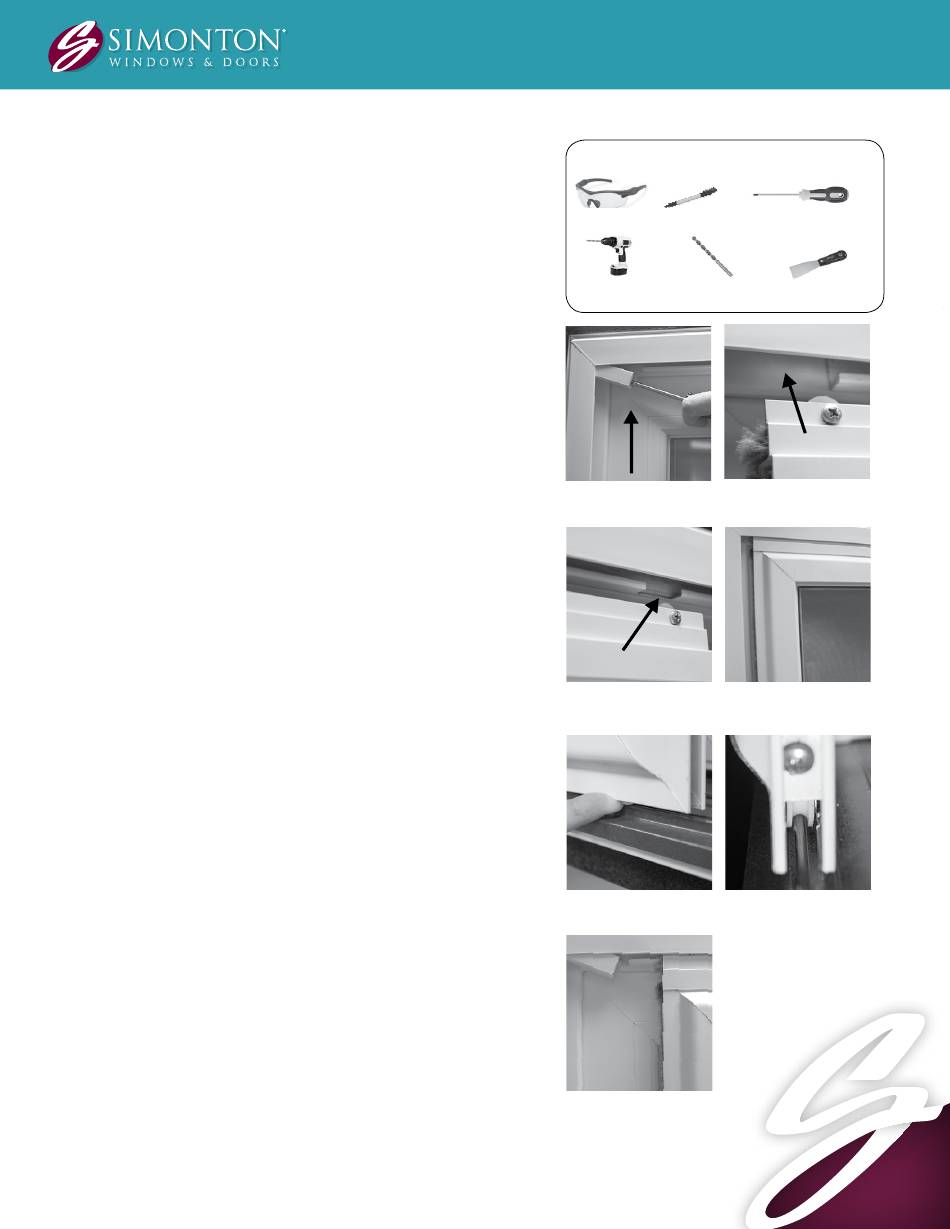

Figure 1 Figure 2
Center of Door
Figure 3 Figure 4
Figure 5 Figure 6
Figure 7
Effective Date: 4/24/17
#2 Phillips Screwdriver
Putty Knife
End of Door
1
