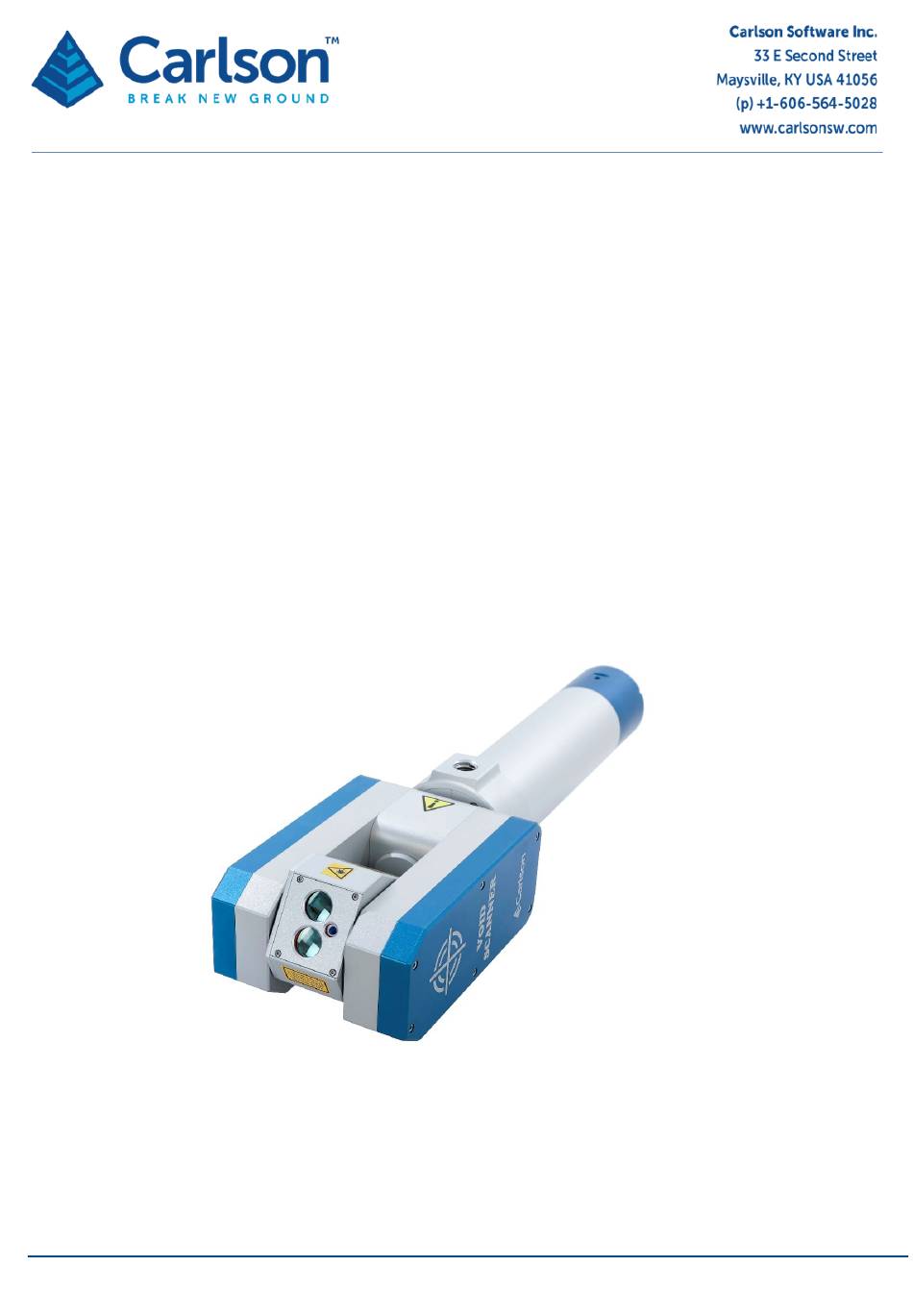

- Page 1 Void Scanner underground void surveying system user manual Void Scanner user manual H-5914-8501-03-A September 2018...
-
Page 3: Table Of Contents
Customer information ..................................... 4 Dear customer ..................................... 4 User manual ....................................4 Laser safety ......................................5 Void Scanner laser module with red dot laser pointer ........................5 Void Scanner system ..................................... 6 System overview ..................................6 Void Scanner hardware ..................................7 Void Scanner Probe .................................. -
Page 4: Customer Information
1.1 Dear customer The Void Scanner system is designed to be easy to operate. However, we would ask you to take the time to read these operating instructions carefully before using the system, and to keep the manual with the instrument at all times. -
Page 5: Laser Safety
2.1 Void Scanner laser module with red dot laser pointer The laser classification of the Void Scanner is a Class 2M laser product in compliance with the British and European standards for the safety of laser products BS EN 60825-1: 2007. -
Page 6: Void Scanner System
The Void Scanner is just one of many laser systems that have been designed by Carlson. Other products such as the C-ALS (Cavity Auto-scanning Laser System), Quarryman and Boretrak have all been proved over many years of demanding use around the world. -
Page 7: Void Scanner Hardware
Figure 2 Component parts of the Void Scanner The Void Scanner instrument consists of a laser module held between two pivots within a yoke. The yoke itself is held on the end of the horizontal housing. The laser module houses the optical and electronic components that allow distance measurements to be recorded to reflectorless targets up to 150 m from the instrument. - Page 8 Figure 3 The Void Scanner laser module The combination of the two axes of rotation gives the Void Scanner a view encompassing 360° horizontal and 270° vertical rotations respectively. The yoke itself prevents the laser from viewing a 90° sector of the vertical rotational sweep.
- Page 9 Main cable connected to probe Boom adaptor Figure 4 Connector port location with boom adaptor 5/8 in thread M6 x 1 thread for prism for prism Figure 5 Threaded hole locations for choice of prism mounting location P a g e | 9...
-
Page 10: Interface Box
5/8 in thread for adaptor Figure 6 Threaded hole locations on the underside of the Void Scanner used for the supplied boom adaptor or other mounting devices and booms 4.2 Interface box The Void Scanner unit is supplied with an interface box. This box acts as a power/data splitter. -
Page 11: Data Cable
The interface box is not required if the optional Wi-Fi box is used. See section 4.10. 4.3 Data cable The Void Scanner is operated and controlled via a PC or handheld device operating Cavity Profiler – VS software. A cable is supplied to connect the PC to the interface box or to the battery pack. -
Page 12: Battery Pack
4.4 Battery pack The Void Scanner requires a 12 Vdc power source to operate. A dedicated 12 Vdc battery pack is supplied with the system. The sealed lead acid battery pack is rated to 7 Ah, and will allow continuous operation for up to six hours before recharging, depending upon the type of operations conducted. -
Page 13: Alternative External Power Connections
4.5 Alternative external power connections As well as the supplied battery pack, the Void Scanner may be powered from any 12 Vdc battery using the blue cable supplied. This cable incorporates two crocodile clips with which to connect to the positive (red) and negative (black) terminals of the battery. -
Page 14: Boom Adaptor And Spigot
4.7 Boom adaptor and spigot A boom adaptor is supplied to allow the Void Scanner probe to be deployed on various platforms, e.g. a boom or standard survey tripod. The boom adaptor is in two parts: the main bracket and a separate cylindrical spigot. -
Page 15: Prisms
A surveyor can target the prism on the Void Scanner to establish the position of the unit. A second prism may be attached to the far end of the deployment boom. Shooting to both prisms will then give the azimuth of the deployment. -
Page 16: Void Scanner Wi-Fi Box
Void Scanner Wi-Fi box negates the need for a separate battery pack, power cable, data cable and interface box. The Void Scanner Wi-Fi box can be used to allow personnel to retreat further from the scanner. The unit may also be attached to the probe boom that is extended into the unsafe area, or placed on an unmanned vehicle that is remotely driven into the unsafe area. -
Page 17: Booms And Deployment Devices
4.11 Booms and deployment devices The Void Scanner is designed to be deployed on a boom for surveys of stopes and inaccessible areas. Carlson can offer a standard boom as an optional accessory with the unit. Alternatively, many users design their own boom or other deployment device to suit their specific operational and site requirements. - Page 18 Figure 19 Void Scanner probe and boom adaptor dimensions P a g e | 18...
-
Page 19: Maintenance And Care Of The Void Scanner
In addition, you should carry out regular functional testing of the system. Detect and report damage, malfunctions or poor performance to Carlson or a local Carlson representative. Arrange a yearly calibration for your Void Scanner system to ensure that it is kept in optimum condition and to ensure the highest possible quality of data. -
Page 20: Storage And Transportation
If the instrument remains unused for several weeks, it is advisable to remove power sources from the instrument. Store within the environmental temperature limits of -25° C to +70° C. Before transporting the Void Scanner system, pack the equipment correctly in the supplied transit case. Secure the transit case to prevent the possibility of shock or vibration. -
Page 21: Cavity Profiler - Vs Software
6 Cavity Profiler – VS software The control and processing software for the Void Scanner is known as Cavity Profiler – VS. Cavity Profiler – VS enables the Void Scanner to be controlled remotely during field operations. It allows real-time viewing of collected data, analysis and editing of all datasets, the integration of further scans and the exporting of data to third-party packages. -
Page 22: Void Scanner Specifications
7 Void Scanner Specifications Laser module Laser classification BS EN 60825-1:2007 Class 2M* (21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser No. 50, dated 24 June 2007) Infrared laser module Type InGaAs laser diode Wavelength (typ) 905 nm Maximum energy per pulse 1.06 μJ... - Page 23 Physical Weight Dimensions Probe (including batteries) 3.2 kg 710 mm × 40 mm (L × Dia) Rods (individual) 400 g 1000 mm × 30 mm (L × Dia) PDA (including batteries) 280 g 155 mm × 83 mm × 24 mm (L × W ×...
-
Page 24: Product Information
Carlson system, the equipment remains safe. - Page 25 Information to the user (47CFR section 15.21) The user is cautioned that any changes or modifications not expressly approved by Carlson or authorised representative could void the user’s authority to operate the equipment. Information to the user (47CFR section 15.105) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 26 The use of this symbol on Carlson products and/or accompanying documentation indicates that the product should not be mixed with general household waste upon disposal. It is the responsibility of the end user to dispose of this product at a designated collection point for waste electrical and electronic equipment (WEEE) to enable reuse or recycling.
