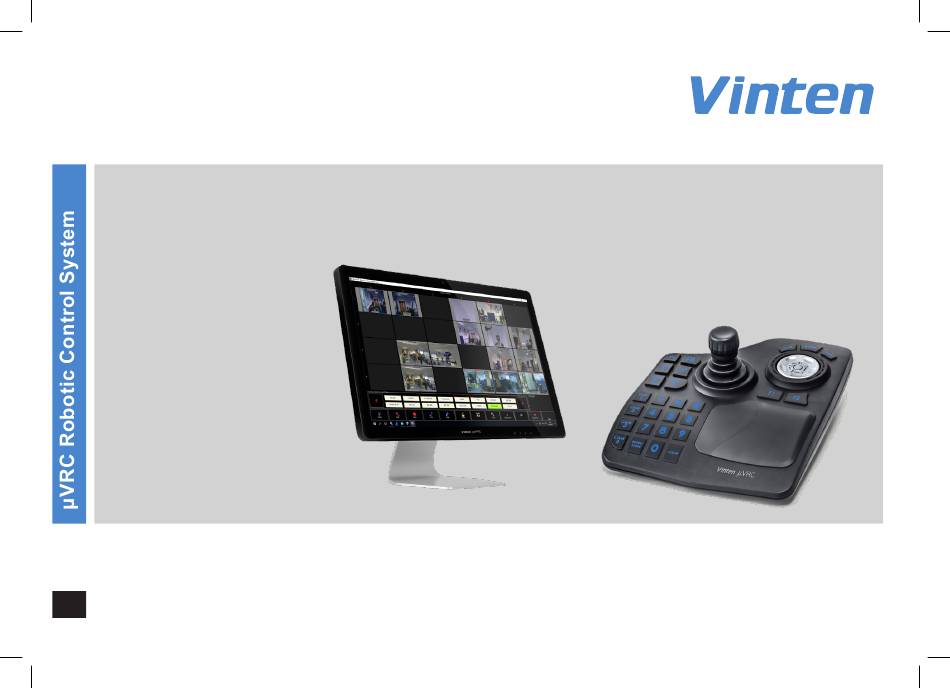

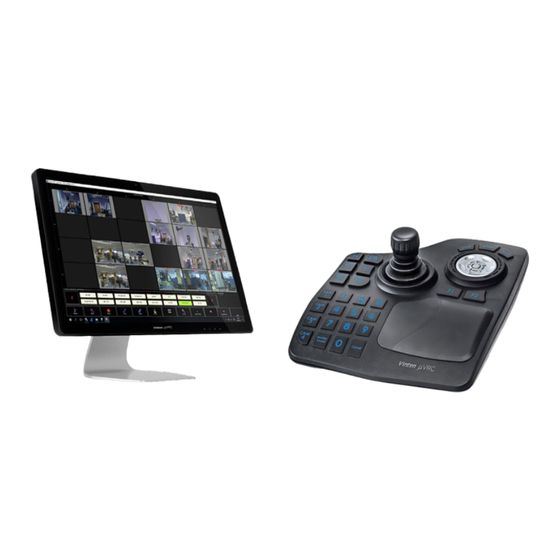

- Page 1 User Guide μVRC Robotic Control System Part No. V4063-0010 www.vinten.com...
- Page 2 Copyright © 2018 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Contents Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About this User Guide . -
Page 4: Safety
Safety Electrical Connection Important Safety Information WARNING! Risk of electric shock . Always disconnect and Important information on the safe installation and operation of isolate the product from the power supply before attempting this product . Read this information before operating the product . any servicing or removing the covers. -
Page 5: About This User Guide
Safety and About this User Guide Maintenance About this User Guide WARNING! The fitting of non-approved parts or accessories, This user guide covers the installation and basic operation of the or the carrying out of non-approved alterations or servicing hardware components of the μVRC robotic control system. can be dangerous and could affect the safety of the product. -
Page 6: Box Contents
Box Contents μVRC computer Joystick panel μVRC power supply USB connecting cable Power cable (x3) User guide NI - Not Illustrated... -
Page 7: Μvrc Computer Components And Connections
μVRC Computer Components and Connections Touch-screen interface Adjustable stand Power button Power socket Network port USB3 ports VESA mounting holes (X4)* USB 2 ports * For more information on the VESA mount, see Technical Specifications on page 12. -
Page 8: Joystick Panel Controls And Connections
Joystick Panel Controls and Connections Main joystick control Shot control keys Focus controls Shift function keys Hand rest pad Camera selection keys USB port... -
Page 9: System And Power Connections
Connecting the μVRC System and Power Connections µVRC Computer µVRC Power Supply The μVRC system is easily connected together. Robotic cameras are connected using standard Ethernet connections. Use a powered Ethernet switch to expand the number of connections available to suit your system requirements. The control panel is connected and powered with the supplied USB lead. -
Page 10: Starting And Using The Μvrc
Starting and Using the μVRC Powering Up Launching the VRC System Application When all connections in the μVRC system have been made, the When the μVRC computer has booted up, the VRC system μVRC computer can be powered up. application must be installed, configured and launched before robotic cameras can be controlled. -
Page 11: Using The Μvrc
Using the μVRC Camera shot control keys (fade/stop/cut) Function keys Numeric keypad (not currently used) Camera selection keys* X4 key (zoom proportional) Camera selection shift key* (provides access to cameras 9 to 16) *The number of cameras available for selection is dependent on the system license. -
Page 12: Joystick Camera Controls
Using the μVRC Joystick Camera Controls The joystick panel provides the best way to smoothly control camera movement and adjustments. Control functions can be reversed in the VRC application configuration to suit a users preferences. Pan axis control Tilt axis control Zoom control Course focus control Fine focus control... -
Page 13: Maintenance
Maintenance The μVRC computer and panel require minimal routine maintenance, apart from regular cleaning and routine checks. Routine checks During use, check the following daily: • Check cables for signs of wear or damage. Replace as necessary. • Check that all cables are connected properly. Cleaning WARNING! Risk of electric shock . -
Page 14: Technical Specifications
Technical Specifications μVRC PC Controller Joystick Panel Physical Data Physical Data Height Height 369 mm (14 .5 in .) 111 mm (4 .4 in .) Length Length 539 mm (21 .2 in .) 279 mm (11 in .) Width Width 83 mm (3 .3 in .) 228 mm (9 in .) Touch-screen Display Panel... - Page 16 Publication No. V063-4981/1 www.vinten.com...
