Summary of Contents for Suntree Technologies Curb Inlet Basket

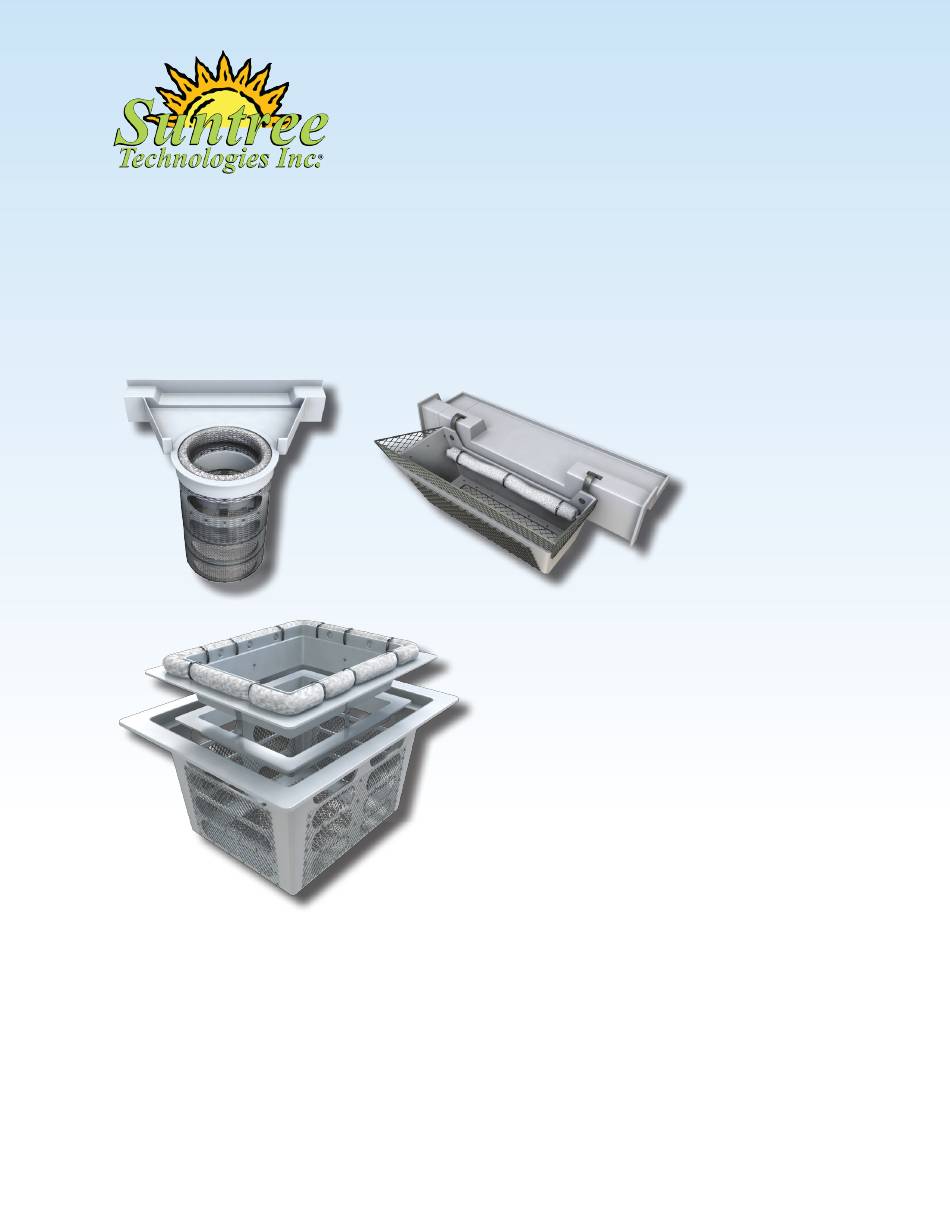

- Page 1 Inlet Filters | Catch Basin Inserts Operation and Maintenance Manual Version 1.0 ® Suntree Technologies, Inc 798 Clearlake Road, Suite 2 Cocoa Florida 32922 321.637.7552 www.suntreetech.com info@suntreetech.com...
-
Page 2: Table Of Contents
Table of Contents Warning pg 03 Curb Inlet Basket™ Information pg 04 Curb Inlet Basket™ Operation pg 05 Curb Inlet Basket™ Maintenance pg 06 Grate Inlet Skimmer Box™ Information pg 07 GISB™ Specifications pg 08 GISB™ Operation pg 09 GISB™ Maintenance pg 10 StormBoom™... -
Page 3: Warning
Suntree Technologies, Inc® Grate Inlet Skimmer Box™, High Capacity Curb Inlet Basket™ and Standard Capacity Curb Inlet Basket™ while reviewing the aspects of existing regulations and safety procedures. It is the responsibility of all personnel to familiarize themselves with, understand and comply with all applicable local, state and federal laws before attempting to inspect or service this unit. -
Page 4: Curb Inlet Basket™ Information
• Will not impede design flow of the inlet. • Removes more than 80% of total suspended solids. • The High Capacity Curb Inlet Basket is able to retain hundreds of pounds of debris and sediment. • Screens of different sieve sizes optimize filtration and flow. -
Page 5: Curb Inlet Basket™ Operation
Curb Inlet Basket™ Operation Operation Summary The Curb Inlet Basket™ (CIB™) and High Capacity Curb Inlet Basket™ (HCCIB™) are unique for their “Shelf System” which directs stormwater flow into the filter positioned directly under the access manhole. The Shelf System can be manufactured to any size and style of catch basin. -
Page 6: Curb Inlet Basket™ Maintenance
Attach new StormBoom™ to skimmer tray with zip ties. • Replace filtration basket and replace manhole cover. The shelf system allows for easy access to each Curb Inlet Basket™ for manual servicing. Inlet Filters | Catch Basin Inserts Operation and Maintenance Manual... -
Page 7: Grate Inlet Skimmer Box™ Information
Grate Inlet Skimmer Box™ (GISB™) General Information The Grate Inlet Skimmer Box™ (GISB™) is a specialized inlet filter used specifically for grated catch basins. The unit is made of marine grade fiberglass and stainless steel to ensure longevity and durability. During a storm event, all incoming stormwater passes through the internal skimmer tray and into contact with a hydrocarbon absorption boom. -
Page 8: Gisb™ Specifications
GISB™ Specifications Common Size GISB™ Flow Rate Specifications The maximum flow rate of the Grate Inlet Skimmer Box™ is determined by the amount of flow that can pass through the throat, the exception is found only in very large units. For instance, if the potential flow through the throat is less than the potential flow through the bypass, then the throat determines the maximum flow. -
Page 9: Gisb™ Operation
GISB™ Operation Operation Summary Stormwater enters the inlet through the grate and passes through the StormBoom™ installed around the basket top. Throughout the storm event, water continues to come in contact with the StormBoom™ and then flows into the lower filtration chamber. As the storm intensity increases, the water level in the GISB™... -
Page 10: Gisb™ Maintenance
GISB™ Maintenance Maintenance Summary The Grate Inlet Skimmer Box™ is recommended to be inspected and serviced quarterly. However, site conditions can affect the service interval to be either longer or shorter than the quarterly recommendation. The maximum flow capacity of the Grate Inlet Skimmer Box™ will be restored after each servicing. -
Page 11: Stormboom™ Media
StormBoom™ Media Hydrocarbon Absorption Booms Suntree Technologies Inc.® manufactures various media based StormBooms™ designed to filter a variety of pollutants. There are four types of media that StormBooms™ can be made of including: • Type 1: Hydrophobic Treated Cellulose is a wide... -
Page 12: Warranty
(5) years from the date of purchase. In the event a warranty claim is made and determined to be valid, Suntree Technologies will replace or repair the product at their own discretion. Warranty claims must be submitted, evaluated and approved by Suntree Technologies for the claim to be determined valid. -
Page 13: Notes
Notes Inlet Filters | Catch Basin Inserts Operation and Maintenance Manual... -
Page 14: Contact Information
Contact General Inquires For additional information concerning general usage, maintenance products, warranties or replacement parts please contact: Suntree Technologies Inc.® 798 Clearlake Road, Suite 2 Cocoa, Florida 32922 Phone: 321.637.7552 Fax: 321.637.7554 Web: www.suntreetech.com Email: info@suntreetech.com Visit our website for in depth information...
