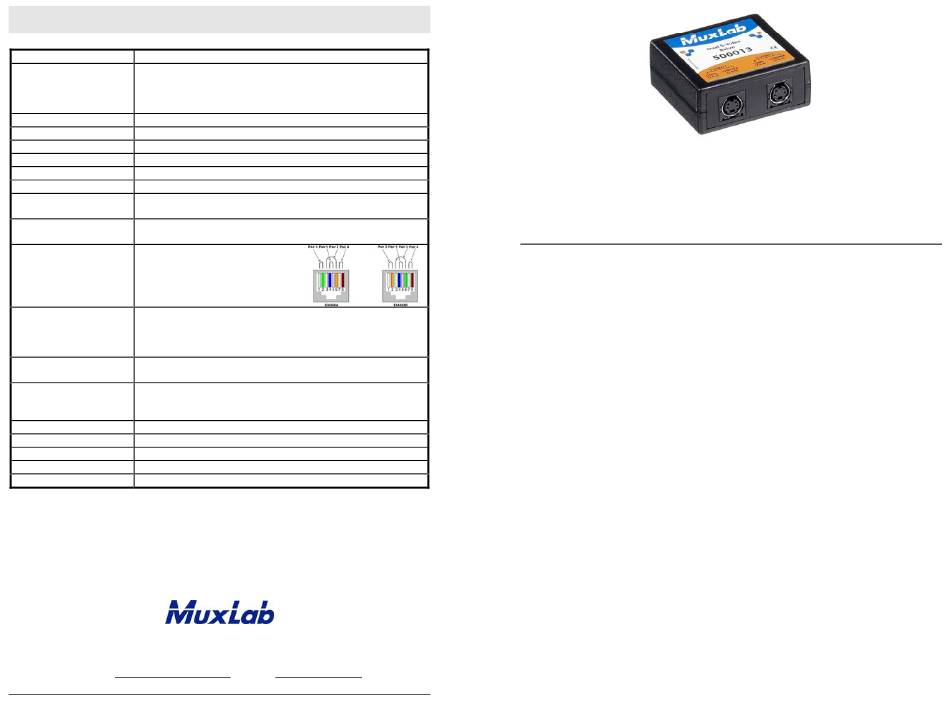

MaxLab 500013 Installation Manual

Specifications

Environment S-Video equipment
Devices DVD players, VCR, satellite receivers, MPEG players, laptops,
notebooks, monitors, LCD projectors, CCD cameras, video switchers,
sequencers, digital video servers, video multiplexers, S-Video splitters,
S-Video converters and other S-Video equipment.
Transmission Transparent to the user
Bandwidth DC to 6 MHz
Impedance 75 ohms
Maximum Input 1.1 Vp-p
Less than 2 dB per pair over the frequency range from DC to 6 MHz
Insertion Loss
Return Loss Better than 15 dB over the frequency range
Common Mode Rejection Greater than 40 dB over the frequency range
Ratio (CMRR)
Max. Distance via 1,000 ft (305 m)
Cat 5E/6 UTP/STP Cable
Pin Configuration (RJ45) S-Video Luma1:
EIA 568 A or B S-Video Chroma1: Pins 3(R) & 6(T)
S-Video Luma2:
S-Video Chroma2: Pins 4(R) & 5(T)
Reverse Polarity Sensitive
Cable: 24 AWG or lower solid copper twisted pair wire
Cat 5E/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors Two (2) 4-pin Mini DIN jacks for S-Video
One (1) RJ45 for Cat 5E/6 UTP cable
Operating: 0º to 55ºC
Temperature
Storage: -20º to 85ºC
Humidity: Up to 95% non-condensing
Fire retardant plastic, UL94-V0
Enclosure
Dimensions 2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm)
Weight 1.8 oz (51 g)
Warranty Lifetime
Order Information 500013 Dual S-Video Balun
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Pins 1(R) & 2(T)
Pins 7(R) & 8(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000635-B SE-000635-B
Dual S-Video Balun
500013
Quick Installation Guide
Overview
The Dual S-Video Balun allows up to two (2) S-Video signals to be transmitted via an
unshielded twisted pair (UTP) cable up to 1,000 ft (305 m) in a point-to-point
connection. The Dual S-Video Balun fully utilizes the Cat 5E/6 cable and works in
conjunction with MuxLab rack, wall and surface mounting accessories for more cost
efficient cabling.
