NIICD TDFM-9000 Quick Reference Guide
October 13, 2017

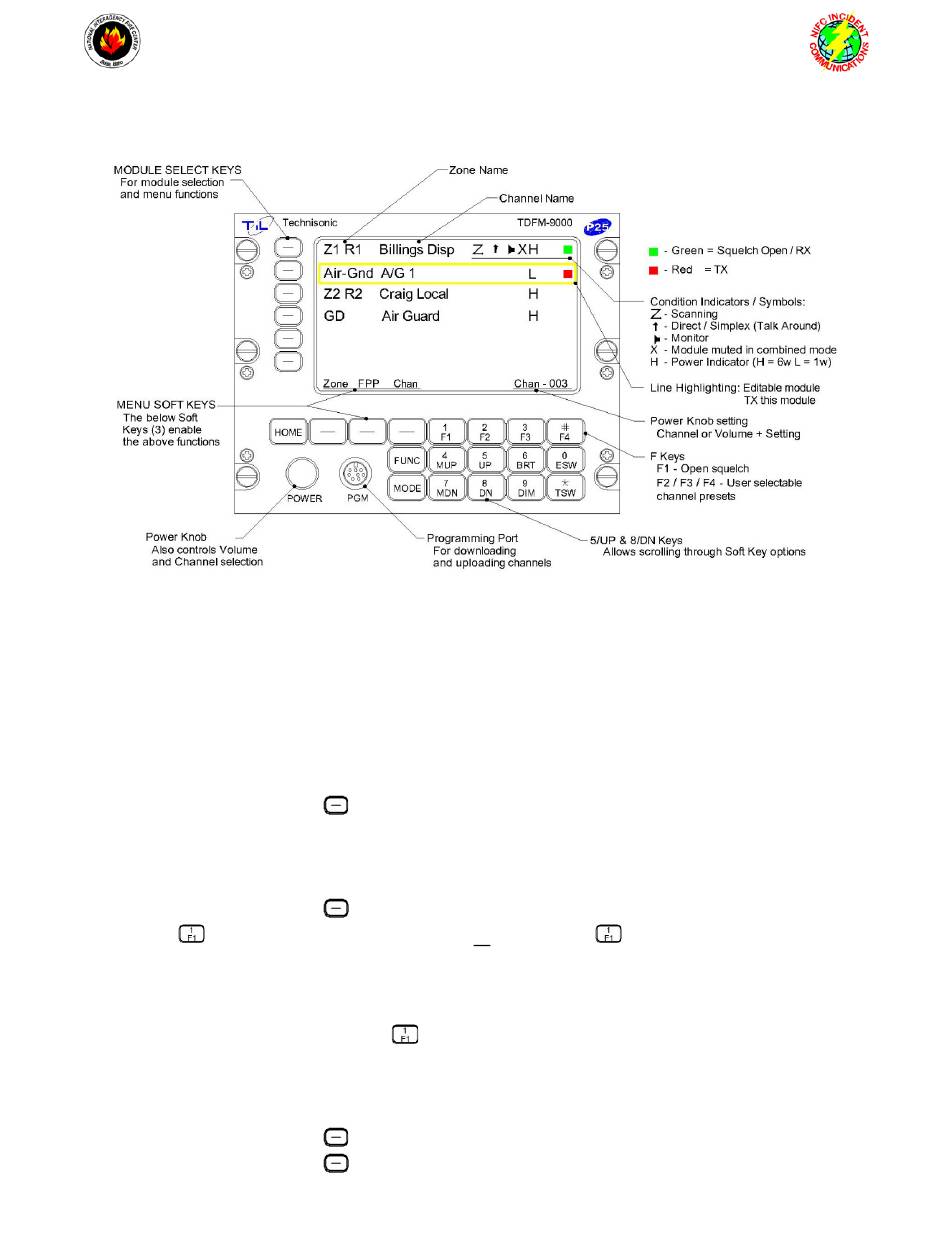

TDFM-9000 series radio buttons have multiple configuration options depending on how they are setup
during initial programming using Motorola's CPS software. The NIICD TDFM-9000 Quick Reference
Guide only applies to TDFM-9000 radios configured using a NIICD codeplug.
Turn Radio On or Off
1. Press & hold the POWER knob.
Select A Radio for Transmission
1. Press the Module Select
Adjust Radio Volume
Note: Each radio's volume is individually set.
1. Press the Module Select
2. Press (1/F1) key (opens radio's squelch) or press & hold
squelch remain open (a short beep is heard).
3. Briefly press the POWER knob until "Vol-xx" is displayed in the lower right corner of the display.
4. Rotate the POWER knob for desired level.
5. If radio squelch is still open press
Muting a Radio
Note: Each radio's volume can be individually muted when the radio is set to combined mode.
1. Press the Module Select
2. Press the Module Select
module.
Softkey to place a box around the desired module.
Softkey to place a box around the desired module.
(1/F1) key again to close it.
Softkey to place a box around the desired module.
Softkey a second time to mute that band. An "X" appears on that
(1/F1) key for 2 seconds to have
