Summary of Contents for ConvergeAV ST1218T

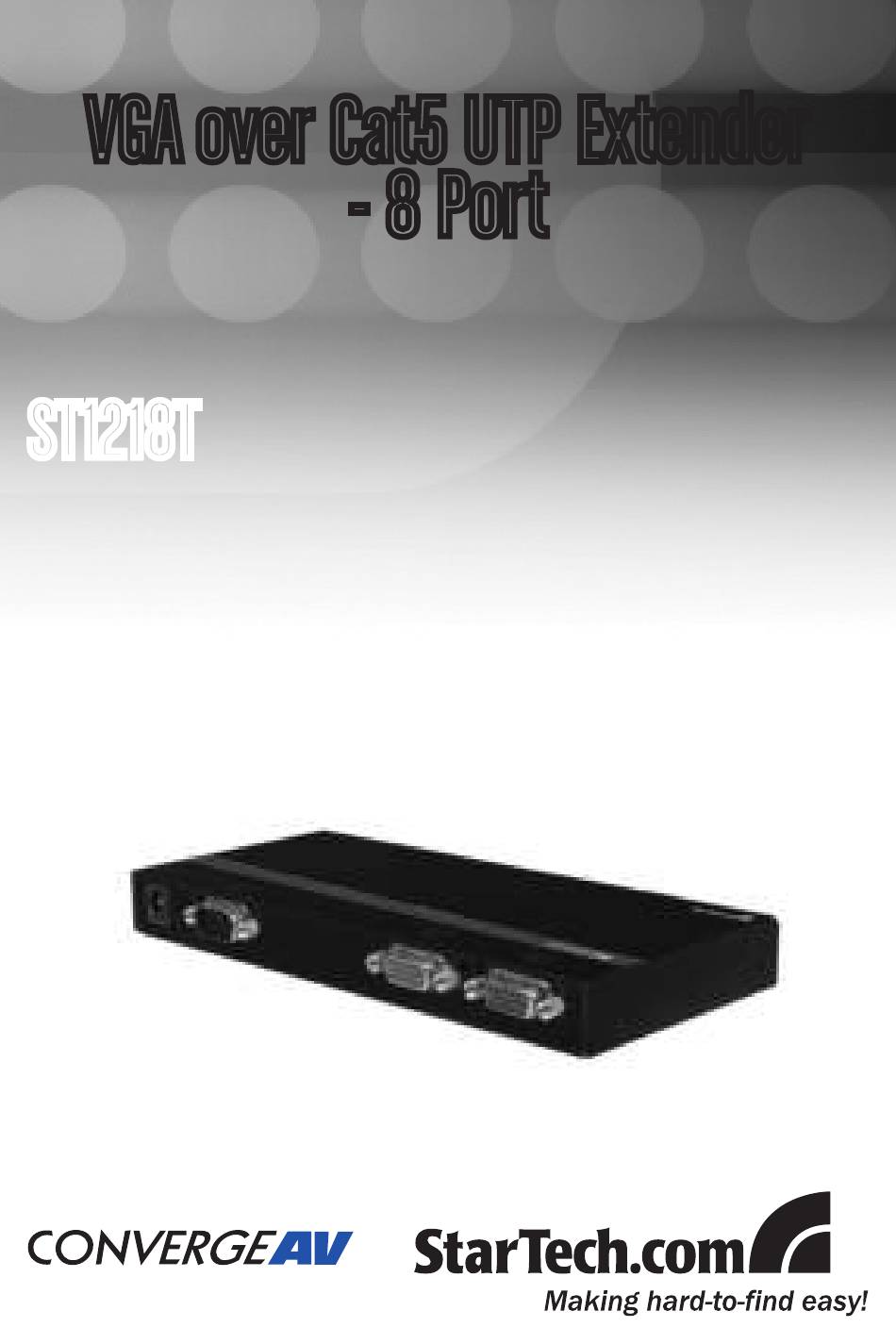

- Page 1 VGA over Cat5 UTP Extender - 8 Port ST1218T...
- Page 2 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Product Description ..............2 VGA Cat5 Extender ..............2 Front Panel ..................2 Rear Panel ...................2 Cat5 Cable ..................3 Operation ..................4 LED....................4 Equalizer Selector ...............4 Specifications ................ -
Page 4: Introduction
The video signal is sent to remote monitors over standard Cat5 UTP cable using RJ45 connectors and supports distances of up to 150m / 500ft. The ST1218T requires the ST121R remote receivers or the ST121EXT repeaters to connect additional displays in between the transmitter (ST1218T) and receiver (ST121R). -
Page 5: Product Description
Instruction Manual Product Description VGA Cat5 Extender Front Panel Cat5 Output to Cat5 Output to a Remote Unit a Remote Unit Rear Panel DC 9V VGA Input (from a VGA Output to a Monitor Power VGA source) Input... -
Page 6: Cat5 Cable
Instruction Manual Cat5 Cable The Extender Pair requires an unshielded twisted pair Cat5 cable no longer than 150m (500ft.). The cable must be wired according to the EIA/TIA 568B industry standard as shown below. Wire Color Pair White/Orange Orange White/Green Blue White/Blue Green... -
Page 7: Operation
Instruction Manual Operation There are two LEDs on the Local unit. The POWER LED will illuminate indicating that the unit is properly powered. The ACTIVE LED illuminates when there are VGA input signals present. The POWER LED of the Remote unit also illuminates indicating that the unit is properly powered. -
Page 8: Specifications
Instruction Manual Specifications VGA Cat5 Extender VGA Cat5 Extender ST1218T Purpose Local Unit for VGA Source RJ45, Cat5 Extension Output for VGA x 8 Connector Cable Between Units Cat5, Cat5e, and Cat6 Max. Distance 150 Meters VGA Input Port HDB15 (male) x 1... -
Page 9: Troubleshooting
Instruction Manual Troubleshooting Symptom Solution No VGA signals at the Remote unit Both units must be powered. The ACTIVE LED on the Local unit and the Remote unit must illuminate to indicate the proper transmission of the signal. VGA signal is garbled Ensure that the cables being used are wired according to the EIA568A or EIA568B standard. -
Page 10: Technical Support
Instruction Manual Technical Support StarTech.com’s lifetime technical support is an integral part of our commit- ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. Warranty Information This product is backed by a one year warranty. - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv- er Management solutions, serving a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan.
