Quick installation

This section provides a brief
1
overview of a basic installation of the
Masterlink BTM-III.
However; please review the entire manual for
connection of additional features and to ensure best
performance and years of trouble-free service.

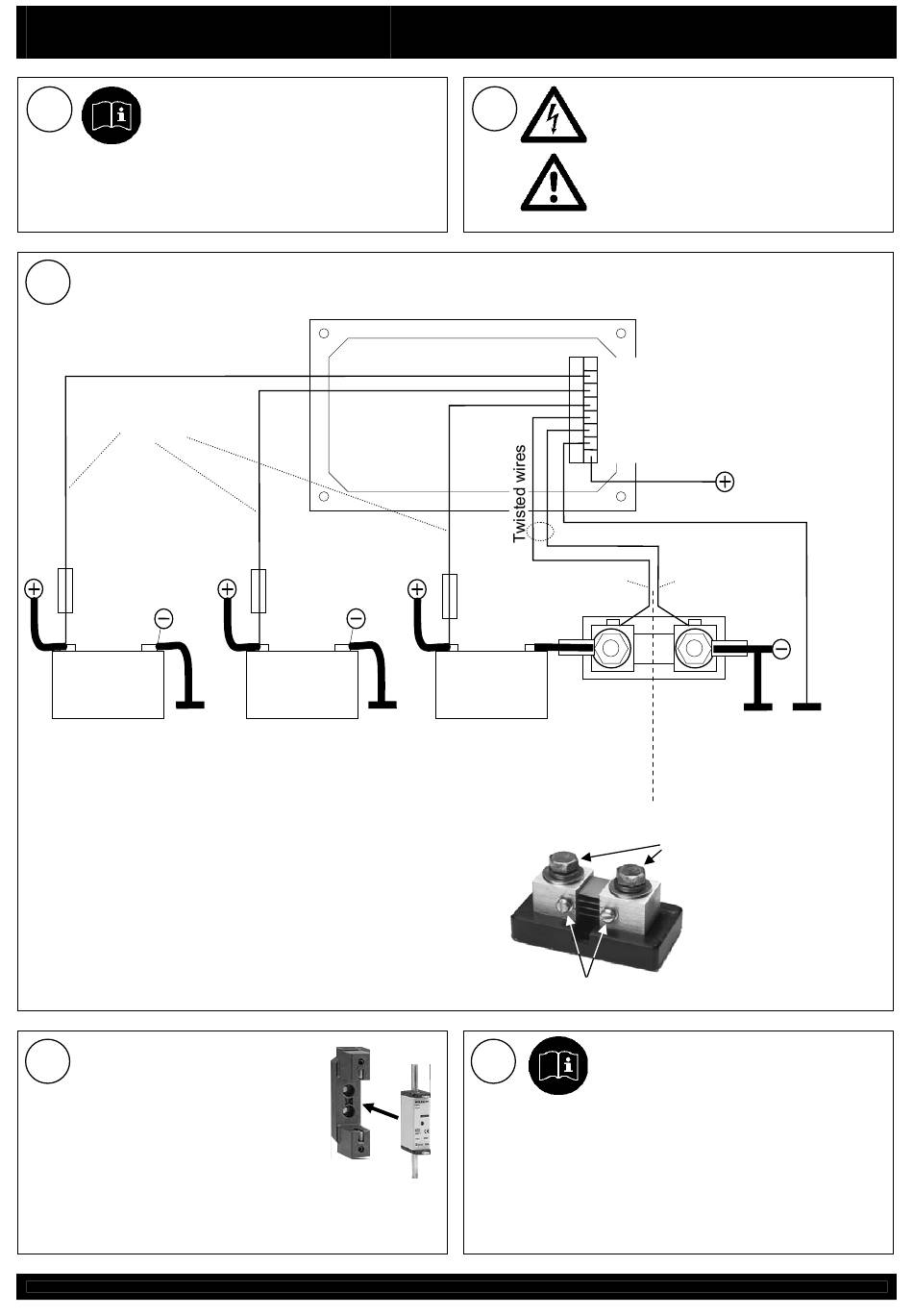

Connect the Masterlink BTM III as indicated below, but do not place the 2A-T fuses of the
3
voltage sense wires yet!
Masterlink BTM III
Voltage sense
wires
Fuse 2A-T
+
Battery bank 3
Notes:
Connection of batteries 2 and 3 is optional
Keep all wires as short as possible
Keep wiring away from other noise producing
conductors
Take adequate measures to avoid corrosion of the wires
and connections
Do not exchange the wiring of the load side with the
battery side
Use twisted wires for current sensing wires
Make sure that all minus cables of the electrical
installation are connected at the load side of the shunt
Check all wiring.
4
If the wiring is OK:
Install the 2 A-T fuses of
the voltage sense wires
Place all battey fuses.
After a few seconds the display of the
Masterlink BTM-III will show data. If not,
immediately switch off the DC power supply
and remove the fuses. Investigate the cause of
the malfunctioning
Mastervolt International B.V,
P.O.Box 22947, NL-1100 DK Amsterdam, The Netherlands.
Rear view
Fuse 2A-T
+
Battery bank 2
Masterlink BTM-III
2
LOW BATT RLY
+ BATTERY 3
+ BATTERY 2
+ SERVICE BATTERY
SHUNT BATT SIDE
SHUNT LOAD SIDE
GROUND
+ POWER SUPPLY
Battery side
Fuse 2A-T
+
Battery bank 1
(Service battery)
Battery side
Twisted wires must be connected here
5
Next:
The desired language must be set
The Masterlink BTM-III must be synchronized in
accordance with the electrical installation
Follow all steps as described in chapter 5 "FIRST
START-UP" of the User's manual
Tel.: +31-20-3422100
Email: info@mastervolt.com
The electrical system must be
disconnected from any power
source during the entire installation!
Use isolated tools!
Read safety instructions (chapter 2
of the user's manual)
DC power supply
8 50VDC
Load side
Load side
Power cables must be
connected here
Web: www.mastervolt.com v1.1 061113EN
