Summary of Contents for HUMIDEW CYLA

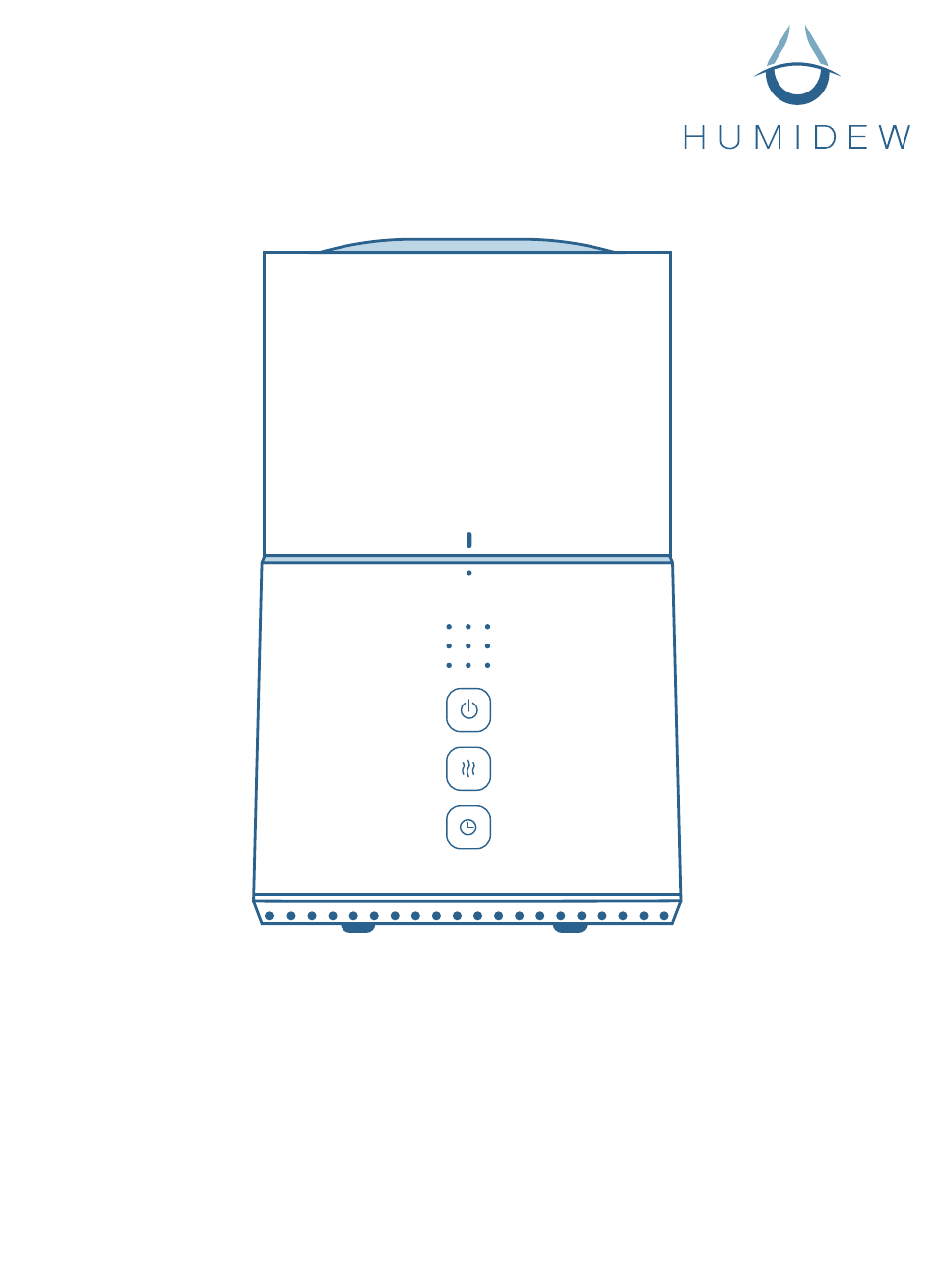

- Page 1 P O W E R Ultrasonic Humidifier CYLA Product Manual...
-
Page 3: Table Of Contents
Contents Part Description Features & Specifications Instructions • Before Use • Use • Set the Mist Volume • Set the Timer • Set the Lights • Stop Use Cleaning • Detach the Product Safety Notices Troubleshooting After-sales Service... -
Page 4: Part Description
Part Description Pouring Direction P O W E R Mist Chamber Floater Ultrasonic Mist Maker Indicator Light Touch Button Cover Handle Tank Outlet Mist Channel Air Outlet Tank Mist Outlet Power Jack... -
Page 5: Features & Specifications
Features & Specifi cations Washable P O W E R Timer Voltage DC 24 V Power 20 V Aroma Net Weight 1.2 kg Humidifi cation High 300ml/h Mode Medium 200ml/h Weak 200ml/h Capacity Night Light 2.0L Size �195X307mm Work Time 7H (High Mode) Volume ≤38dB... -
Page 6: Instructions
Instructions Before Use Open the package, install the floater on the floater bracket as shown. Plug the power adapter into the product connector and push the wire into the Wire Lock as shown. Wire Lock Install the tank according to the Calibration Points, open the cover and fill the tank with clean water. - Page 7 Cover the tank, plug in the power. The product is ready to use. POWE (Optional) If you wish to use the watersoften purification filter, the filter has to be installed at the bottom of the tank before filling. (Aroma function) If you wish to add aroma, add 6 to 8 drops of essential oil into the lower tank after the...
-
Page 8: Use
OFF Status or Night Mode ( ON ) Power Mist Timer Volume Turned ON: Power Mist Timer Volume All lights lit when no actions for 10 seconds. (except Night Mode) Power Mist Timer Volume... -
Page 9: Set The Mist Volume
Set the Mist Volume Turned on: Power lights lit. Power Mist Timer Volume Touch the Mist Volume Button to select 3 different mist output (H-M-L). Power Mist Timer Volume... -
Page 10: Set The Timer
Set the Timer Turned on: Power lights lit. Power Mist Timer Volume Press the Timer Button to select the timer mode. 2 Hours Power Mist Timer Timer Mode Volume 4 Hours Timer Mode 6 Hours Continuous Timer Mode working Mode... -
Page 11: Set The Lights
Set the Lights Turned on: Power lights lit. Power Mist Timer Volume Hold for 3 seconds All lights lit when no actions for 10 seconds. (except Night Mode) Power Mist Timer Volume Night Mode. All the LED lights of the control panel and the night lights at the bottom are OFF in the Night Mode. -
Page 12: Stop Use
Stop Use Stop use for short time: Press the power to shut off. Power Mist Timer Volume Stop use for long time: Pull out the power jack, pour out the water from the tank and the main body POWE and wipe them to be dry with the clean towel. -
Page 13: Cleaning
Cleaning 1-4 Washable, 5 Can be cleaned with a wet towel. Detachable structure for easy cleaning. P O W E R Can be assembled in 3 minutes. Cover Tank Duct Floater Main Body... -
Page 14: Detach The Product
Detach the Product To detach the floater, pull the floater as shown. To detach the duct, unlock the fastener and pull the duct out as shown. Fastener The cleaning brush can be used when washing the main body. -
Page 15: Safety Notices
Safety Notices 1. Please use the product standard AC power 7. In order to achieve the best performance, we adapter suitable for AC100 ~ 240V voltage. recommend clearing the remaining water and wiping the mist chamber with tissue or a clean 2. -
Page 16: Troubleshooting
Troubleshooting Fault Cause Treatment Weak Mist Volume 1. At the LOW mist mode. 1. Adjust the mist mode to a higher one. 2. The air inlet at the bottom is 2. Make sure the inlet is not blocked. blocked. No mist output when turned on 1. - Page 17 Fault Cause Treatment Water leakage 1. Tank is not correctly 1. Reinstall the tank properly installed. to make sure the good contact between the tank and the main unit. 2. The tank outlet’s seal ring is 2. Adjust the seal ring to make improperly installed.
-
Page 18: After-Sales Service
After-sales Service 1. Please use the product standard AC power adapter which is suitable for AC100 ~ 240V voltage. 2. Please use clean tap water to prevent large foreign objects or scale blocking the water outlet, which may cause slowly refilling or water leakage. 3.
