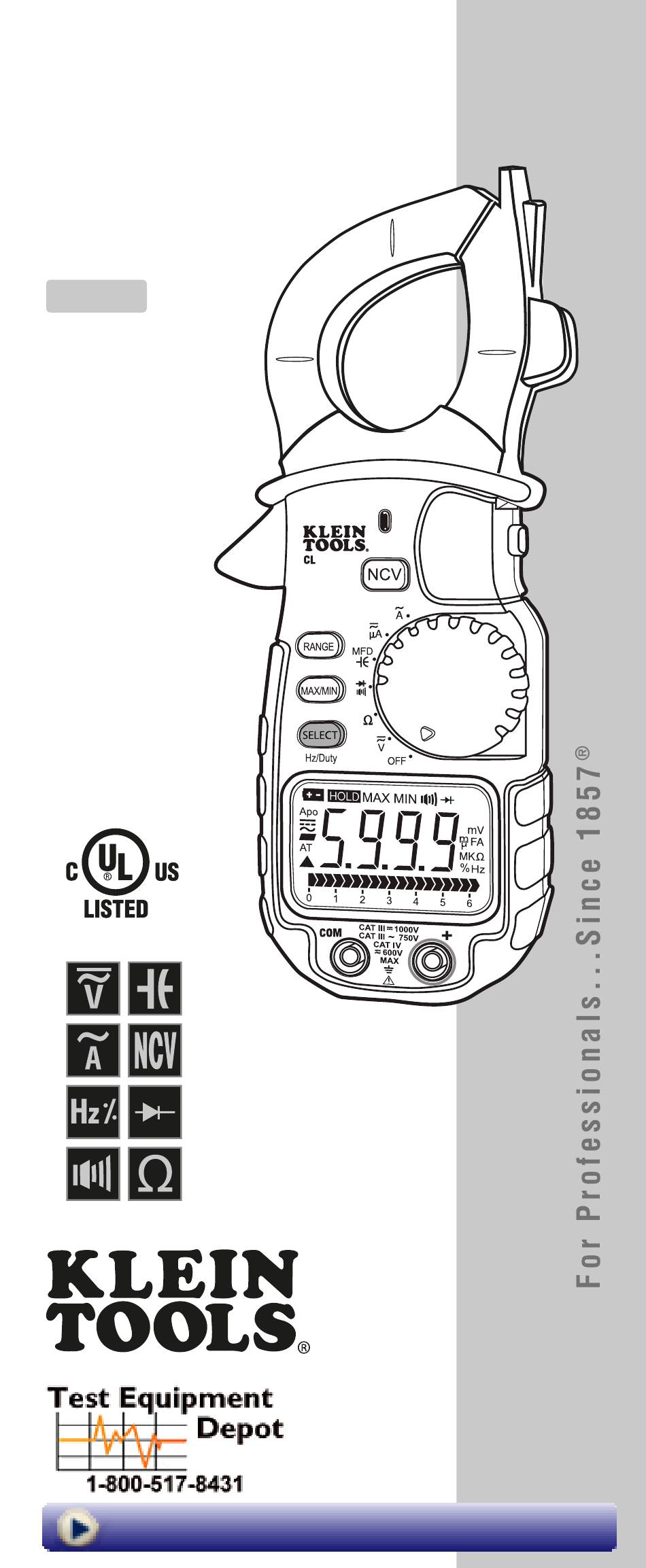

Instruction
Manual
CL1200
ENGLISH
• DATA HOLD
• BACKLIGHT
• WORKLIGHT
• BAR GRAPH
• MAX / MIN
• 3-5/6 DIGIT
5999 COUNT LCD
• AUTO / MANUAL
RANGE
• NON CONTACT
VOLTAGE TESTER
Visit us at www.TestEquipmentDepot.com
1200
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

Advertisement

Table of Contents
loading

Related Manuals for Klein Tools GL1200

Summary of Contents for Klein Tools GL1200

  • Page 1 Instruction Manual CL1200 ENGLISH • DATA HOLD • BACKLIGHT • WORKLIGHT • BAR GRAPH • MAX / MIN 1200 • 3-5/6 DIGIT 5999 COUNT LCD • AUTO / MANUAL RANGE • NON CONTACT VOLTAGE TESTER 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...

  • Page 2: General Specifications

    ENGLISH CL1200 Instruction Manual GENERAL SPECIFICATIONS The Klein Tools CL1200 is an auto-ranging clamp meter. It measures AC / DC voltage, AC current, resistance, capacitance, frequency and duty cycle. It can also test non-contact voltage, diodes, and continuity. • Operating Altitude: 2000 meters •...

  • Page 3: Feature Details

    FEATURE DETAILS 1200 Use CAT IV rated leads or higher. Do not attempt to measure more than 1000V DC or 750V AC or 2000µA. Keep hands below line when measuring high current levels. Auto Power-Off (Apo) • Device will power off after 30 minutes non-use. •...
  • Page 4 H. I. Battery Replacement • When indicator is displayed on the LCD, batteries must be replaced. • Remove the back screw and replace 2 x AAA batteries. Magnetic Back • Attach instrument to metal for hands-free use. Bar Graph • The bar graph shows an approximate analog representation of a measurement.
  • Page 5 Frequency (Hz) / Duty Cycle (See Feature Details) Features: HOLD PRESS & HOLD SELECT Hz/Duty • Select , setting. Capacitance: < 6000µF Features: HOLD • Safely discharge capacitor before measurement. • Reading may take up to 60 seconds for large capacitors. Resistance: <...

  • Page 6: Electrical Specifications

    ENGLISH Non Contact Voltage (NCV): > 25V AC PRESS PRESS HOLD HOLD 1200 SYMBOLS USED ON LCD AC Measurement DC Measurement Negative DC Value Auto Range Active Overload: Range Exceeded Auto Power-Off Active O.L. Low Battery Hold Active HOLD Minimum Reading Maximum Reading Duty Cycle Mode Frequency Mode...
  • Page 7 AC Current Measurement Range Resolution Accuracy 600µA 0.1µA ± (2.0% + 5 digits) 2000µA 1µA ± (1.5% + 5 digits) 0.01A ± (2.9% + 15 digits) 600A 0.1A ± (1.9% + 8 digits) Overload Protection: 600V RMS Voltage: • Current: (leads) 2000µA (clamp) 600A...

  • Page 8: Warranty

    fi tness for a particular purpose, are limited to the express warranty. Klein Tools shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
