Signal Hound PNCS-1 User's Product Manual

1 ghz phase noise clock standard

Hide thumbs

Table Of Contents

PNCS-1 1 GHz Phase Noise Clock Standard

Product Manual

Table of Contents

Need help?

Do you have a question about the PNCS-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Signal Hound PNCS-1

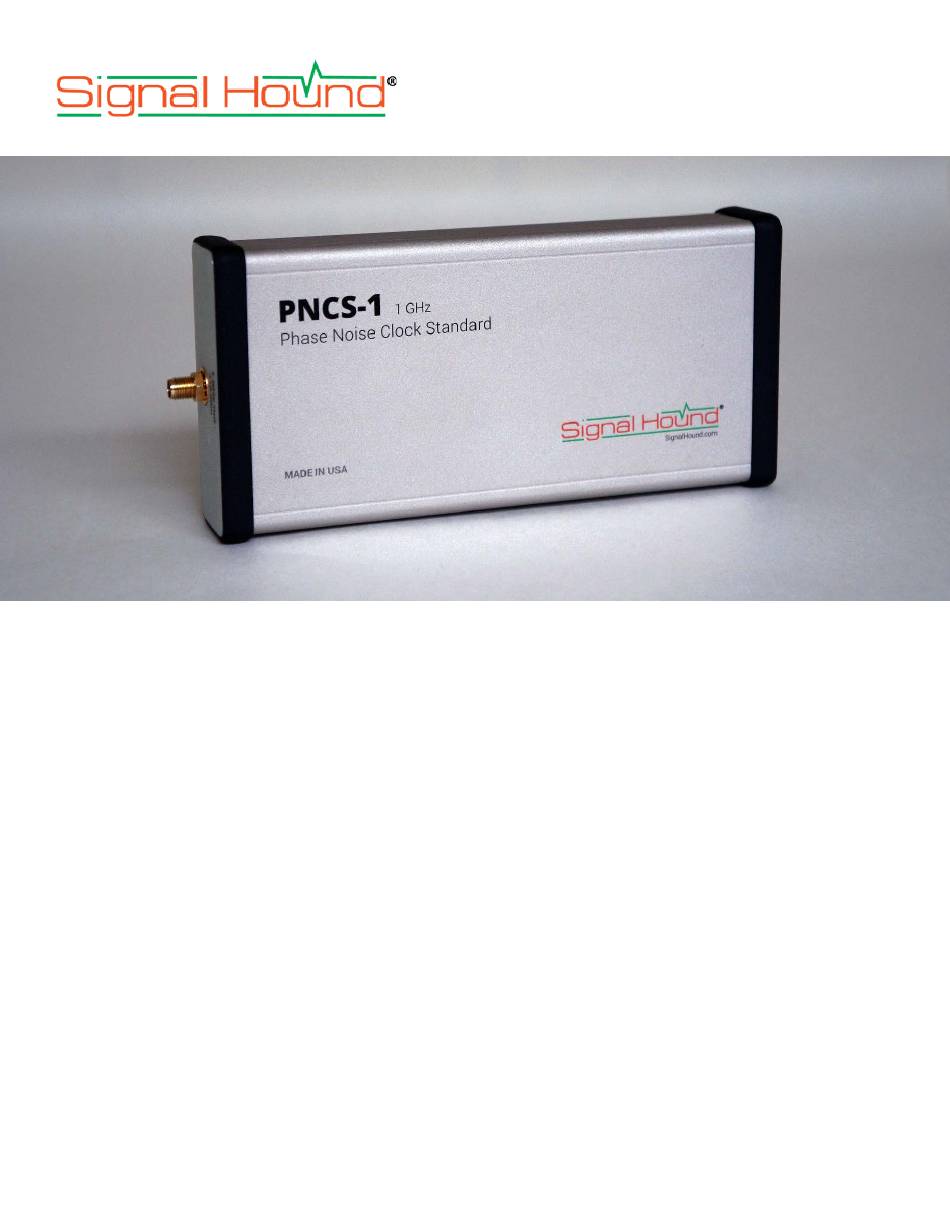

Page 1 PNCS-1 1 GHz Phase Noise Clock Standard Product Manual...
Page 2 Signal Hound PNCS-1 User Manual 2018, Signal Hound 35707 NE 86 La Center, WA Phone 360.263.5006 • Fax 360.263.5007 This information is being released into the public domain in accordance with the Export Administration Regulations 15 CFR 734...
Page 3 Contents 1 Overview ................................4 2 Preparation ................................ 4 3 Understanding the PNCS-1 Hardware ......................4 4 Calibration and Adjustment ..........................5 5 PNCS-1 Typical Performance .......................... 5 6 Warranty and Disclaimer ..........................6...
Page 4 13.5V AC-DC power adapter. 2.2 CONNECTING YOUR PNCS-1 Plug the power jack into the PNCS-1 DC power in. Wait 3 minutes for the OCXO to warm up. For best stability, leave the PNCS-1 plugged in for 30 minutes before use.
Page 5 Spurious Signals 4 Calibration and Adjustment The output frequency may be mechanically adjusted using the included slotted adjustment tool. Contact Signal Hound for more information regarding calibration, or to schedule a calibration. 5 PNCS-1 Typical Performance Frequency Range 1 GHz ± 1 kHz, mechanically adjustable Output Power +10 dBm ±...
Page 6 Signal Hound will, at its option, either repair or replace products that prove to be defective. 6.2 WARRANTY SERVICE For warranty service or repair, this product must be returned to Signal Hound. The Buyer shall pay shipping charges to Signal Hound and Signal Hound shall pay UPS Ground, or equivalent, shipping charges to return the product to the Buyer.
Page 7 Exclusive Remedies 6.4 EXCLUSIVE REMEDIES The remedies provided herein are the Buyer’s sole and exclusive remedies. Signal Hound shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory.
