RAK8-MB Instruction Manual
For programming
information:​
programming guide"
For general system information:
Application Sheet"
Overview:
The RAK8 Motherboard forms the base for up to 8 pluggable modules which can be added
in any combination according to system requirements. Compatible pluggable modules to be
used with the RAK8 motherboard are:
WMT-400 ​ ​ - 400W Trailing edge dimmer
WML-300 ​ ​ - 300W Leading edge dimmer
WDA-600​ ​ - 600W digital dimmer for use with 1-10V, DSI and DALI broadcast
WMS-600​ ​ - 600W Switching module
WM-CUB​ ​ - Twin relay curtain and blind controller
RAK8s, combined with a Link device (RxLINK or RAK-LINK) can either be used as a single 8
channel unit or formed into a "stack". RAK8s can also be used in combined stacks with
other RAK units (RAK4-T, RAK4-F, RAK4-R) on the same Link device.
Before commencing installation of a Rako product first read this instruction manual carefully. Rako Controls Ltd
accepts no responsibility for any damage or injury caused by incorrect installation of a Rako product.
Installation should only be carried out by a qualified electrician. Always install RAK units in a well ventilated
room, with a minimum clearance of 50mm at the sides in the correct orientation i.e. vents top and bottom. Each
RAK unit must be earthed.

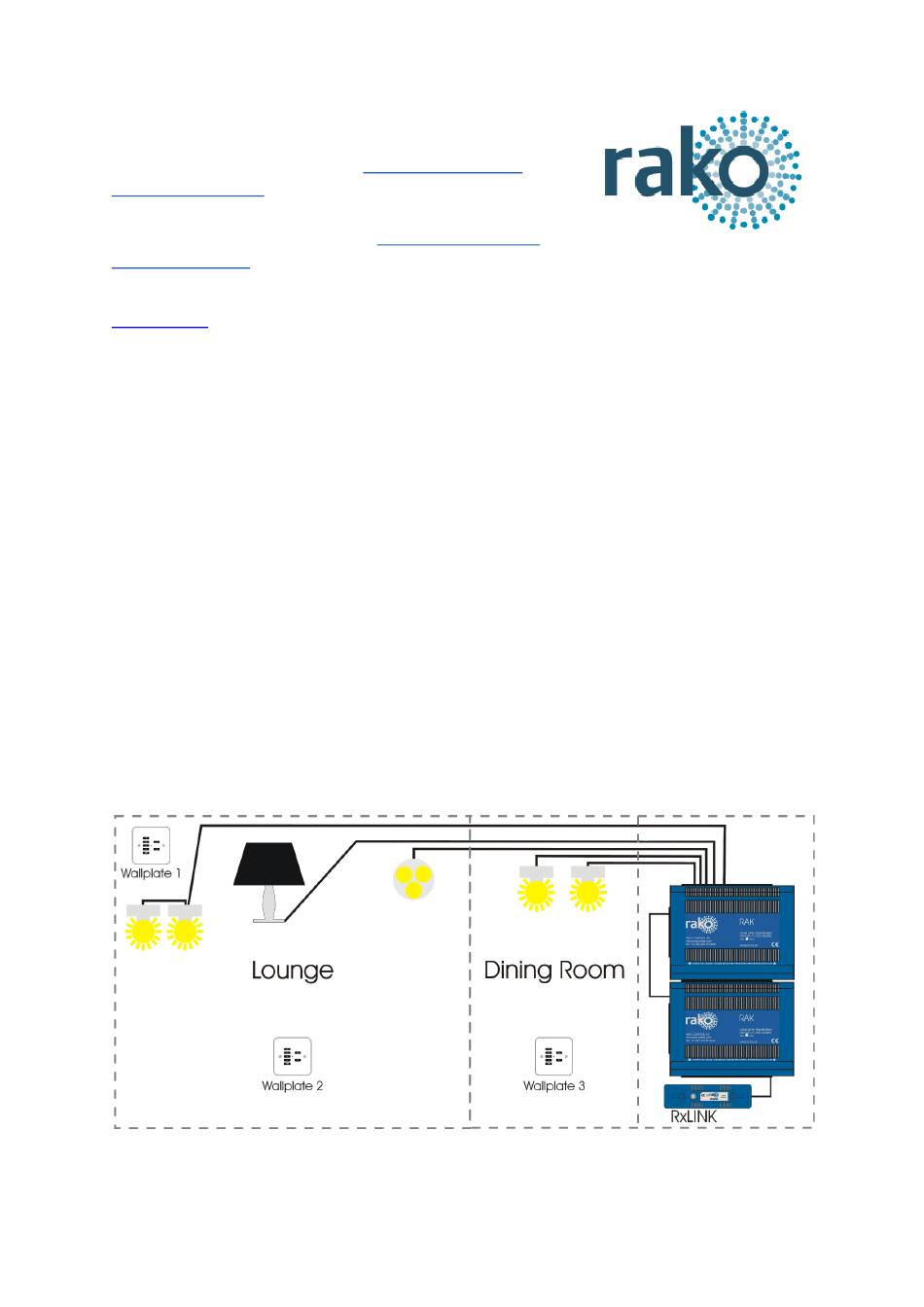

Wireless system (RxLINK):
The RxLINK is used to integrate the RAK(s) into the wireless system and can support a total
of 16 circuits. For example two RAK8s or one RAK8 and two RAK4s.

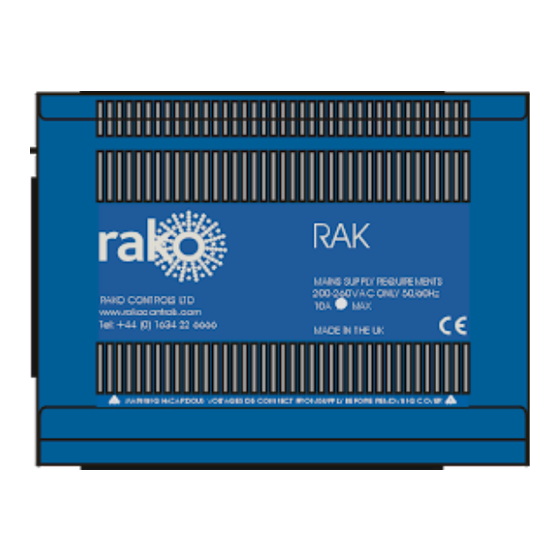

RAK8-MB
​ ​
" Wireless RAK/Wired
​
​
​ W ireless RAK/Wired
​
"
Manual Version 2.1.5
