Features
•
27,2 t (30 USt) rating
•
33,52 m (110 ft) four-section boom
•
Graphical Rated Capacity Limiter (RCL)
•
Dual-station manual controls
NBT30H-2
Product Guide
ASME B30.5 • Imperial 85%

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NBT30H-2 and is the answer not in the manual?

Questions and answers

Related Manuals for National Crane NBT30H-2

Summary of Contents for National Crane NBT30H-2

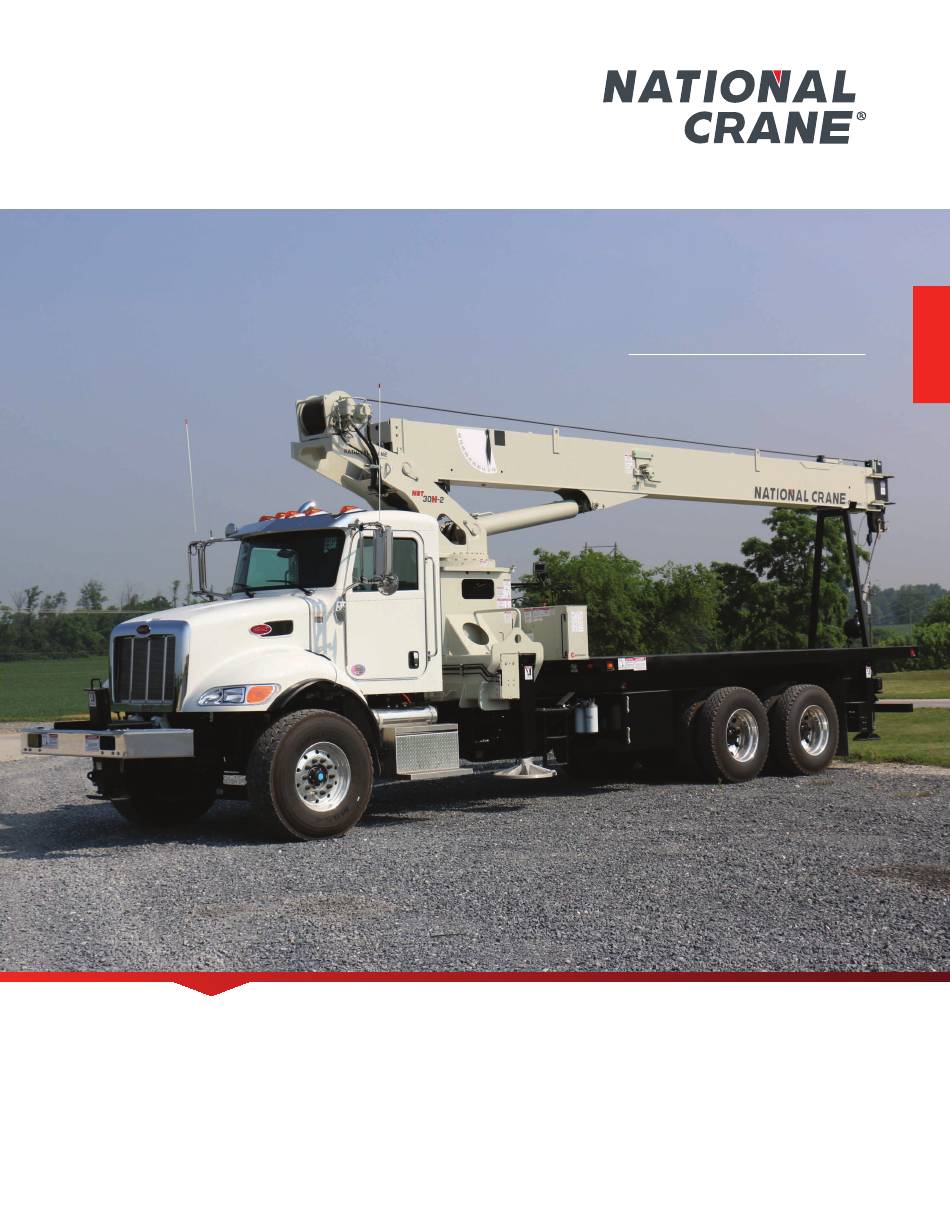

  • Page 1 NBT30H-2 Product Guide ASME B30.5 • Imperial 85% Features • 27,2 t (30 USt) rating • 33,52 m (110 ft) four-section boom • Graphical Rated Capacity Limiter (RCL) • Dual-station manual controls...

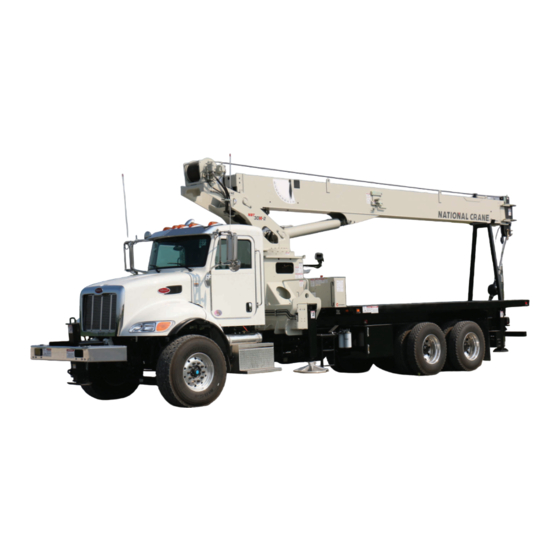

  • Page 2 NATIONAL CRANE NBT30H-2 The NBT30H-2 delivers 27,2 t (30 USt) maximum capacity; 36,27 m (119 ft) maximum tip height (main boom); 49,68 m (163 ft) maximum tip height (boom with jib). Features Boom The 33,52 m (110 ft) four-section boom is the longest in its size range.
  • Page 3 The assurance of the world’s most advanced crane work generating profits for your business. service and support to get you back to work fast. Financial tools that help you capitalize on opportunity with solutions that fit your needs. NBT30H-2 Product Guide...
  • Page 4 Contents Dimensions and weights Working range - 100 ft boom Load charts - 100 ft boom Working range - 110 ft boom Load charts - 110 ft boom Specifications Symbols glossary...
  • Page 5 9698 kg (21,380 lb) 33,52 m (110 ft) 219 cm (86.1 in) 166 cm (65.4 in) 9739 kg (21,470 lb) 10 070 kg (22,200 lb) * Above weights do not include reservoir, RSOD, jib, PTO, pump, BED. NBT30H-2 Product Guide...

  • Page 6: Mounting Configurations

    12,2 m (40 ft) overall length. • All mounting data is based on a National Crane Series NBT30H-2 (110 ft boom) will exceed 12,2 m (40 ft) NBT30H-2 with subbase and an 85% stability factor...

  • Page 7: Working Range

    THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. National Crane NBT30H-2 Product Guide...

  • Page 8: Load Charts

    Load charts 8,8 m - 30,5 m 6,1 m (20 ft) 360° (29 ft - 100 ft) Pounds Feet 44-A 58-B 72-C 86-D *60,000 (74.3) 44,000 29,100 (70.1) (77.2) 36,900 29,000 (65.9) (74.6) 33,450 28,600 28,600 (61.4) (71.9) (76.9) 28,300 24,600 23,500 22,900...
  • Page 9 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. National Crane NBT30H-2 Product Guide...

  • Page 10: Load Chart

    Load chart 8,8 m - 30,5 m 7,6 m - 13,7 m 6,1 m 360° (29 ft - 100 ft) (25 ft - 44 ft) (20 ft) Pounds 25 ft LENGTH 44 ft LENGTH Feet 4900 (75.4) Boom extension capacity notes: 4500 1.
  • Page 11 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. NBT30H-2 Product Guide...
  • Page 12 Load chart 10,1 m - 33,5 m 6,1 m (20 ft) 360° (33 ft - 110 ft) Pounds 46-A 62-B 78-C 94-D Feet *60,000 (75.8) 43,000 29,100 (72.1) (77.8) 35,900 29,000 (68.2) (75.3) 32,000 28,000 28,000 (64.3) (72.7) (77.8) 27,000 24,000 23,000 19,500...
  • Page 13 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. National Crane NBT30H-2 Product Guide...
  • Page 14 Load chart 10,1 m - 33,5 m 7,6 m - 13,7 m 6,1 m 360° (33 ft - 110 ft) (25 ft - 44 ft) (20 ft) Pounds Boom extension capacity notes: 25 ft LENGTH 44 ft LENGTH Feet 1. 25 ft and 44 ft extension lengths may be used for single line lifting service.

  • Page 15: Specifications

    4,53 t (5 USt) 68 kg (150 lb) 1-sheave Block 10,89 t (12 USt) 122 kg (270 lb) 2-sheave Block 17,24 t (19 USt) 159 kg (350 lb) 3-sheave Block 27,22 t (30 USt) 261 kg (575 lb) NBT30H-2 Product Guide...
  • Page 16 Specifications Super Structure Hydraulic system Efficient closed-center, load sense hydraulics system featuring Boom load sharing technology allowing for smooth multifunction operation of all crane functions. One (1) SAE-C mounted, Two options: 8,8 m- 30,4 m (29 ft – 100 ft), four-section 75cc axial piston pump for all functions and optimized system with a maximum tip height of 33,22 m (109 ft) and 10,1 performance.
  • Page 17 Single Front Outrigger • > 63,5 m (25 in) vertical stroke > Required for 360° operation Bulkhead • > Steel 762 mm (30 in) solid wall bulkhead Outrigger float pads • > 24 in diameter aluminum outrigger pads NBT30H-2 Product Guide...

  • Page 18: Symbols Glossary

    Symbols glossary Radius Axles Drive Heavy duty jib Rotation Boom Electrical system Hoist Boom elevation Engine Hookblock Speed Extension Boom extension Steering Hydraulic system Frame Insert Suspension Boom length Boom nose Swing Fuel tank capacity Lights Brakes Gear Tires Operators station Grade Outrigger controls Transmission...
  • Page 19 Notes NBT30H-2 Product Guide...
  • Page 20 Illustrations shown may include optional equipment and accessories and may not include all standard equipment. ©2016 All Rights Reserved – Manitowoc Cranes, LLC and its affiliates. www.manitowoccranes.com Form No. NBT30H-2 PG Part No. 11-003/0616/15M...
