Summary of Contents for Akin T9HMBL

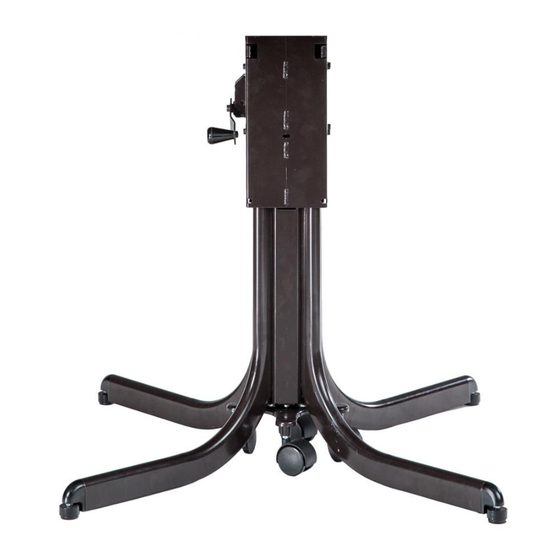

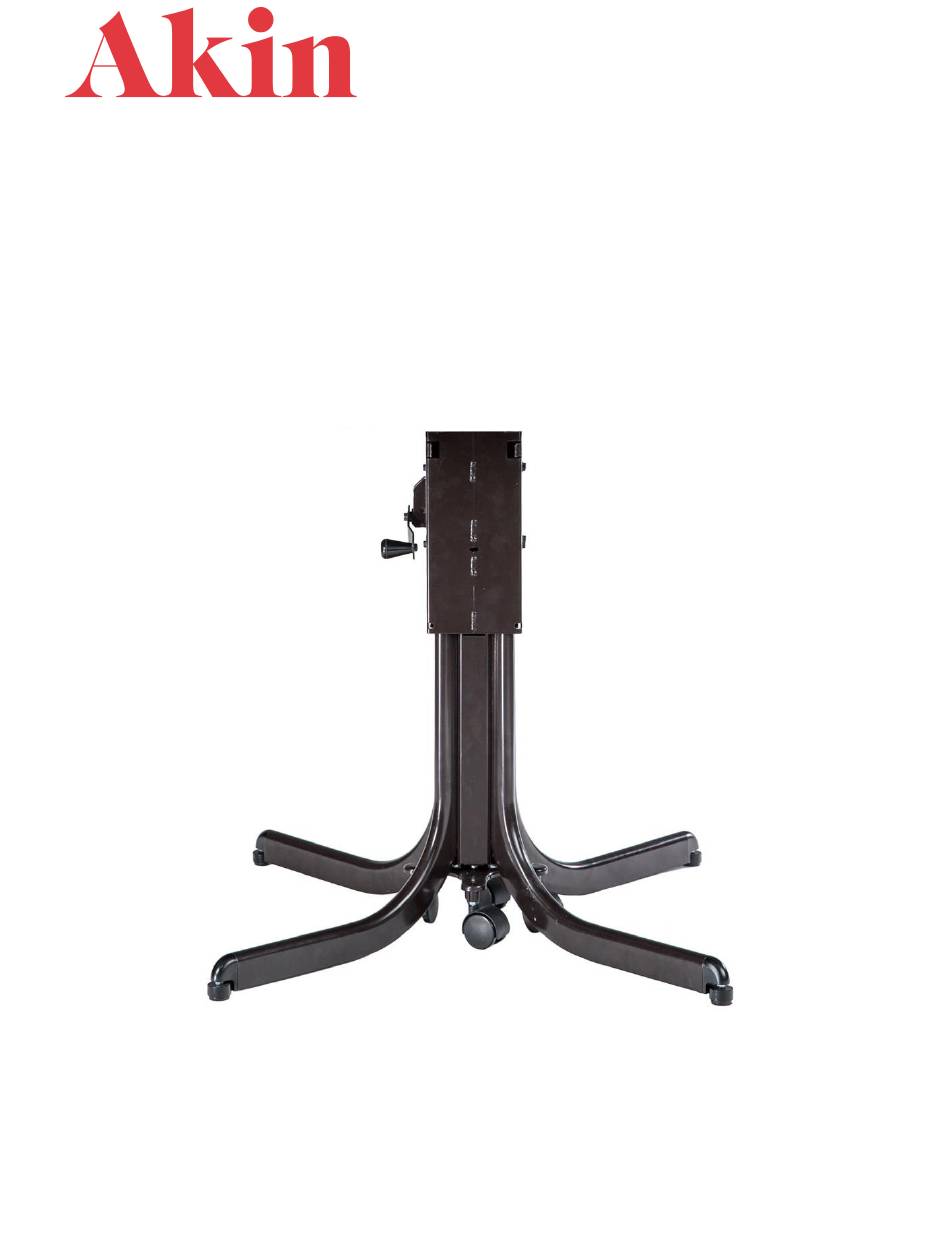

- Page 1 C O M P L E T E F U R N I T U R E T9 Series Base User-Service Manual T9HMBL, T9HMBLZ, T9HMBL4Z To avoid injury, please read user manual before operating. 113 Commerce Dr. Akin Complete Furniture...
-
Page 2: Table Of Contents
(listen for an audible "click") and Four Caster EZ Roller mechanism automatically engages when table is lowered. T he Four Caster EZ Roller will now bear major weight of the table so Akin Table Plus can be easily ® moved by one person. -
Page 3: Leg Assembly Instructions
.A.caution: Keep fingers away from table mechanism when tilting table top horizontal. Table Plus Installation Instructions INSTALLATION WITH WOOD SCREWS: Akin has a seperate kit to mount the T9 to tops without pre-bored holes. Please order TSTAK and refer to instructions contained within that kit. -
Page 4: Four Caster Ez Roller Installation Instructions (Legs Pre-Installed)
(listen for an audible "click") and Four Caster EZ Roller mechanism automatically engages when table is lowered. Four Caster EZ Roller will now bear major weight of the table so Akin Table Plus can be easily moved by one person. Figure 6... -
Page 5: Diagnosis Chart - Table Base
Diagnosis Chart - Table Base Possible Symptom Procedure Cause Table Self-leveling Uneven floor exceeds wobbles glide does not range of the glide. contact floor Move table slightly to change location. Inspect for damaged glide. Replace only with identical item (see parts list). Table Top is Inspect for loose or loose... -
Page 6: Diagnosis Chart - Adjustable Height Table Base
Diagnosis Chart - Adjustable Height Table Base Table Plus Adjustable Height Table Base The Right Height adjustable base also offers outstanding rigidity. The outer housing, which travels over the large square inner column, is split vertically and contains a pair of guide plates lined with nylon slides to engage and slide the inner column. -
Page 7: Diagnosis Chart - Four Caster Ez Roller
Diagnosis Chart - Four Caster EZ Roller Symptom Possible Cause Procedure Mechanism does not engage, Follow operating instructions. Lift at any side of the table so Four Caster EZ Roller will not Operating sequence is designed to top, so Four Caster EZ Roller support the table prevent accidental engagement. -
Page 8: Spider Assembly
Spider Assembly Part#: 31009044 Item Descriotion O t v Soider Assembl v Cam Pivot Pin Stoo Label Caution Table Bushinn Shoulder Sorina Torsion Grio Latch Latch Bolt Carriaae 1/4 - 20 x E-Rina Washer 1/4 SAE Nut 1/4 - 20 KEPS... -
Page 9: Leg Hardware Kit
Leg Hardware Kit Part #: 39000944 Item Description Q t y Leg Cap Cap Insert Floor Guide Nut, 1/4 - 20 Hex Keps Screw, 1/4 - 20 1/2 PPHMS ar ;: / - - / I $--�4... -
Page 10: Warranty
In the event of a defect covered by this warranty we will, after inspection and at our option, repair or Akin warrants that its products are free of defects replace the product or defective parts. For prompt in materials and workmanship under normal use...
