fann 140 Instruction Manual

Mud balance

Hide thumbs

Model 140

Mud Balance

Instruction Manual

Part No. 206770

Rev. C

Table of Contents

Need help?

Do you have a question about the 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for fann 140

Page 1 Model 140 Mud Balance Instruction Manual Part No. 206770 Rev. C...
Page 2 -- graphic, electronic or mechanical without first receiving the written permission of Fann Instrument Company, Houston, Texas USA Printed in USA NOTE: Fann reserves the right to make improvements in design, construction and appearance of our products without prior notice. ® FANN is a registered trademark of Fann Instrument Company. Fann Instrument Company...

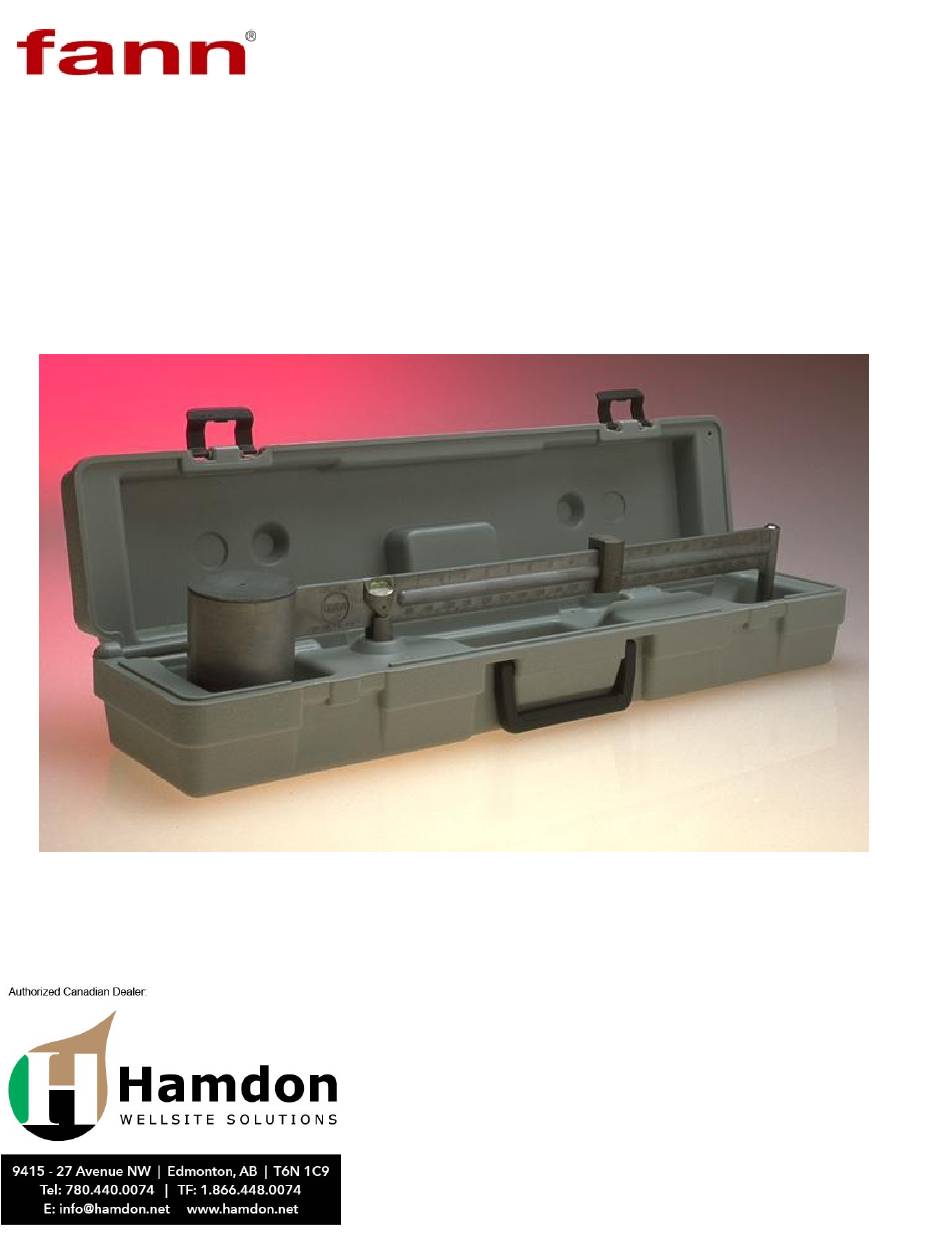

Page 3 DESCRIPTION: The Fann Four Scale Mud Balance is an accurate, self-contained measuring device used to determine the density of drilling fluid. It has a range of 7 to 24 pounds per gallon or Specific Gravity of 0.84 to 2.88. The Mud Balance consists of a constant-volume sample cup and lid connected to a balance arm that has four graduated scales.
Page 4 CALIBRATION: The Mud Balance calibration can be checked using fresh water. At 70F (21C) fresh water should give a reading of 1.00 on the specific gravity scale, 8.34 on the lbs/gal scale, and 62.3 on the lbs/cu ft scale. This spot on the balance arm is marked with a longer scale division line called the water line. Small amounts of mud on the balance arm or rider can cause improper readings.
Page 5 Warranty Fann Instrument Company warrants its products to be free from defects in material and workmanship for a period of 12 months from the time of shipment. If repair or adjustment is necessary, and has not been the result of abuse or misuse within the 12-month period, please return, freight prepaid, and correction of the defect will be made without charge.
