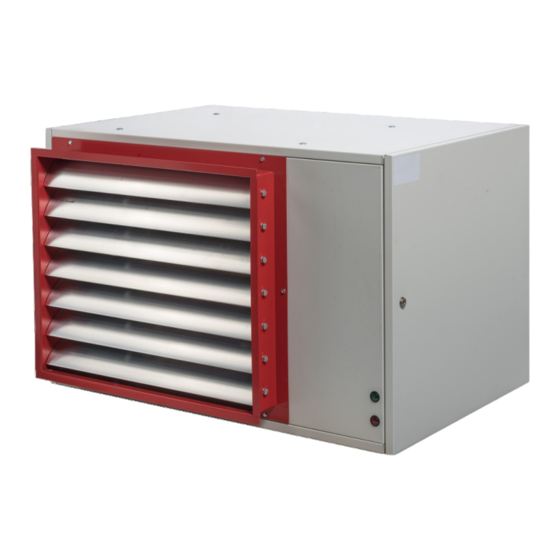

- Page 1 User’s manual PROPANE OR NATURAL GAS-FIRED GTV-TYPE WARM AIR BLOWERS Appliance types: GTV-20A, C, CL GTV-68A GTV-27A, C, CL GTV-78A GTV-33A, C, CL GTV-87A GTV-40A, C, CL GTV-97A GTV-48A, C, CL GTV-107A GTV-58A, C, CL GTV-116A www.pakole.com...
-
Page 2: Table Of Contents
FORCED CONVECTION AIR HEATERS Contents Contents 1. Safety information ���������������������������������������������������������������������������������������������������������������������� 4 2. General Instruction �������������������������������������������������������������������������������������������������������������������� 5 Data board ������������������������������������������������������������������������������������������������������������������������������������ 5 Corrosive materials ����������������������������������������������������������������������������������������������������������������������� 6 Standards and laws ���������������������������������������������������������������������������������������������������������������������� 6 Safety signs ���������������������������������������������������������������������������������������������������������������������������������� 6 Safe usage ������������������������������������������������������������������������������������������������������������������������������������ 6 3. Transportation, unpacking, handling �������������������������������������������������������������������������������������� 7 4. -
Page 3: Safety Information
User’s Manual FORCED CONVECTION AIR HEATERS Safety information Read and understand this manual thoroughly before installing starting or servicing this equipment. The improper installation or using can cause serious damages! Keep this manual in a safe place in order to obtain information in case of incidental problems! GENERAL SAFETY NOTICES Disregard of instructions and notices of this Manual can cause serious bodily injuries or damages... -
Page 4: General Instruction
The appliance is equipped with data board, which is placed on inside of device’s door. On this data board there are information concern- ing the type of device, gas type, electrical connection and flue types. Manufacturer Type GTV-20A PAKOLE Trade Kft. 8000 Székesfehérvár, 20,25 kW Nominal input: Börgöndi út 8–10. -
Page 5: Corrosive Materials
Qualified service engineers are those having specific technical experience and/or valid license in the field of heating and cooling installa- tion for home and industry. In any case, call the Manufacturer office or the closest dealer (www.pakole.com) and ask for further informa- tions�... -
Page 6: Transportation, Unpacking, Handling
User’s Manual FORCED CONVECTION AIR HEATERS • Never use the unit to support other equipment. ATTENTION • Never leave tools, spare parts, etc� inside the unit� • Make sure that all inspection panels are closed properly� • Do no expose the unit to inflammable gases. FORBIDDEN! •... -
Page 7: Appliance Types
User’s Manual FORCED CONVECTION AIR HEATERS Appliance types The overal dimension of appliances are in enclosure 2� Axial fan-type execution (GTV-…A) Features: • suction in of heater air is executed from the heated place, it can not be connected to air duct •... -
Page 8: Installation
User’s Manual FORCED CONVECTION AIR HEATERS 7/b. picture: Air duct execution at „CL” type Installation Appliance installation installation is possible, SOLELY INTERIOR • • for the sake of appropriate efficiency the position and the high of installation has to be carefully defined, •... -
Page 9: Optional Accessories
User’s Manual FORCED CONVECTION AIR HEATERS Air-heater Two-pole isolating switch phase null earth control termostat + sensor 24. picture: Possible regulation mode controlled by AHP-2-type thermostat This type of control is the so-called PILOT control, at which the communication between the programme clock and warm air blower is solved by just one wire namely by „control cable”. -
Page 10: Protective Distances
User’s Manual FORCED CONVECTION AIR HEATERS Protective distances From flammable materials it is obligatory to keep SAFETY OF OPERATION and FIRE PREVENTION distances! Minimal dimensions of protective distances: 25. picture: Protective distances Warning: In case of between 68-116 KW power of devices this fixing mode is not applicable! Appliance operation Start, restart The properly installed appliance according to the control sign received from temperature regulator - in the present case heating –... -
Page 11: Control And Regulation Of Appliance
User’s Manual FORCED CONVECTION AIR HEATERS Control and regulation of appliance The control of appliance is performed by temperature regulator(room thermostat). It can be manually operated or equipped with prog- ramme-clock according to the request. Manually operated thermostat (AHP-1): the thermostat is equipped with a mode switch HEATING / 0 / VENTILATING and equipped with a „RESET” (remote-restarter) push-button. -
Page 12: Maintance
User’s Manual FORCED CONVECTION AIR HEATERS Maintance The GTV-type warm air blowers apart from the checking of suspension and cleaning of cover, lamellas and circulating fan do not need extra maintenances but to be able to preserve the long lifetime of appliance it is recommended to have yearly supervision done with a qualified service or expert. -
Page 13: Gas Change
User’s Manual FORCED CONVECTION AIR HEATERS Gas change ATTENTION! In case you would like to operate your appliance by another type of gas(e.g. by Natural gas instead of Propane gas), then contact the local authorized representative or a qualified service department! ATTENTION! This action can only be realized by outhorized expert or service! ATTENTION! If the heater appliance is working, than it is prohibited to close the shutters completely! -
Page 14: Enclosure 1 / A . : Appliance Performance Data
User’s Manual FORCED CONVECTION AIR HEATERS 12 . Enclosure Enclosure 1 / A . : Appliance performance data Modell GTV-20A GTV-27A GTV-33A GTV-40A GTV-48A GTV-58A Inpout (NCV) 20,25/13,5 27,05/18,12 33,4/22,38 40,35/27,03 47,3/31,69 58,8/39,4 Outpout (NCV) 18,6/12,2 24,9/16,4 30,8/20,2 37,2/24,4 43,6/28,6 54,3/35,6 Effeciency [3 pont/Mod] 72,7/73,4... -
Page 15: Enclosure 1 / B : Gas Consumption
User’s Manual FORCED CONVECTION AIR HEATERS Modell GTV-20C,CL GTV-27C,CL GTV-33C,CL GTV-40C,CL GTV-48C,CL GTV-58C,CL Inpout (NCV) 20,25/13,5 27,05/18,12 33,4/22,38 40,35/27,03 47,3/31,69 58,8/39,4 Outpout (NCV) 18,6/12,2 24,9/16,4 30,8/20,2 37,2/24,4 43,6/28,6 54,3/35,6 Effeciency [3 pont/Mod] 72,7/73,4 72,8/73,6 72,6/73,4 72,4/73,6 72,7/73,5 72,8/73,5 Natural gas 2,15/1,44 2,87/1,92 3,54/2,37... -
Page 16: Enclosure
User’s Manual FORCED CONVECTION AIR HEATERS Enclosure 2.: appliance dimensions per types GTV-…A axial fan-type 20…58 kW Type GTV -20A GTV -27A GTV -33A GTV-40A GTV-48A GTV-58A GTV-…A axial fan-type 68…116 kW Type GTV-68A GTV-78A GTV-87A GTV-97A GTV-107A 1110 1000 GTV-116A 1110 1000... -
Page 17: Enclosure 3.: Flue Longs, Allowed Pressure Drops
User’s Manual FORCED CONVECTION AIR HEATERS GTV-…CL centrifugal fan-type 20…58 kW Type GTV-20CL 1050 GTV-27CL 1050 GTV-33CL 1100 GTV-40CL 1100 GTV-48CL 1150 GTV-58CL 1150 Enclosure 3.: Flue longs, allowed pressure drops ATTENTION! The joint of pipes must be sealed and fixed! Not allowed longer flue system as the above chart shows! Supplement: The fresh air supply and venting set can contain an elbow 90°�... -
Page 18: Enclosure 4.:Target Countries/Gas Categories
User’s Manual FORCED CONVECTION AIR HEATERS Type GTV-68A GTV-78A GTV-87A GTV-97A GTV-107A GTV-116A Venting set Maximal lenght of venting set Ø 100 mm [m] type Venting set Maximal pressure drop of venting set Ø 100 mm [Pa] type Enclosure 4.:Target countries/gas categories Appliance Gas pressure Modell... - Page 19 At rated heating 0,068 Envelope loss factor capacity Ignition burner power At minimal 0,050 consumption capacity In standby mode 94,21 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,4 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 20 At rated heating 0,068 Envelope loss factor capacity Ignition burner power At minimal 0,050 consumption capacity In standby mode 93,70 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,6 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
-
Page 21: Eco-Design Declaration Of Conformity
At rated heating 0,072 Envelope loss factor capacity Ignition burner power At minimal 0,060 consumption capacity In standby mode 93,71 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,4 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details... - Page 22 At rated heating 0,072 Envelope loss factor capacity At minimal Ignition burner power 0,060 capacity consumption In standby mode 93,70 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,5 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 23 At rated heating 0,095 Envelope loss factor capacity Ignition burner power At minimal 0,074 consumption capacity In standby mode 93,87 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,5 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 24 At rated heating 0,095 Envelope loss factor capacity At minimal Ignition burner power 0,074 capacity consumption In standby mode 93,54 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,5 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 25 At rated heating 0,165 Envelope loss factor capacity At minimal Ignition burner power 0,142 capacity consumption In standby mode 93,70 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 74,3 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 26 At rated heating 0,165 Envelope loss factor capacity At minimal Ignition burner power 0,142 capacity consumption In standby mode 92,64 Emission efficiency s,flow Regulation (EU) 2016/2281 Seasonal space heating energy 73,2 efficiency Contact PAKOLE Trade Kft. H-8000, Székesfehérvár, Börgöndi út, 8-10 details...
- Page 27 If you would like to contact us the type and serial number of device always be at hand� In case of other needed information write to the following address: PAKOLE TRADE Kft. H-8000 Székesfehérvár, Börgöndi út 8-10. Tel�: +36 22 316 484...
