Summary of Contents for MTP ST-172

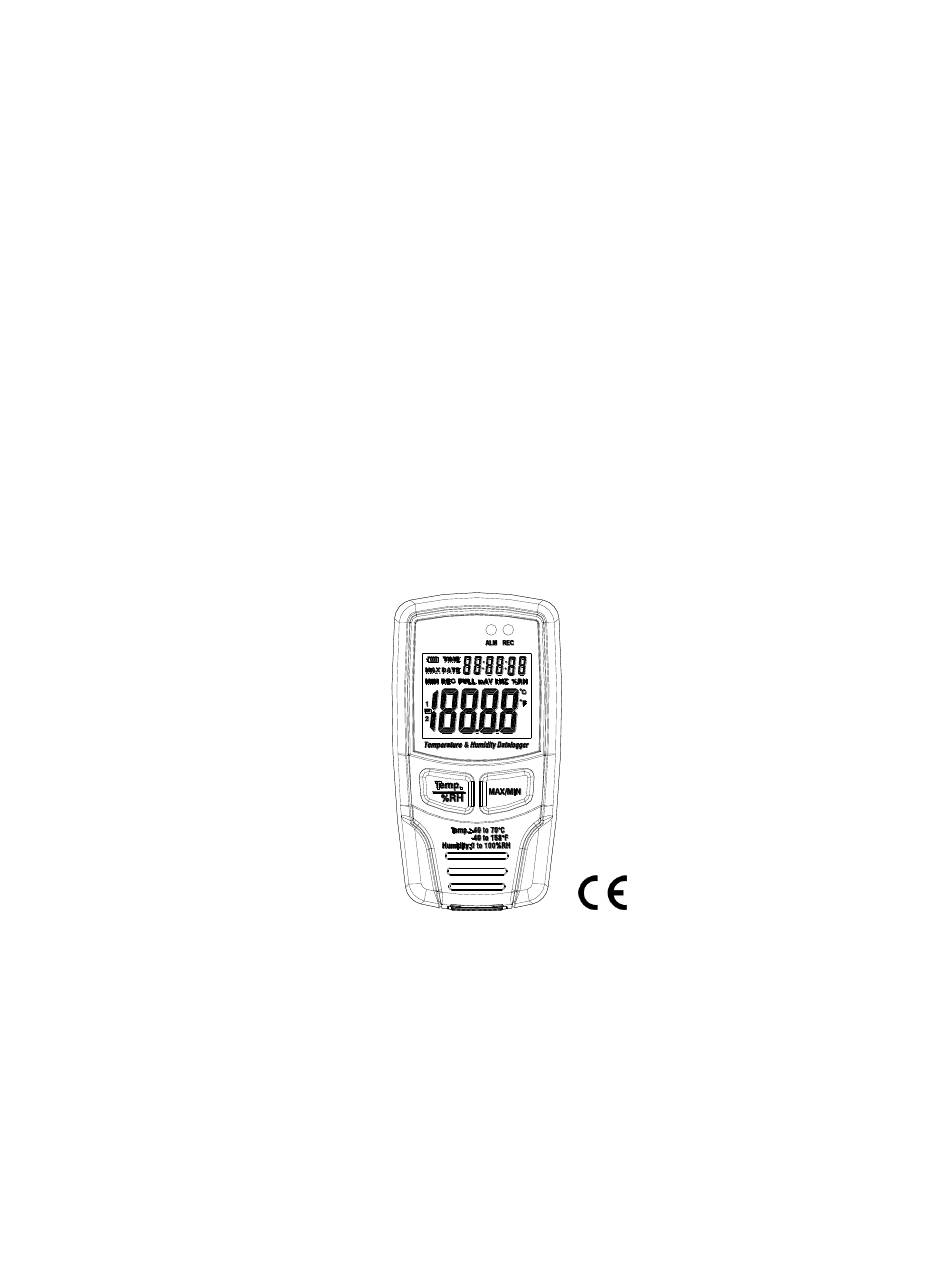

- Page 1 INSTRUCTION MANUAL Temperature & Humidity Datalogger Model ST-172 MTP Instruments...
-
Page 2: Table Of Contents
Table of Contents Introduction Page 1 Functions and Technical Specifications Page 1 Display Description Page 2 Software Installation Page 3 Operating Mode Page 4 Correct Time Page 4 Datalogger Setup Page 5 Datalogger Download Page 6 Zoom in Page 6 Zoom out Page 7 Customize the Graph Window... -
Page 3: Introduction
Introduction Congratulations on the purchase of your Temperature and Humidity Datalogger, model MTP ST-172. This Temperature and Humidity Datalogger is designed with a high accuracy temperature and humidity sensor. The datalogger is provided with features of high accuracy, fast response and stability. It is widely used for monitoring and collecting data of environment temperature and humidity. -
Page 4: Display Description

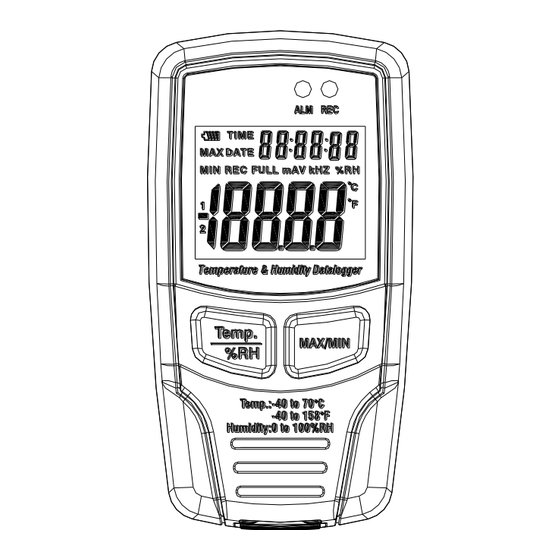

Technical Specifications: Resolution: 0.1% RH, 0.1°C Memory: 32700 values Measuring cycle: 1s to 24h Analysis software: 2000/XP/Vista Display Description Battery symbol. When battery is exhausted, symbol will be displayed. Replace battery when symbol appears. Battery life is more than 3 months 2. -
Page 5: Software Installation
12. MAX/MIN: Press the MAX/MIN button to view the recorded Max and Min values with the time and date they were recorded. While in MAX/MIN mode, if no button is pressed for 40 seconds, the display will automatically exit the MAX/MIN mode and return to the real time display. -
Page 6: Correct Time
Main Menu Save Save the recorded data to the disk Open a saved file Open Correct time Setup of time and date on datalogger Setup of datalogger Datalogger Setup Download Data Download data from the datalogger Show the recorded data as a graph Show Graph Show List Show the recorded data as a list... -
Page 7: Datalogger Setup
Datalogger Setup Note: Any stored data will be permanently erased when Setup is finished. To enable you to save data before it is lost, click on ʺCancelʺ and download the data. Always ensure that the remaining charge in the battery is sufficient to last the complete duration of your logging exercise. -
Page 8: Datalogger Download
Datalogger Download To transfer the readings stored in the logger to the PC: a. Connect the datalogger to the same USB port used when the datalogger was initialized. b. Open the HT datalogger software program if it is not running. c. -
Page 9: Zoom Out
Zoom out: Click on to zoom out and return to full view. Setup the Temp. and RH Y Axis. Setup the Background color, Grid color, Temperature and RH color. Customize the graph window Allows the user to select which data to view as a trace. ... -
Page 10: Save File As / Open Saved File
MTP Warranty MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. - Page 11 Les Instruments Instruments Head Office 4409, Charleroi street Montreal-North, Quebec H1H 1T6 Telephone: (514) 326-7167 Fax: (514) 326-7835 Toll Free Number: 1-888-326-7167 Web site: www.mtpinc.com E-mail address: info@mtpinc.com Distributed by:...
