Summary of Contents for Total Gym ELEVATE PULL-UP

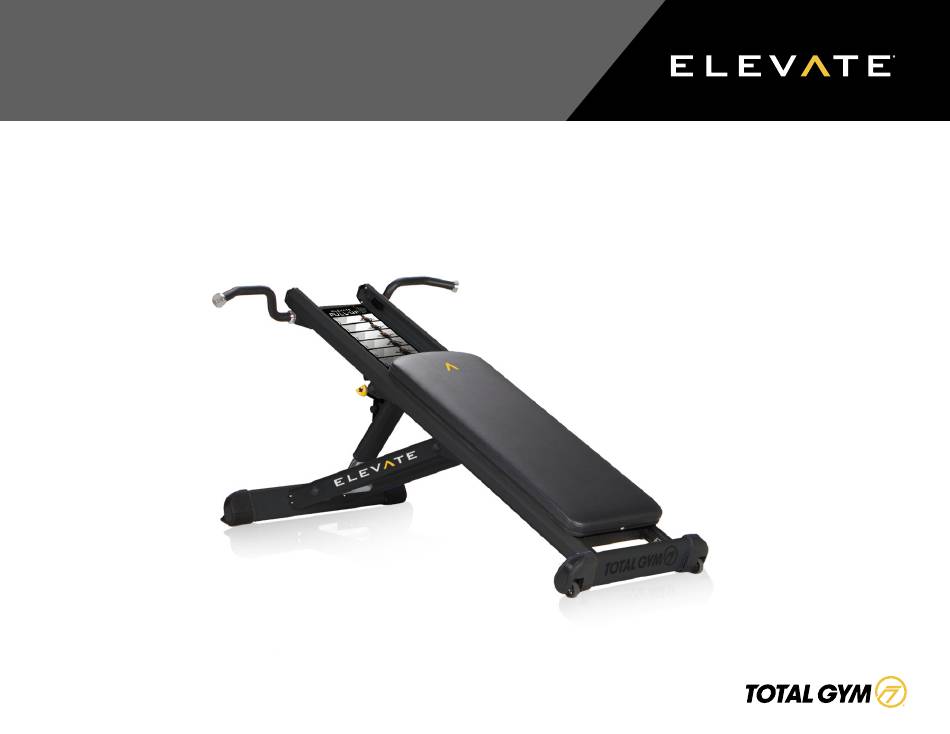

- Page 1 ELEVATE PULL-UP OWNER’S GUIDE ®...
- Page 2 Your Total Gym product arrives with some assembly required. In this Owner’s Guide, you will find information how to assemble your ELEVATE Pull-Up, and its component parts, operation, maintenance and care. Additionally, you will find usage and safety tips, as well as safety precautions and warranty information.
-
Page 3: Table Of Contents
ELEVATE ® PULL-UP OWNER’S GUIDE TABLE OF CONTENTS Safety Precautions ..................4 Getting Started .....................8 Parts Identifier .....................5 Exercise Instructions ..................9 Specifications and Limitations ...............6 Maintenance and Care ................. 10 Maintenance Schedule ....................10 Assembly Instructions ................... 7 Warranty Information .................. 11 USA Warranty ........................ -
Page 4: Safety Precautions
• Follow instructions in this Owner’s Guide for using the unit. Improper use could result in severe or fatal injury. Your Total Gym ELEVATE Pull-Up must be bolted to the floor can assist in planning a program that is age and ability specific. Certain on a flat, solid surface with nonskid material underneath. -
Page 5: Parts Identifier
ELEVATE ® PULL-UP OWNER’S GUIDE PARTS IDENTIFIER Rail End Caps Handle Bar Handle Bar Left Rail Incline Release Lever Glideboard Incline Strut Anchor Foot Rail Base Rear Struts Right Rail Rear Base Base Foot Transport Wheel... -
Page 6: Specifications And Limitations
ELEVATE ® PULL-UP OWNER’S GUIDE SPECIFICATIONS AND LIMITATIONS • Glideboard Range of Motion: 31 inches [78 cm] • Weight Capacity: Maximum user weight capacity of 400 lbs [181 kg] • Resistance levels vs % of body weight: Incline Level 1 2 % BW 30 35 40 45 50 55 60 •... -
Page 7: Assembly Instructions
Hinges STEP 7. Turn the unit right-side up upside down and install the Handle Bars and position your ELEVATE Pull-Up in a STEP 1. Carefully unpack all the parts and using the 5 mm Hex Wrench and four permanent location then bolt to floor from the Information &... -
Page 8: Glideboard: Roller Removal And Assembly
GETTING STARTED ROLLER REMOVAL AND ASSEMBLY As a facility offering the use of a ELEVATE Pull-Up to customers, or as a personal user of the product, you (as owner of the product), assume the responsibility to STEP 1. Remove the six M6 screws STEP 4. -
Page 9: Exercise Instructions
ELEVATE ® PULL-UP OWNER’S GUIDE EXERCISE INSTRUCTIONS INCLINE BODYWEIGHT INCREASE RESISTANCE DECREASE RESISTANCE Follow the instructions on the placard PULL-UP as illustrated by performing the To increase resistance, raise rails to To decrease resistance, lower rails to desired number of sets and repetitions desired level. -
Page 10: Maintenance And Care
ELEVATE ® PULL-UP OWNER’S GUIDE MAINTENANCE AND CARE MAINTENANCE SCHEDULE Your ELEVATE Pull-Up unit will offer you years of easy operation if you follow these DAILY WEEKLY MONTHLY simple tips for maintenance and care. With periodic cleaning, moving parts and 1. -
Page 11: Warranty Information
WARRANTY CLAIMS Model Name: ELEVATE Pull-Up, Part # 5800-B1 Total Gym treats warranty claims as a priority. To process these quickly, a Return Serial Number ________________________________________________________________________ Merchandise Authorization (RMA) number is required to properly link your merchandise with your claim. Total Gym does not accept returned merchandise without an TotalGym.com... - Page 12 5225 Avenida Encinas Suite C, Carlsbad CA 92008 ©2017 Total Gym Global Corp. All rights reserved. Total Gym and ELEVATE are registered trademarks of TGG Global Corp. Unauthorized duplication of this booklet is punishable by law. Covered by one or more of U.S. Pat. Nos. D574,901, 7,775,950, 8,075,457, 7,938,763, 8,834,332, D493,853, 6,921,355, 7,503,880, 7,270,628, D694347, 7,892,159, 8,702,575, 5,967,955, D734,409, D741,960, 361898, D741,420: 5,967,955; 6,921,355;...
