- Page 1 Operation Manual: AS5145B-EK-AB-STM1.0 AS5145B Eval-Kit Stepper Motor www.ams.com Revision 1.1 / 01/23/2014...
-
Page 2: Table Of Contents
AS5145B Eval-Kit Stepper Motor Table of Contents General Description ....................... 2 Package and Board Description .................... 2 How to get the Eval-Kit running ..................... 4 Mechanical Design Considerations ..................5 Schematics, Layout ....................... 6 Copyright ............................. 9 Disclaimer ............................ 9 Contact Information ........................ -
Page 3: General Description

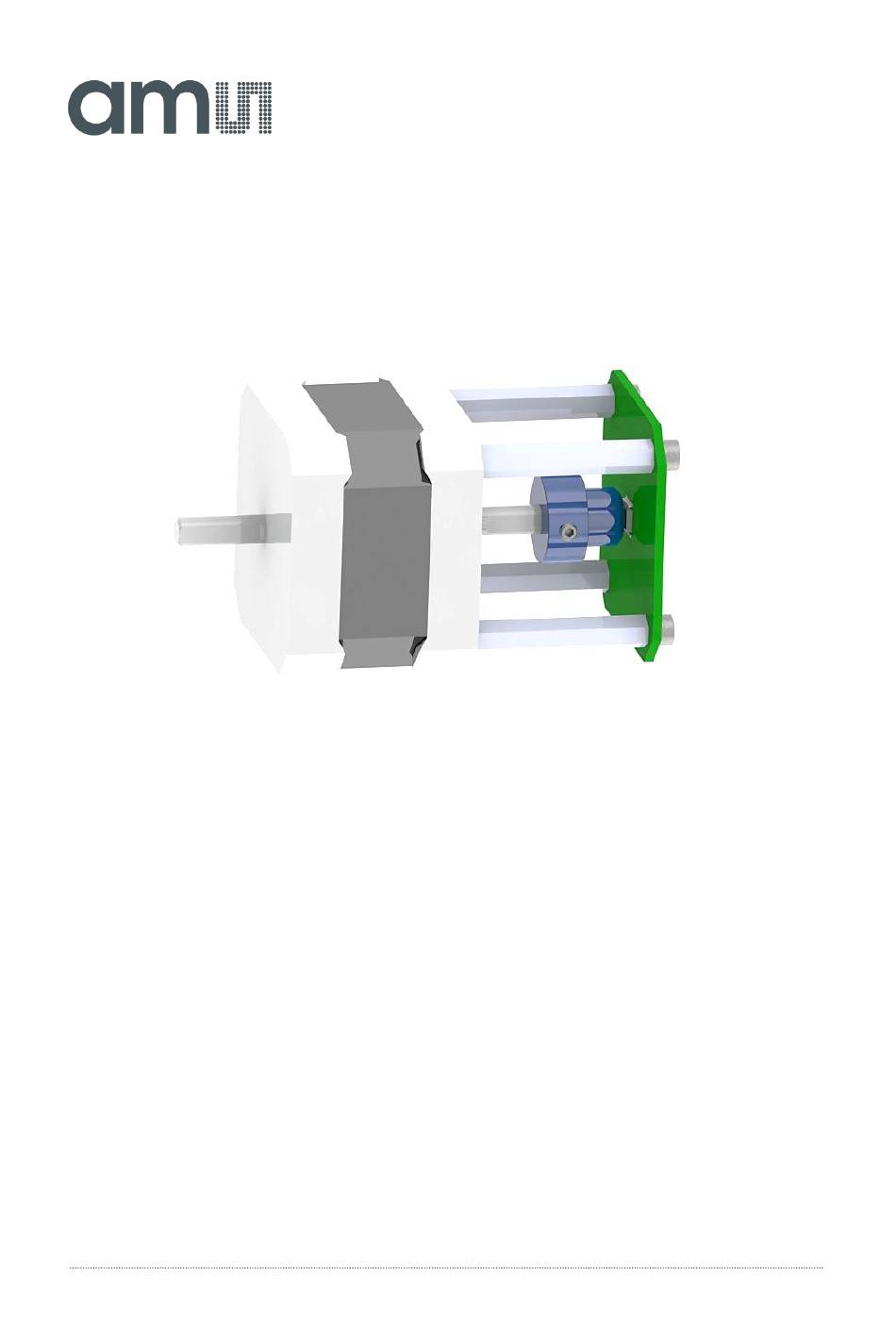

AS5145B Eval-Kit Stepper Motor 1. General Description The AS5145B Eval-Kit is designed to adapt standard size stepper motors with a contactless rotary position sensor. Rotation of the magnet holders is sensed by the rotary position sensor, soldered on the PCB board. - Page 4 AS5145B Eval-Kit Stepper Motor Figure 1: Connector Table 1: Connector pinout Description Info Ground Data Output of SSI Clock Input of SSI Chip Select 3.3V-Regulator Output. Positive Supply Voltage. Programming Input. MagINCn magnet field status indicator MagDECn magnet field status indicator...
-
Page 5: How To Get The Eval-Kit Running
AS5145B Eval-Kit Stepper Motor 3. How to get the Eval-Kit running Figure 2: 5V Power Option 4.5…5.5V Figure 3: 3V Power Option 3…3.6V www.ams.com Revision 1.1 / 01/23/14 page 4/9... -
Page 6: Mechanical Design Considerations
(Not included) Stepper Motor Distance Bolts (Not included) Screws AS5145B 0.5mm ...1.5mm Magnet Holder The AS5145B board can be mounted on double shaft motors. (See figure 4) Screws and distance bolts are not included. www.ams.com Revision 1.1 / 01/23/14 page 5/9... -
Page 7: Schematics, Layout
AS5145B Eval-Kit Stepper Motor 5. Schematics, Layout Figure 5: Schematic 3.3V MagINCn MagINCn VDD5V MagDECn MagINCn MagDECn VDD3V3 MagDECn A_LSB_U B_DIR_V 10u/10V 10u/10V PWM_LSB 3.3V Index Index Index_W PROG PROG Prog Header 7X2A AS5145B 100n Figure 6: Figure 7: Top Layer... - Page 8 AS5145B Eval-Kit Stepper Motor Figure 8: Figure 9: Magnet Holder Magnet Holder Dimensions Ø 10mm magnet Ø * Ø 15mm ±0.3 *Ø 5mm Grub screw for fixing on the shaft of the *Ø 6mm motor. *Ø 8mm *Ø 10mm Figure 10: Layout Dimensions www.ams.com...
- Page 9 AS5145B Eval-Kit Stepper Motor 6. Ordering Information Table 5: Ordering Information Ordering Code Description AS5145B-EK-AB-STM1.0 AS5145B Eval-Kit Stepper Motor with ABI, SSI, PWM Revisions History Revision Date Description August 6, 2012 First version Januar 23, 2014 Updated to new board design www.ams.com...
-
Page 10: Copyright
AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein. - Page 11 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: AS5145B-EK-AB-STM1.0...
