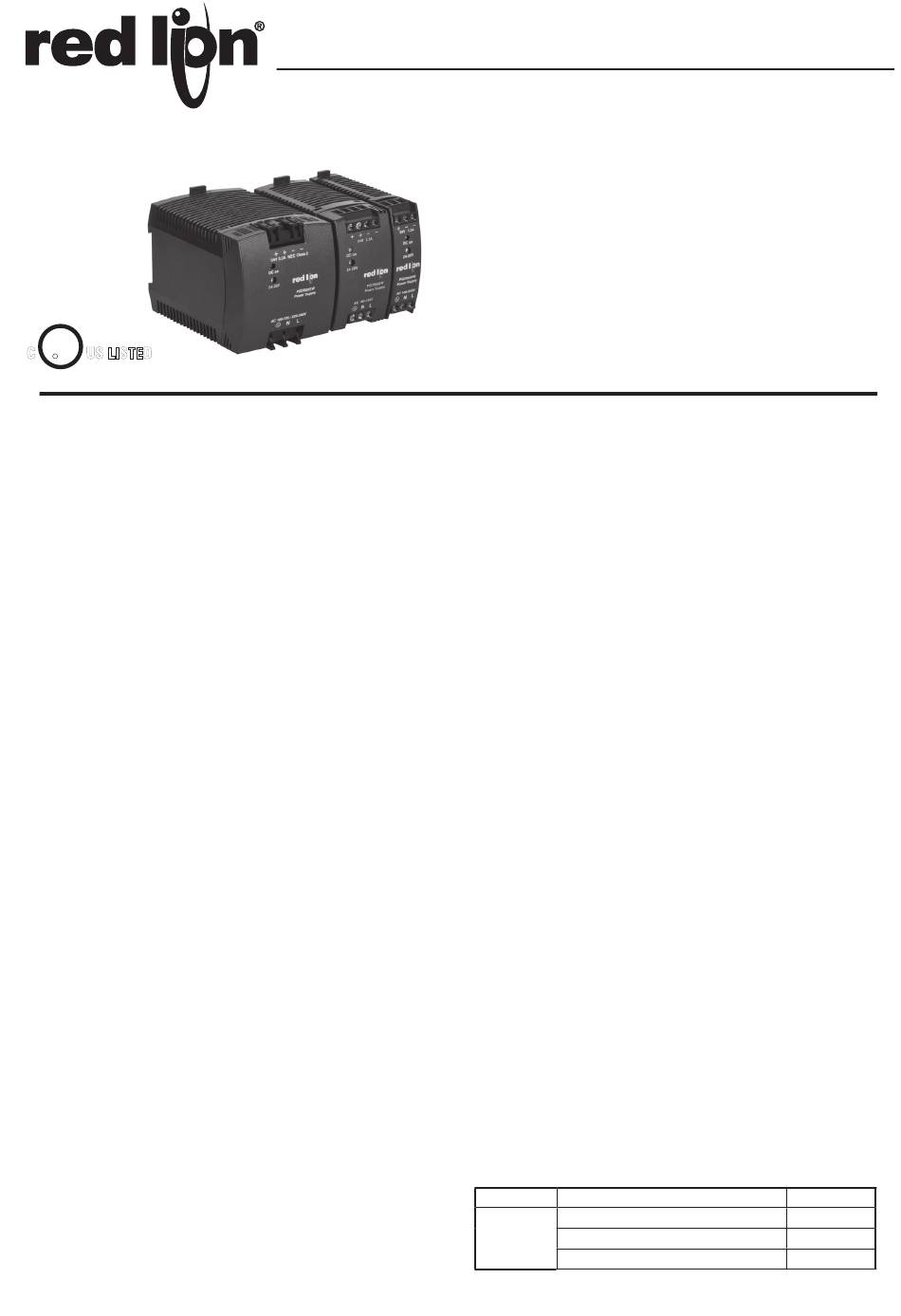

MODEL PSDR - 24 V POWER SUPPLY
U L
C US LISTED
R
IND. CONT. EQ.
18WM
DESCRIPTION
The compact PSDR power supplies are industrial input voltage supplies
with primary switched-mode regulator technology and low output ripple. The
supplies all have adjustable output voltages from 24 to 28 VDC and the
outputs are electronically protected against overloads and short circuits.
SPECIFICATIONS
1. POWER REQUIREMENTS
PSDR030W AND PSDR060W:
AC Input Voltage: 100 to 240 VAC (-15% / +10%), 50/60 Hz
DC Input Voltage: 110 to 300 VDC (-20% / +25%)
Current Consumption:
PSDR030W: 0.54 @ 120 VAC, 60 Hz / 0.3 A @ 230 VAC, 50 Hz
PSDR060W: 0.98 @ 120 VAC, 60 Hz / 0.58 A @ 230 VAC, 50 Hz
Maximum Voltage L or N to Earth: 264 VAC, 375 VDC
PSDR095W:
AC Input Voltage: 100 - 120 VAC / 220 to 240 VAC (-15% / +10%),
50/60 Hz (auto select input)
DC Input Voltage: 290 VDC (-25% / +30%)
Current Consumption: 1.63 @ 120 VAC, 60 Hz / 0.95 A @ 230 VAC, 50
Hz
Maximum Voltage L or N to Earth: 264 VAC / 375 VDC
2. FUSE: Internally fused for use in branch circuits supplying up to 20A. If
less than 20A breaker is used, a minimum value of 10A B- or 6A C- (60 W
and 95 W) or 6A B- or 3A C- (30 W) breaker should be used to avoid
nuisance tripping.
3. INPUT INRUSH CURRENT: (Peak at 40 °C ambient and cold start)
PSDR030W: 18 A @ 120 VAC, 35 A @ 230 VAC
PSDR060W: 16 A @ 120 VAC, 32 A @ 230 VAC
PSDR095W: 22 A @ 120 VAC, 37 A @ 230 VAC
4. OUTPUT VOLTAGE: 24 to 28 VDC, adjustable via potentiometer
5. OUTPUT POWER:
PSDR030W: 30 W (1.3 A @ 24 VDC, 1.1 A @ 28 VDC)
PSDR060W: 60 W (2.5 A @ 24 VDC, 2.1 A @ 28 VDC)
PSDR095W: 95 W (3.9 A @ 24 VDC, 3.4 A @ 28 VDC)
6. OUTPUT RIPPLE & NOISE: 50 mVp-p (50 ohm measurement, 20 MHz
bandwidth)
7. OUTPUT OVERVOLTAGE PROTECTION:
PSDR030W: 38 VDC
PSDR060W: 32.5 VDC
PSDR095W: 36 VDC
8. EFFICIENCY: (At 120 VAC, 60Hz / 230 VAC, 50Hz)
PSDR030W: 88.5% / 89.4%
PSDR060W: 87.8% / 89.7%
PSDR095W: 89% / 90.0%
9. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -10 to 60 °C
Storage Temperature: -40 to 85 °C
Humidity: 5 to 95 % RH, non-condensing
Vibration in acc. with IEC 60068-2-6: 2 g
Shock in acc. with IEC 60068-2-27: 30 g 6 ms, 20 g 11 ms
PU-372.010.20-XXB
z 30 W, 60 W OR 95 W MODELS
z ADJUSTABLE OUTPUT VOLTAGE
z PARALLEL OR SERIES USE CAPABILITY (30 & 60 ONLY)
z MOUNT ON 35 MM DIN RAILS
Degree of pollution in acc. with EN 50178, IEC 62103: 2
Degree of protection in acc. with EN 60529: IP20
Class of protection in acc. with IEC 61140: 1, PE connection required
(ground)
10. CERTIFICATIONS AND COMPLIANCES:
CE Marking
CE mark is in conformance with EMC directive 2004/108/EC, the low-
voltage directive (LVD) 2006/95/EC and the RoHS directive 2011/65/
EU.
EMC Immunity: EN 61000-6-1, EN 61000-6-2
EMC Emission: EN 61000-6-3, EN 61000-6-4, FC Part 15 Class B
Safety: EN 60950-1
UL Listed: File# E171375
11. ISOLATION VOLTAGE: Input/Output
PSDR030W and PSDR095W: 3 kVAC
PSDR060W: 4 kVAC
12. INSTALLATION: Use DIN-rails acc. to EN 60715 or EN 50022 with a
height of 7.5 or 15mm.
13. MOUNTING:
Clearance Left/Right: 0 mm, or 15 mm if adjacent device is a heat source.
Clearance Top: 40 mm
Clearance Bottom: 20 mm
14. CONNECTIONS:
Use appropriate copper cable, designated for a minimum operating
temperature of:
60 °C for ambient temperatures up to 45 °C
75 °C for ambient temperatures up to 60 °C
PSDR030W AND PSDR060W:
Terminals: Screw clamp. All unused terminals must be closed.
Wire: 20 to 10 AWG 0.5-6 mm
Max wire diameter at terminal: 0.11" (2.8 mm), Ferrules are acceptable
Wire stripping length 0.28 inch (7 mm).
Terminal Torque: 9 lb.inch (1 Nm)
PSDR095W:
Terminals: Spring clamp. All unused terminals must be closed.
Wire: 28 to 12 AWG 0.3-2.5 mm
Max wire diameter at terminal: 0.088" (2.25 mm), Ferrules are acceptable
Wire stripping length 0.25 inch (6 mm).
15. CONSTRUCTION: Case body is black, high impact plastic. IP20 touch
safe. Protection Class I, PE connection required (ground).
16. WEIGHT:
PSDR030W: 4.9 oz. (140 g)
PSDR060W: 8.8 oz. (250 g)
PSDR095W: 12.3 oz. (360 g)
ORDERING INFORMATION
MODEL NO. DESCRIPTION
24 VDC 30 W @ 1.25 A Power Supply
PSDR 24 VDC 60 W @ 2.5 A Power Supply
24 VDC 95 W @ 3.9 A Power Supply
1
Bulletin No. PSDRW-D
Drawing No. LP0954
Released 08/14
2 2
solid wire, 0.5-4 mm stranded wire.
2 2
solid wire, 0.3-2.5 mm stranded wire.
PART NUMBER
PSDR030W
PSDR060W
PSDR095W
