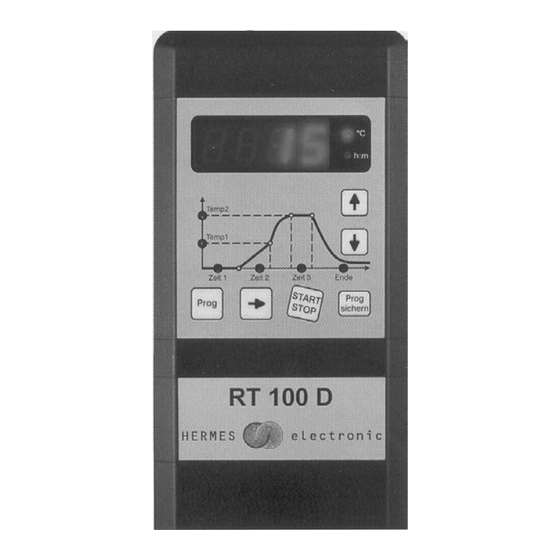

Program Controller RT100D
OPERATING INSTRUCTIONS
HERMES electronic GmbH
Am Handwerkerpark 1
D-45309 Essen
Telephone:
(+49) 201.89911.0
Telefax:
(+49) 201.89911.20
Email:
kontakt@hermes-electronic.de
Internet:
http://www.hermes-electronic.de
© 2004 HERMES electronic GmbH

Advertisement

loading
Need help?

Need help?

Do you have a question about the RT 100 D and is the answer not in the manual?

Questions and answers

Summary of Contents for Hermes RT 100 D

  • Page 1 Program Controller RT100D OPERATING INSTRUCTIONS HERMES electronic GmbH Am Handwerkerpark 1 D-45309 Essen Telephone: (+49) 201.89911.0 Telefax: (+49) 201.89911.20 Email: kontakt@hermes-electronic.de Internet: http://www.hermes-electronic.de © 2004 HERMES electronic GmbH...
  • Page 2 Program Controller RT100D Contens Notiz page Introduction 2. First Start . 3. Description of the face 3.1 Using of fixed programs 3.2 Program Adjustment 4. Use of Program Datas 5. Error Messages 6. Technical Datas...

  • Page 3: Technical Datas

    Program Controller RT100D 1. Introduction 6.0 Technical Datas The controller RT100D is used for controlling of electrical kilns for ceramics and glas fireing. Powerline 200 bis 250Volt 50 / 60Hz The RT100D is able to control exactly the temperature and temperature Fuse 0,04 A T rate in a fireing process.

  • Page 4: First Start

    Program Controller RT100D 5.0 Error Messages 2. First Start The control unit can check a lot of functions by itselfs. If the control unit may find any mistake, the kiln The control unit has a plug for the connection with the kiln. This plug is safe will be switched off and the display shows a faulty number: against wrong connection and it fits only in one position.
  • Page 5 Program Controller RT100D 3. Description of the face 4.0 Use of Program Datas After you have pressed the start switch the control unit will start the program . The first point of working is the delay time.After you have programmed the delay time temperature in °C the controller wait till this time is zero.
  • Page 6 Program Controller RT100D 3.2 Program Adjustment switch: Prog switch: If you like to adjust program datas you should use the following description: Please load and start your programm ( see section 3.1) and press the following switches: please press this switch a few times , if you get the right program number on switch: start/stop...
