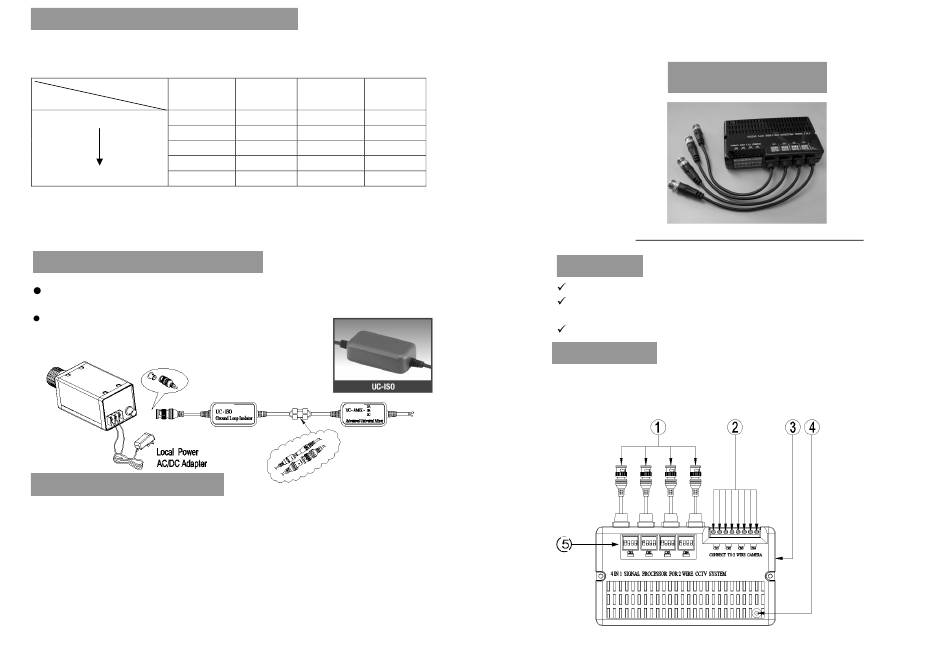

2Y-LINK CI04-ASP User Manual

Color/Brightness Switch adjustment
DIP Switch setting : (ON – "1", OFF – "0" )
1
DIP NO.
Color/Brightness
Ascending Level
LOW
0
1
1
1
HIGH
1
Choose the best combination of DIP switch setting for good picture
quality. Picture quality may be affected by several factors, such as wire
gauge, length of cable, camera, environment...etc.
Local Power for Camera
For camera power over 8W (12VDC, 680mA) and/or covering
extended distances, local Linear P/S Adaptor for camera is required.
UC-ISO Ground Loop Isolator may be required to
eliminate electrical noise and hum if using
Switching Mode P/S Adaptor
Specification of CI04-ASP
Video output 1Vp-p 75-ohm
Power Supply 48VDC
Operating temperature -10°C ~ + 50°C
Dimensions 145mm x 80mm x 33mm
Suitable for any Camera with following specification:
Each Camera Rating : 12VDC, 680mA. Max.
Each Camera Video output : 1Vp-p 75-ohm
2 3 4
0 0 0
0 0 0
1 0 0
1 1 0
1 1 1
4
2Y-LINK
Advanced Universal CCTV Signal Processor
User Guide
User Guide
4-CHANNEL SIGNAL PROCESSOR CI04-ASP
Features
Does not require coaxial cable
Wired with only one two-wire bell cable to transmit both video signal
& power
Simple and easy Installation
Overview
1: 4 BNC male plug 2: 8 two-wire terminal
3: DC socket 4: Power LED indicator
5: Color/Brightness Switch
1
