Summary of Contents for Nurofen Fever Smart

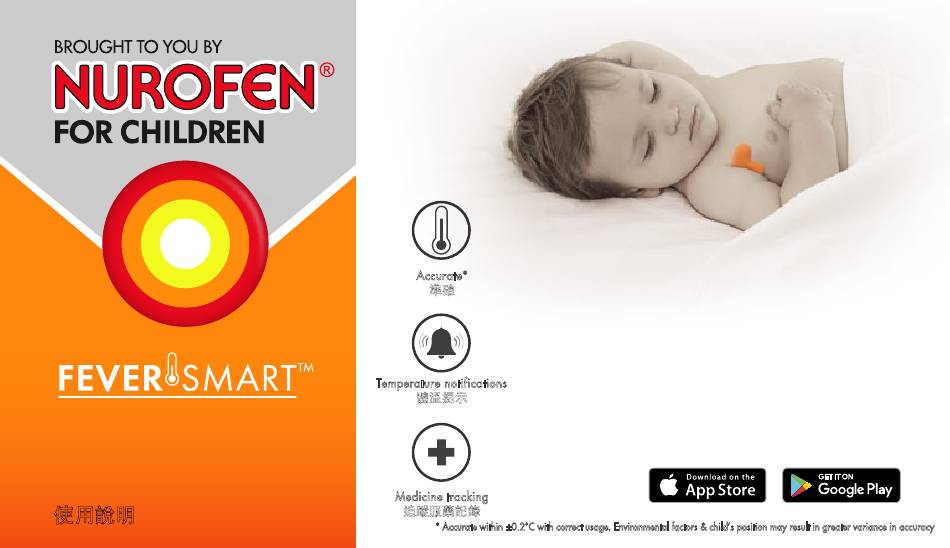

- Page 1 Accurate* 準確 Temperature notifications 體溫提示 TEMPERATURE MONITOR 兒童體溫監測儀 INSTRUCTIONS FOR USE Medicine tracking 使用說明 追蹤服藥記錄 * Accurate within ±0.2°C with correct usage. Environmental factors & child’s position may result in greater variance in accuracy...
-
Page 2: Table Of Contents
ENGLISH CONTENTS Page • What’s in the Box Page • Getting started Page • Apply the Monitor to your Child Page • Bluetooth Range Booster Page • Important Page • FeverSmart™ temperature - Guidance Page • FeverSmart™ temperature Screens Page •... -
Page 3: What's In The Box
ENGLISH WHAT’S IN THE BOX? Please read the instructions carefully before using FeverSmart™ Temperature Monitor. Keep the instructions in a safe place for future reference. MONITOR BASE STATION This is placed on your 1. Boosts Bluetooth signal ® from Monitor to phone child to measure their temperature 2. -
Page 4: Getting Started
ENGLISH GETTING STARTED Insert batteries to Base Station Download the FeverSmart™ App To take the Monitor out of sleep mode, place it on Create an account and pro le for your the Base Station for at least 15 seconds once the child. - Page 5 ENGLISH GETTING STARTED Pair Monitor and Phone Enter 8 digit key If you haven’t already done so, go This is located on the inside into your child’s pro le and press of the Base Station tray. Start. Hold the Monitor close to your phone and tap the button to start pairing.
-
Page 6: Getting Started
ENGLISH GETTING STARTED Please take the time to view the ‘How to Video’ in the App which will take you through the step by step process on how to apply the Monitor to your child. Apply Adhesive Patch to Monitor Remove the backing on the side labelled ‘2’... -
Page 7: Apply The Monitor To Your Child
Please refer to the trouble shooting questions in the settings section of the App, or call customer service if any issues occur during setup. For customer service contact details visit nurofen.com and select your country... -
Page 8: Bluetooth Range Booster
ENGLISH BLUETOOTH RANGE BOOSTER ® The Base Station boosts the Bluetooth signal from the Monitor. ® The Base Station must be kept within 1.5m/4.5ft from the Monitor in order for it to boost the signal effectively. Please ensure the Base Station is out of reach of the child... -
Page 9: Important
ENGLISH IMPORTANT Bluetooth communication consumes phone battery, ensure your phone is suf ciently ® charged to stay powered throughout the use period, or plug it in when in use. You can leave the App at any time, however do not close the App down as your temperature session will be lost. -
Page 10: Feversmart™ Temperature - Guidance
ENGLISH FEVERSMART™ TEMPERATURE – GUIDANCE FeverSmart™ is designed to accurately measure armpit temperature which is approximately 1°C lower than core Core body temperature +1ºC body temperature or 0.5°C lower than an ear or oral Ear/Oral temperature +0.5ºC temperature. This is completely normal because Armpit temperature temperatures differ according to site of measurement on the body. -
Page 11: Feversmart™ Temperature - Guidance
ENGLISH FEVERSMART™ TEMPERATURE – GUIDANCE Using the colours shown below, your FeverSmart™ Temperature Monitor clearly indicates whether your child's temperature is normal, moderate or high based on their age. Sometimes a hot or cold room temperature can in uence temperature readings, 0 –... -
Page 12: Feversmart™ Temperature Screens
ENGLISH FEVERSMART™ TEMPERATURE SCREENS The temperature screen shows your child's current armpit temperature, the graph below this shows your child's temperature over time. Rotate the phone to horizontal to see the temperature over longer periods. Dark Grey: Green: Yellow: Red: Warm up. -
Page 13: Notifications
ENGLISH NOTIFICATIONS Warm Up When the Monitor has nished warming up. High Temperature Child's temperature reaches a high level. Monitor May Have Fallen Off Check that the Monitor is placed correctly. Low Battery Alert when Monitor reaches low battery levels. Connection Error When the connection between the Monitor and the phone has been lost. -
Page 14: The Feversmart™ App
ENGLISH THE FEVERSMART™ APP Medication Symptom CLICK CLICK Home Screen Add a reminder Record a Symptom When you last By logging in the gave medication App's tracker... -
Page 15: End Of Your Temperature Session
ENGLISH END OF YOUR TEMPERATURE SESSION Storing the Monitor Place Monitor Remove the Adhesive Patch Store the Monitor and unused To remove the Monitor from your on Base Station Adhesive Patches in the Base child, use your ngers to slowly Station. -
Page 16: Base Station Charging Lights
ENGLISH BASE STATION CHARGING LIGHTS It is advised that you charge the Monitor for a minimum of 2 hours. The Base Station will display the following lights to indicate charging: LED Light on for the rst 15 seconds - AAA batteries are fully functional. LED Light blinks at a 2 second frequency - the Monitor is charging LED Light blinks at a 5 second frequency - the Monitor is fully charged LED Light blinks for rst 15 seconds - AAA batteries are not full and have limited life left... -
Page 17: Intended Use And Precautions
ENGLISH INTENDED USE AND PRECAUTIONS (CONTINUED OVERLEAF) Intended use: The wireless FeverSmart™ Temperature Monitor is a non-invasive and re-usable electronic device for home use. This product is intended for non-urgent ambulatory continuous armpit body temperature Monitoring for all ages. Precautions: 1. - Page 18 7. Adhesive Patch not for use in premature babies, babies considered to have low birth weight or are small for gestational age. Note - this product does not contain medicine For customer carelines visit nurofen.com and then select your country...
-
Page 19: Troubleshooting
Possible Causes: Solutions: Unusual 1. The monitor might be damaged. 1. For customer carelines, visit nurofen.com or go to ‘support’ in the ‘settings’ section of the app. 2. The monitor might not be worn correctly. temperature 2. Check device’s location or contact with the 3. -
Page 20: Technical Specification
ENGLISH TECHNICAL SPECIFICATION Product name: Nurofen for Children FeverSmart™ Temperature Monitor Catalog/Model: VV-210 Size: 61x41mm Thickness: 5.5mm Weight: 7.3g Duration of continuous battery use: 7 days Product shelf life: 3 years Transmission distance: 40m (with Base Station, unobstructed view) Accuracy: ±... -
Page 21: Certification And Disclaimer
ENGLISH CERTIFICATION & DISCLAIMER For private households: Information on Disposal for Users of Waste Electrical and Electronic Equipment (WEEE) Disposal of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. -
Page 22: Battery Removal (For Disposal Only)
ENGLISH BATTERY REMOVAL (FOR DISPOSAL ONLY) The Base Station contains AAA batteries and the Monitor contains a lithium battery. Refer to proper disposal instructions below: 1. To remove the lithium battery, cut the monitor. The battery is located in the centre of the monitor. 2. -
Page 23: Electromagnetic Compatibility (Emc) Table
ENGLISH ELECTROMAGNETIC COMPATIBILITY (EMC) TABLE Guidance and manufacturer’s declaration – electromagnetic immunity Table 1 Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic environment – guidance Electrostatic Electrostatic Floors should be wood, concrete, or ceramic tile. +/- 6 kV contact discharge (ESD) discharge (ESD) If floors are covered with synthetic material, the... - Page 24 ENGLISH ELECTROMAGNETIC COMPATIBILITY (EMC) TABLE Table 2 (Part 1) Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic environment – guidance Radiated RF 3 V/m 3 V/m Portable and mobile RF communications IEC 61000-4-3 80 MHz to 2.5 GHz equipment should be used no closer to any part of FeverSmart™...
- Page 25 ENGLISH ELECTROMAGNETIC COMPATIBILITY (EMC) TABLE Table 2 (Part 2) Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic environment – guidance Radiated RF 3 V/m 3 V/m Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter IEC 61000-4-3 80 MHz to 2.5 GHz manufacturer and d is the recommended separation...
-
Page 26: Electromagnetic Compatibility (Emc) Table
ENGLISH ELECTROMAGNETIC COMPATIBILITY (EMC) TABLE Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity Separation distance according to frequency of transmitter Rated maximum output power of transmitter 80MHz to 800 MHz 800 MHz to 2.5GHz 150 kHz to 80 MHz d = 1.2 √P d = 1.2 √P d = 2.3 √P... - Page 27 ENGLISH DEFINITION OF SYMBOLS 106kPa Atmospheric Radio emission WEEE icon pressure range 70kPa Legal Manufacturer Read manual Humidity range Keep out of Type BF applied part Date of manufacture direct sunlight Authorised 40°C 104°F Temperature limit Representative in the Non Sterile EC REP 10°C European Community...
- Page 28 Google Play™ and Google Play™ logo are Trade Marks of Google, Inc. 0086 Bluetooth® and Bluetooth® logo are registered Trade Marks owned by Bluetooth SIG, Inc., and any use of such marks by Reckitt Benckiser Group is under licence. Nurofen is a Trade Mark of the Reckitt Benckiser Group...
