acutherm ADJ -W Installation, Operation And Maintenance Manual

WIRELESS WALL ADJUSTER
INSTALLATION, OPERATION AND MAINTENANCE
M od els: A D J -W Wireless Wall A d ju st er
Compatible with all Type –HC, –CW and –C
Therma-Fuser™ Diffusers
C O N T E N T S
ORDERING ............................................................................. 1
DAMAGED FREIGHT CLAIM PROCEDURES ....................... 1
STORAGE ................................................................................ 1
INSTALLATION ...................................................................... 1
DISPLAY INDICATORS ......................................................... 2
CONFIGURATION .................................................................. 2
OPTIONS ................................................................................ 3
RESETTING PROGRAM ......................................................... 4
ERASING PROGRAM ............................................................. 4
TROUBLESHOOTING ............................................................ 4
TWO YEAR WARRANTY ........................................................ 5
O R D E R I N G
Order an Adjuster and a Remote Adjust Option for each
Therma-Fuser™ Diffuser to be connected to the Adjuster.
1. Order one (1) Wireless Wall Adjuster for each space
requiring easy temperature control adjustment.
ADJ-W
2. Order one (1) Master Diffuser and up to four (4)
Secondary diffusers per adjuster.
3. Order a wireless remote adjust option for each
Master Diffuser
-WA2M for Model TF-HC and TK-HC diffusers
-WA1M for All other model diffusers
4. Order a remote adjust option for each Secondary
Diffuser
-DA2 for Model TF-HC and TK-HC diffusers
-DA1 for All other model diffusers
D A M A G E D F R E I G H T C L A I M
P R O C E D U R E S
When the Wireless Wall Adjuster units are received,
inspect for damage which may have occurred during
shipment. If damage is evident, it should be noted on
the carrier's freight bill. A written request for inspection
by the carrier's agent should be made at once.
S T O R A G E
Do not store for prolonged times at temperatures
exceeding 130˚F/ 56˚C. Acceptable humidity level is 5-
95% relative humidity non-condensing.
Copyright © Acutherm 2011
I N S T A L L A T I O N
Wireless Wall Adjuster Location
1. Locate the diffuser in as bright a light as possible,
but not in direct sunlight as the photovoltaic cell is
optimized for fluorescent lighting. The Adjuster will
operate in light levels as low as 100 lux or 10 foot-
candles.
2. If the Room Temperature Sensor Option is installed
(see Options) then locate the Adjuster on an interior
wall within the space to be monitored.
Wireless Wall Adjuster Installation
The Adjuster is suitable for mounting directly onto
the wall or onto a standard 2x4 electrical box.
1. Open the adjuster. Slide the adjuster up from the
back plate approximately 1/4"/6mm to free the
adjuster from the back plate (see Fig. 2 Opening
Adjuster).

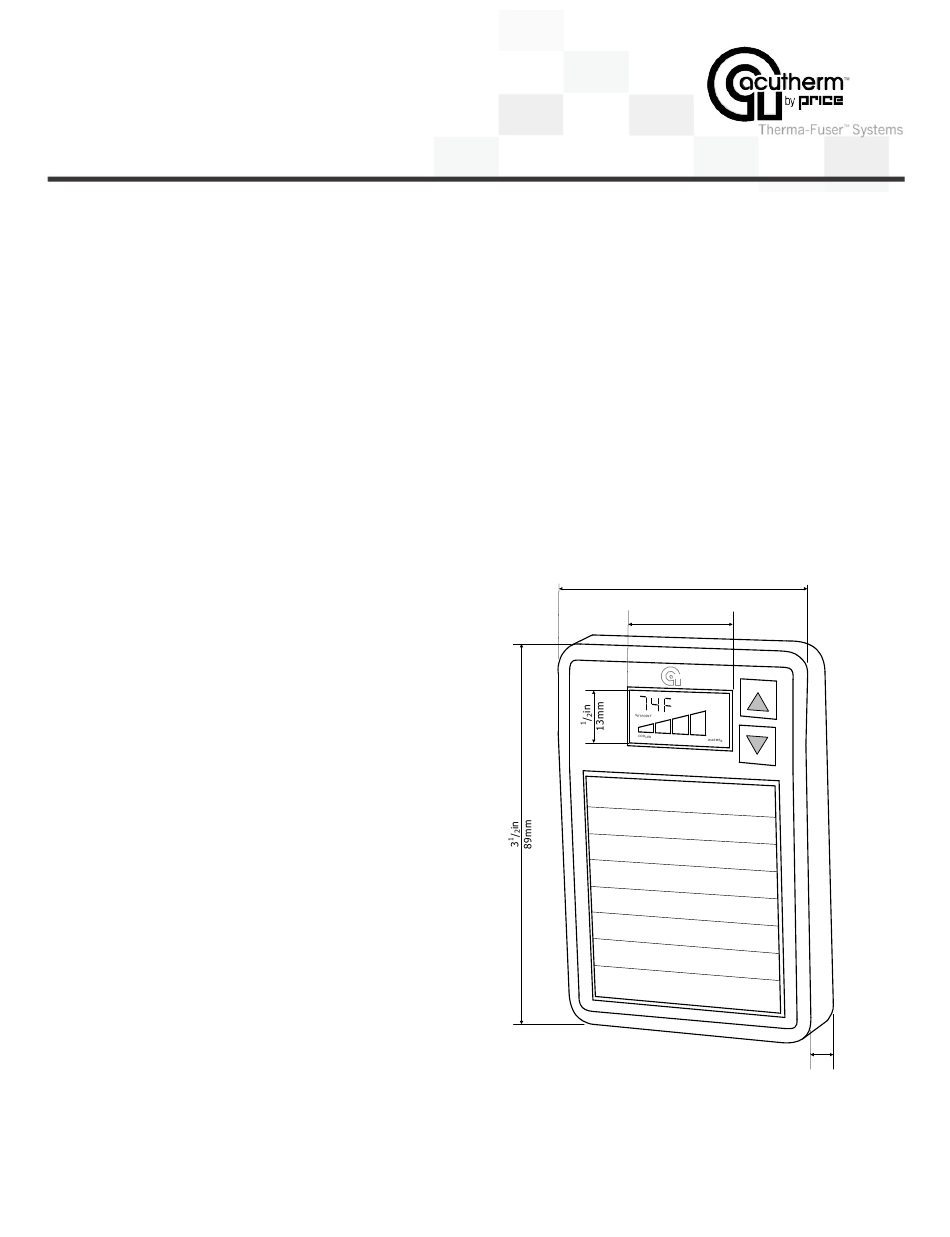

Fig. 1 – Wireless Wall Adjuster
FORM 040.202 REV 1704
9
2 / in
16
65mm
1 in
26mm
11
/
17mm
Page 1 of 8
in
16
