fluxia ILW4 User Manual

ILW4
IN-LINE WIRELESS CONTROLLER
FOR RGB LED TAPE

Installation

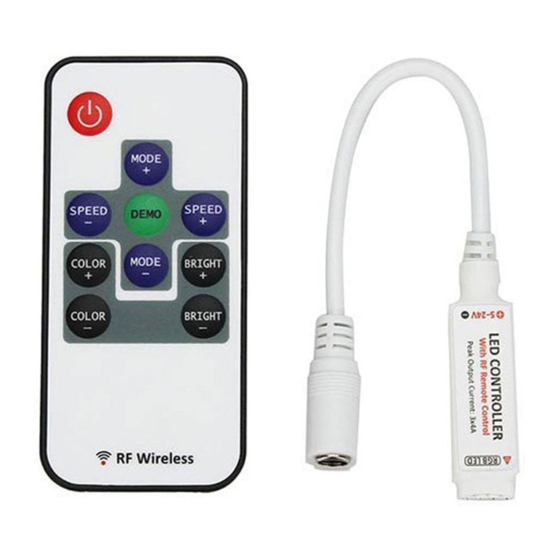

The ILW4 controller can be employed to control Fluxia RGB LED tape operating from a 5-24Vdc power
supply. Maximum short term current load is rated at 3 x 4A. For constant full power output, it is advised to
limit this to 3 x 2A load.
There are 2 versions of Fluxia RGB LED tape - 153.720UK has 60 LEDs per metre and 153.721UK has 30
LEDs per metre. It is recommended that each controller is connected to no more than 300 RGB LEDs (i.e
1 x 5m roll of 153.720UK or 2 x rolls of 153.721UK connected in parallel).

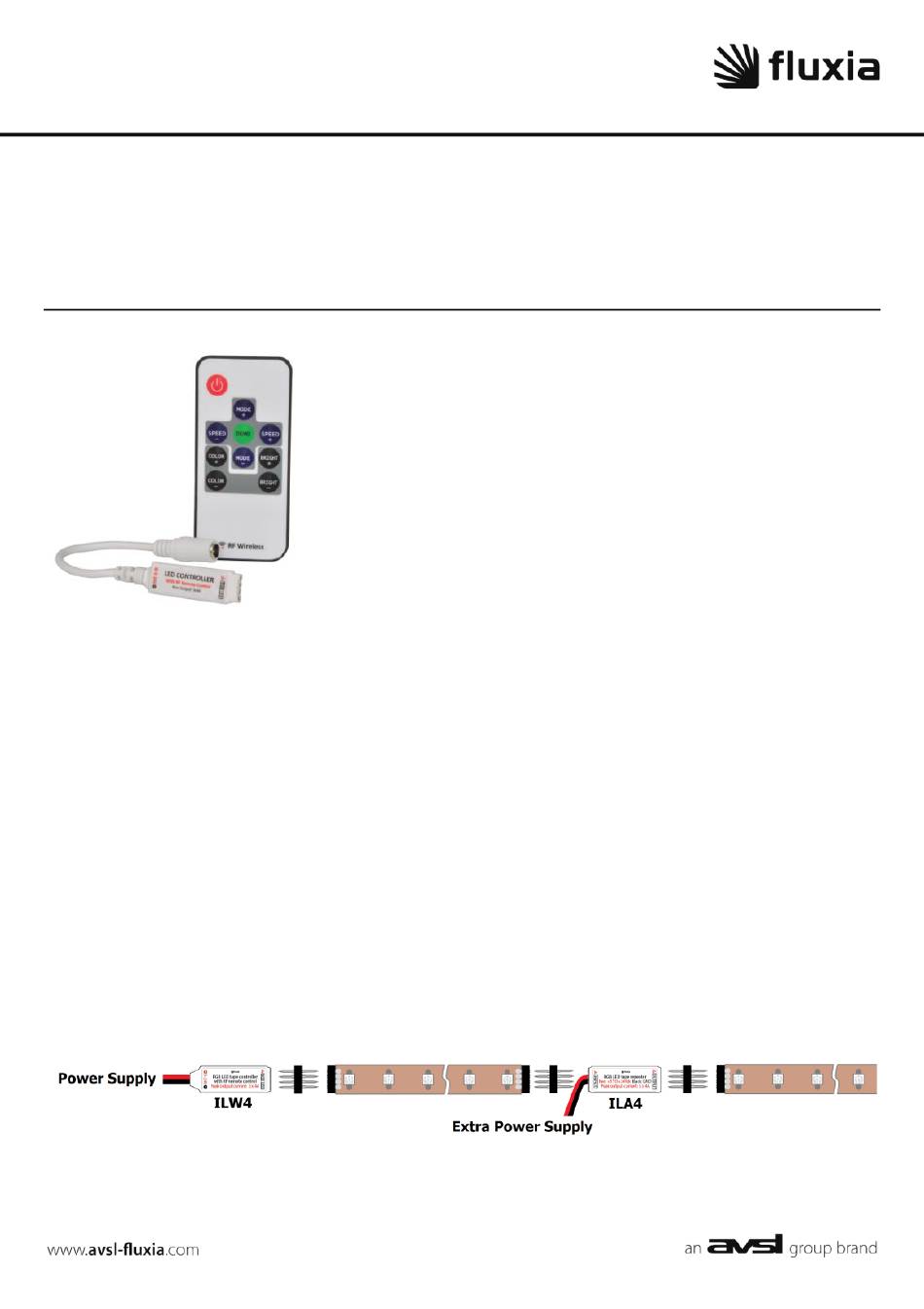

For longer runs, each subsequent roll should be linked using the ILA4 amplifier (153.701UK)
The ILA4 also accepts 5-24Vdc and connects from the end of a controlled length of RGB LED tape to the
beginning of the next length of RGB LED tape to match the patterns/colours of the first tape. (also 3 x 4A
peak, 3 x 2A continuous output)
Connection is via a 4-pin coupler, as supplied with Fluxia RGB LED tape.
Ensure that the red triangle is connected to "+" or "Common" on the LED tape.
WARNING: This product is intended for professional installation
of RGB LED tape and should be connected by qualified personnel
in accordance with electrical safety standards. Ensure that the
rated load indicated is not exceeded.
Item ref: 153.699UK
User Manual
