Installation and Operating Manual

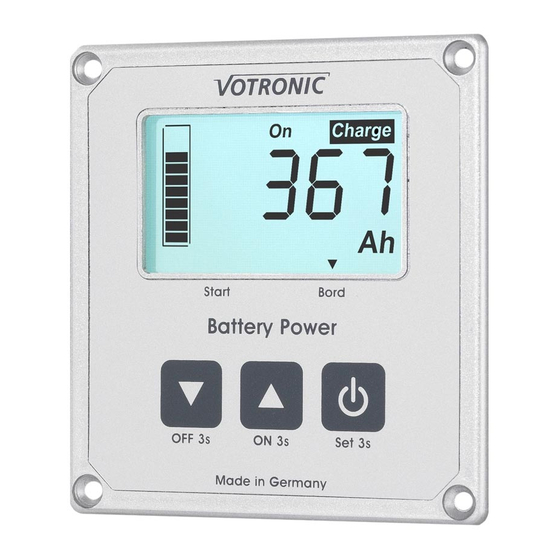

LCD Battery Computer 100 S with 100 A Smart Shunt
LCD Battery Computer 200 S with 200 A Smart Shunt
LCD Battery Computer 400 S with 400 A Smart Shunt
The Votronic LCD Battery Computer S is designed for exact measuring of the charging state of board batteries
in caravans, campers, boats, special purpose and intervention vehicles.
Please read the mounting instructions and the operating manual including the safety regulations
completely prior to starting connection and start-up.
The VOTRONIC LCD Battery Computer S calculates the exact charging state of the battery and displays the
charging state like a "fuel gauge for the battery". In contrast to simple ampere-hour meters, the residual
capacity will be determined in ampere-hours (Ah) or the residual charge in % by means of programmed
battery-characteristic and will be displayed as state of charge. Apart from this, the LCD Battery Computer S
provides the display of the battery voltage (V) of a second battery (starter battery).
The smart-shunt, which is provided with the unit, is extraordinary robust, very exactly and shows extreme
overload capacity (refer to "Technical Data"). It is equipped with a programmable output to remote control a
main-switch which connects or disconnects consumer loads or further energy supply units, depending on the
charging state of the battery.

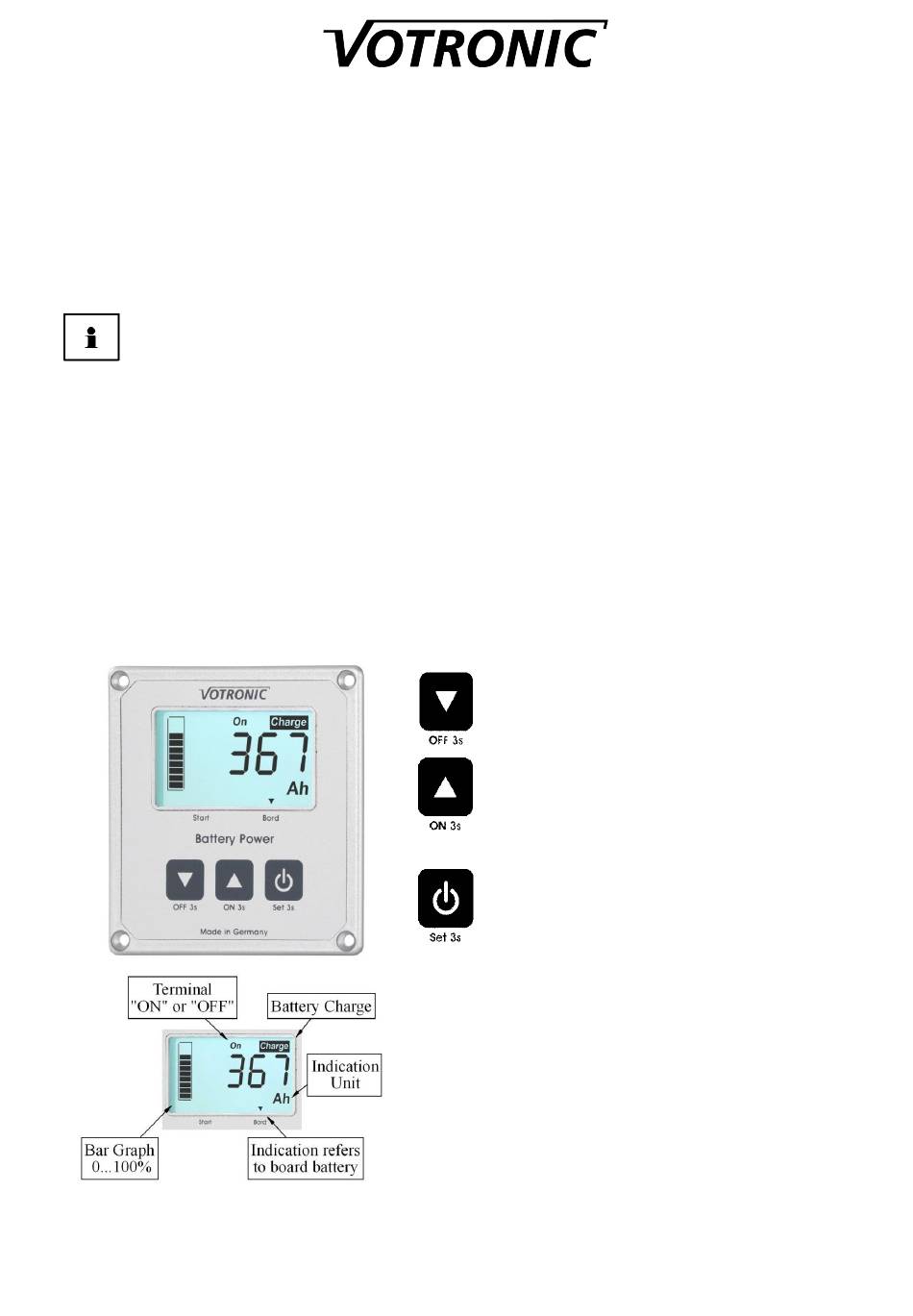

Operation LCD Battery Computer S

Key 1: Next page of the battery computer display,
manual disconnection of the terminal (3s).
Key 2: Previous page of the display, manual
activation of the terminal (3s).
Key 3: Display on/off.
Set (3s)
Activation, Deactivation
The unit is optimized for extremely current saving operation
and offers three operation modes.
Stand-by: During stand-by mode the display is empty. If the
terminal is activated, "ON" will be displayed, and if it is
switched-off, "OFF" will be displayed.
Display with and without illumination: As soon as the LCD
Battery Computer S is operated, the display illumination will
be switched-on and will remain activated for 3 minutes. If
there is no operation during this time, the illumination will be
switched-off automatically. Due to power saving, the
illumination duration is just a few seconds while the
"Terminal" is off.
- 1 -
No. 1263
No. 1266
No. 1269

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Votronic 100 S

  • Page 1 LCD Battery Computer 400 S with 400 A Smart Shunt No. 1269 The Votronic LCD Battery Computer S is designed for exact measuring of the charging state of board batteries in caravans, campers, boats, special purpose and intervention vehicles. Please read the mounting instructions and the operating manual including the safety regulations completely prior to starting connection and start-up.
  • Page 2 (5 m), order No. 2005, is available as accessory. The total cable length is then 10 m. Faultless operation is only ensured, if the delivered control cable, as well as the original Votronic control cable extension are used. - 2 -...
  • Page 3 The smart shunt measures the battery voltage as well as the current for determination of the residual capacity (level) of the battery. Furthermore, it can measure the voltage of the starter battery, and it is equipped with a terminal for control of a main switching relay, such as the Votronic Switch Unit 40. Battery Systems: Any battery current should flow over the smart shunt.
  • Page 4 Due to the high current consumption of standard relays, we recommend to use the switching components "Votronic Switch Unit" (see accessories). They allow a high switching capacity with very low own consumption (only a few mA). Thus, they are particularly suitable for continuous operation without any load of the battery.
  • Page 5 How to set the Battery Type and the System Voltage The possible battery types and their number for setting in the menu can be drawn from the table. If the value is not accepted, the setting can be repeated. Type Volts U1 Set Value Set Value...
  • Page 6: General Information

    Adjustment of the Nominal Capacity: The nominal capacity is indicated in Ah, and it is imprinted on the battery. If several Ah-values can be found, use the value ..Ah (20 h). If several batteries have been combined to a 12 V battery system, add the Ah values.
  • Page 7: Safety Instructions

    We do not assume any liability for any damage resulting hereof. The liability exclusion is extended to any service being executed by third, which has not been ordered by us in writing. Service is to be effected exclusively by VOTRONIC, Lauterbach.
  • Page 8: Technical Data

    Subject to misprints, errors and technical modification without notice. All rights reserved, particularly the right of reproduction. Copyright  VOTRONIC 07/18. Made in Germany by VOTRONIC Electronic-Systeme GmbH & Co. KG, Johann-Friedrich-Diehm-Str. 10, 36341 Lauterbach/GERMANY Phone: +49 (0)6641/91173-0 Fax: +49 (0)6641/91173-20 E-mail: info@votronic.de Internet: www.votronic.de...
