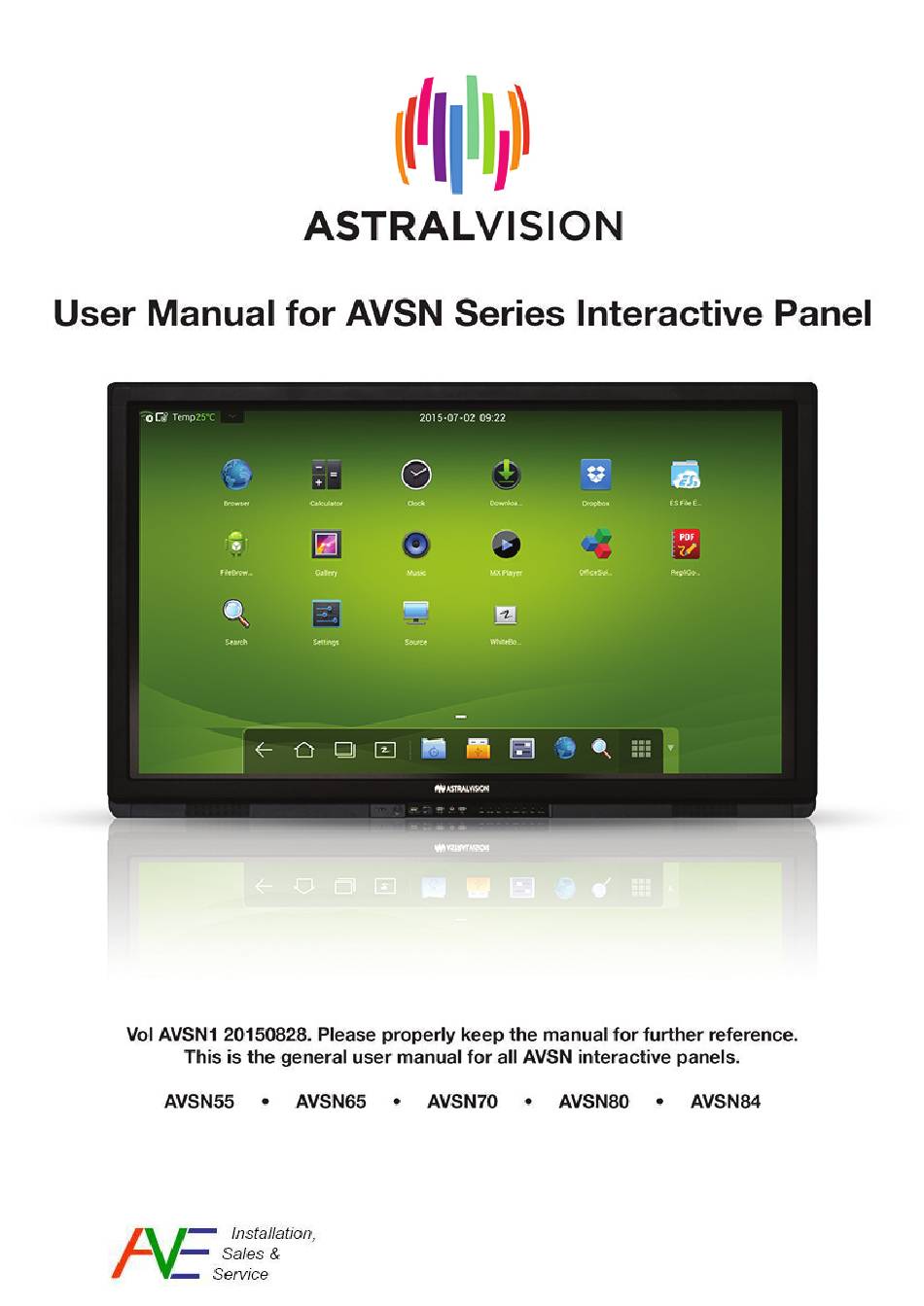

- Page 1 Supplied By: Audio Visual Engineering Pty Ltd Ph: (02) 8207 3141 info@audiovisualengineering.com.au...
-
Page 2: Table Of Contents
Table of Contents Warning Notices Ventilation External Connectivity & Characteristics Interface Panel Details Remote Control Functions Basic Operation Start Up & Shut Down Calibration Optional OPS PC Smartbar Home Page Task Manager Whiteboard Mode Gallery File Manager System Settings Set Time/Date Network Input Method Printer... -
Page 3: Warning Notices
WARNING NOTICES The power supply voltage is 240V AC & is high enough to cause personal injury. Do not use any types of power cable other than an approved Australian IEC cable to prevent the product from being damaged. ... -
Page 4: Ventilation
Ventilation: - 4 -... -
Page 5: External Connectivity & Characteristics
Outer Appearance Left 15W speaker Control & Connectivity panel Right 15W speaker (Front view) OPS PC slot Connectivity Interface Power socket (Left View) (Rear View) (Right View) Connectivity (Lower view) Interface - 5 -... -
Page 6: Interface Panel Details
Control Panel Home: Open the Android home page. Back: Go back or return to the parent menu. HDMI 1: Switch over to HDMI 1 signal source channel. ECO: Switch over to ECO, Auto or Standard mode. Signal: Show or exit from the list of signal sources. VOL+: Increase the volume. -
Page 7: Remote Control Functions
Functions of the Remote Control : On/standby : Mute 3. 0—9: Select TV channel or enter number (Home): Open the Android home page. (Return): Go back or return to the parent menu. (Menu): Show or hide menu. : Show or exit from the list of signal sources. : Enable Audio mode. -
Page 8: Basic Operation
Basic Operation Start Up Power the touchscreen with 240V 50Hz AC power supply. Connect the panel to the power supply. Switch on the rocker switch (on the left of the rear of the panel, next to the power cable port) to enter the standby status. The power LED turns red. -
Page 9: Calibration
Calibration for Windows 7/8: Connect the interactive panel to PC using the USB lead via the USB interface on the panel; Select Tablet PC Setting on Control Panel. Select on the setting window. - 9 -... - Page 10 Use the pen to click and hold the center of the cross. Do not release it until the cross moves to the next positioning point. Complete the positioning process as instructed. Click Yes after it completes Hits & Tips To ensure the handwriting accuracy, use the pen provided with the interactive panel rather than a finger to perform positioning.
-
Page 11: Optional Ops Pc
Installing Built-in (optional) OPS Computer Insert OPS computer into the slot and fasten it with two M4 screws on the left and right. Please make sure to fasten the M4 screws; otherwise the OPS may not work properly. Note: The OPS computer is not plug-and-play. Disconnect the interactive panel from the power before inserting the OPS computer. -
Page 12: Home Page
In programs other than the Whiteboard, the Smartbar is in the Remarks mode. You can select a pen, line and color to add notes and remarks on the file opened (including image, PPT and PDF). (Remarks mode) Note: Touch on the right to hide the toolbar. - Page 13 The following figure shows the interface when a SD card is inserted; the desktop of the OPS computer and files in the portable device. Touch any place on the preview window of the OPS computer desktop to display the interface information. Click the SD card preview window to open the SD card interface. Touch on the upper left corner of the Home Page to show tools, clock, calendar and calculator.
-
Page 14: Task Manager
Task Manager In the Task Manager, you can view currently running programs, switch and end programs. Touch to enter the task manager as shown in the following figure: View running programs In the task manager, scroll left and right to view currently running programs. ... -
Page 15: Whiteboard Mode
End programs In the Task Manager, swipe up or down on a program to remove the program from the list. Whiteboard Mode Whiteboard Mode provides the writing function. In Whiteboard Mode, you can select a pen, line and colour to write and use eraser to erase content on the whiteboard. You can also print and clear the content on the whiteboard. - Page 16 New Whiteboard and Settings: Touch and select New, View, Delete or Set from the menu. Touch Set to set the colour and shade of the whiteboard as shown below under Pen/ Line/Colour. Pen/Line/Colour If you want to use pen marker, touchand hold for two seconds to set the line and colour.
- Page 17 Eraser If you make an error or want to erase something, touch to use the eraser to erase the content that you want to erase. Cancel Touch to cancel previous operations. Capture Touch to capture the content on the whiteboard and save it as an image under the Screenimage directory.
-
Page 18: Gallery
Gallery You can enter the gallery to view images one by one or as slides. Touch on Smartbar to enter the gallery to show all folders containing images. Click a folder to show images contained in the folder. Single Image Touch one image in a folder. -
Page 19: File Manager
Slide Touch on the upper right corner of the folder and select Slide to view images as slides. File Manager In File Manager, you can copy, print and view files in the system. Touch on Smartbar to enter the File Manager interface and show the file system. It also shows files in portable devices such as SD card and USB. - Page 20 Copy Touch one file or tick off Multiple and choose several files. Touch to copy selected files to the portable device - 20 -...
-
Page 21: System Settings
Print Touch to open the preview page. Touch to set the printer. Touch set the number of copies to be printed. Touch to start printing. View Touch to open a file. You can view files including images, music, word, PPT and PDF. -
Page 22: Set Time/Date
Set Time/Date Touch Time to enter the time/date setting interface. Touch 24 Hours. When it is grey, it is in 12-hour system mode. You can touch AM or PM. When it is green, it is 24-hour system mode. Touch Auto Update. When it is grey, you can modify the time and date. When it is green, the time and date will be automatically updated by the system. -
Page 23: Network
Network Touch Network to show the network status, LAN, WiFi and Agency Settings. Choose a network connection method and set parameters accordingly. LAN setting If the panel is connected with LAN cable and supports Dynamic Host Configuration Protocol (DHCP), the system will automatically configure the network protocol (IP) value - 23 -... - Page 24 If you want to manually set the network protocol, enter the IP address, default gateway, and DNS server parameters on the software keyboard or remote control. Slide / to select the subnet mask to be changed. After setting, touch < on the upper left corner or Return on the remote control to go back to the parent menu.
-
Page 25: Input Method
If you select an AP with safety authentication, you need to enter the password on the software keyboard on the safety authentication interface. After setting, touch < on the upper left corner or Return on the remote control to go back to the parent menu. - Page 26 Touch AOSP and configure functions as follows: - 26 -...
-
Page 27: Printer
Touch Google Pinyin and configure functions as follows: Printer Touch Printer to show the printer setting interface. Enter the name, type and IP address of the printer. After setting, touch < on the upper left corner or Return on the remote control to go back to the parent menu. -
Page 28: Language
Language Touch Language to show options including Chinese (Simplified), Chinese (Traditional), and English. Select a language. Touch < or Return to return to the parent menu. Touch × to close the current interface. Clear Screenshots Touch Auto Cleaning to show options including 1 Month, 2 Months, 3 Months, 6 Months, and 12 Months. Select a period. -
Page 29: Auto Luminance
Auto Luminance Touch Auto Brightness to show options including Time Delaye and Real Time. Touch Time Delay and auto luminance adjustment will be delayed for five minutes. Touch Real Time to enable auto luminance adjustment immediately. Touch < or Return to return to the parent menu. -
Page 30: Restore Default Setting
Restore Default Setting Touch About Android to show the following interface. Touch Reset. Touch OK to restore the default setting. Touch < on the upper left corner or Return on the remote control to go back to the parent menu. Touch × to close the current page. - 30 -... -
Page 31: Browser
Browser Touch on Smartbar to open the web browser. Enter a website and keywords to search on the software keyboard or remote control. - 31 -... -
Page 32: Programs
Programs Touch on the Smartbar to enter the Program interface and show all programs in the system. Scroll right and left to turn the page as follows: Examples: (Page 1) (Page 2) - 32 -... -
Page 33: Calculator
Calculator Touch to enter the calculation page. Touch numbers and characters on the keyboard. Clock Touch to enter the clock page. Touch Start to start timing and Stop to stop it. Options: Count down timer Clock Stopwatch Clock: Count Down Timer: Alarms Enter time Time Zones... -
Page 34: Music
Music Touch to start the music program. The system will display songs by artists, albums, file names, playlist and playing status. ES File Touch to open ES File. You can copy, cut, delete, move and rename files. - 34 -... -
Page 35: Temperature Measuring
Touch on the upper right corner of the interface to select a file and touch to select all files. Temperature Measuring Touch to measure the temperature of the panel. Select Input Source There are two ways to select an input source: 1.1 Press Source on the remote control. -
Page 36: Menu
Touch Source button to show the following interface. Press arrows to select an option and press OK. You can also select an icon on the interface. Note: The touchscreen will automatically detect signals when it is started or there is no ... -
Page 37: Sound Mode
Note: When the picture mode is Custom, you can adjust the contrast, brightness, hue, sharpness and saturation. Sound The Sound Mode menu shows options including Sound Mode, Equalizer, Sound Balance, Surround, and SPDIF Output. There are two ways to set it: 1.1 Touch an icon and set it. -
Page 38: Time
1.1 Touch an icon and set it. 1.2 Press arrows to move the cursor onto an option. Press OK and press relevant arrows to adjust the value. Press Return to quit the menu. Time The Time menu shows options including Date, Current Time, Off Time, On Time, and Sleep Time. -
Page 39: Eco Mode
Note: This menu is only available when TV signal source is used. ECO Mode Press ECO on the remote controller to enter the ECO mode (ECO-Auto-Standard). Press this button to switch among the three modes. The power consumption will be halved under the ECO mode. ... - Page 40 Port: COM1 (Set according to PC or controlling device’s port number) Bit rate 115200 Odd/even check None Data bits Stop bit The following table lists button controlling codes. The buttons share same functions with corresponding buttons on the remote control: Function Controlling codes Function Controlling codes...
-
Page 41: Specifications Of Pc Mode (Vga Input)
New search: DEVICE TYPE 99 A2 B3 C4 02 ff 01 31 VOLUME 99 A2 B3 C4 02 ff 01 33 ECO MODE 99 A2 B3 C4 02 ff 01 35 POWER STATE 99 A2 B3 C4 02 ff 01 37 DISPLAY STATE 99 A2 B3 C4 02 ff 01 32 AUDIO MODE... -
Page 42: Formats Supported By Usb Mode
Formats Supported by USB Mode Media category Formats Extension Image JPEG, BMP and PNG .jpg, .bmp, and png Movie MPEG1, MPEG2, MPEG4, H264, .avi, .mpg, .dat, .vob, .div, .mov, .mkv, RM, RMVB, MOV, MJPEG, FLV .rm, .rmvb, .mp4, .mjpeg, .ts, .trp, .asf, and .flv Music WMA, MP3, M4A, (AAC) - Page 43 Failure Possible cause Solution Your hand or other objects Use the pen rather than a finger Grasp the pen as far to the nib as are put on the display when to write. possible. The angle between the pen and writing.
-
Page 44: Instructions In Provisions For Recycling And Disposal Of Waste Electrical And Electronic Products
Computer cannot be started (applicable for models with computers) 1. Check if the computer adapter is correctly connected and is connected to power. 2. Check if the computer is connected correctly to the touchscreen. Self-inspection: The following phenomena are not failures: ...
