Summary of Contents for AdvanceTec AdvanceMobile QC1
- Page 1 AdvanceMobile ™ QC1 Installation & User Manual Part # AT3557A AdvanceTec Industries, Inc 1150 NW 163 Drive, Miami, FL 33169 T: 305-623-3939 F: 305-623-3996 Toll Free: 1-800-881-8211 www.advancetec.com...
- Page 2 Index Page Description 3 Part n umbers a nd i nstallation g uides 3 -‐ 4 Installation ...

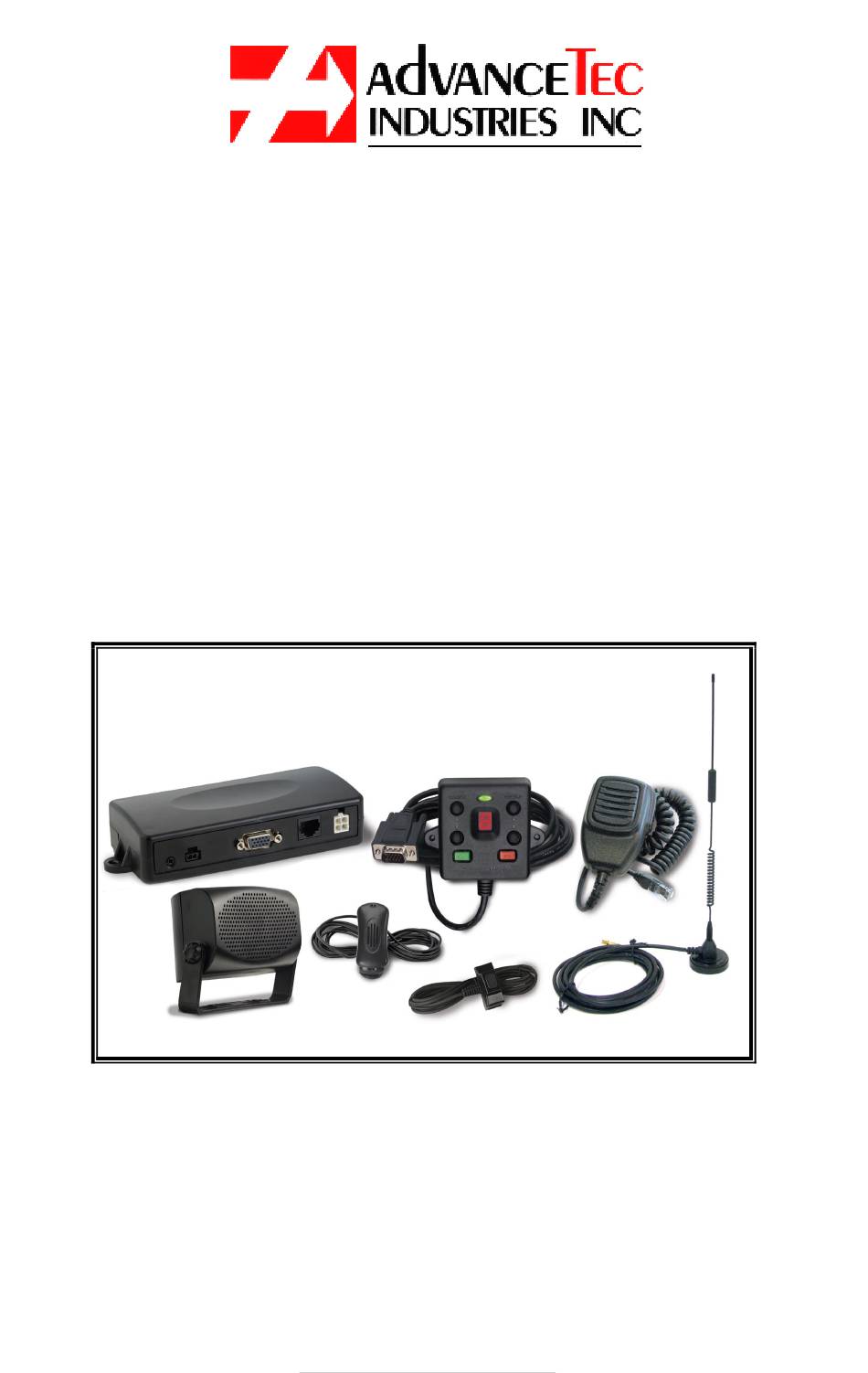

- Page 3 The AdvanceTec AdvanceMobile™ QC1 is designed to provide secure and convenient communication in the vehicle, on the SPRINT Direct Connect (PTT) network. The A dvanceMobile™ Q C1 c onsists o f: ...
- Page 4 2. Direct Connect (PTT) calls to be received by the AdvanceMobile™ QC1. Consult your AdvanceTec sales professional for more information on this ...
-
Page 5: Mounting Bracket
Installation o f A dvanceMobile™ Q C1 A. S peaker I nstallation 1. Mount the Speaker beneath the dashboard, on the passenger's side of the vehicle, ... - Page 6 F acing t he d river ...
- Page 7 2. T o a ttach t he P TT t o a f lat s urface, r emove t he 2 s crews f rom t he b ottom o f the ...
- Page 8 D iagram 4 3. C ut t he b lack l ead t o t he d esired l ength. 4. If the connection is being made under the dash or in the vehicle cabin, connect ...
- Page 9 2. Mount the Mag. Mount antenna or other external vehicular antenna (to be purchased separately if the supplied Mag. Mount Antenna does not fit your purposes). ...
- Page 10 2. Once the registration is successful, 5 short pulses will be heard through the speaker. 3. After registration, the phone numbers with which the AdvanceMobile™ QC1 will communicate must be loaded. This can be done manually or with the Utility software available from AdvanceTec, which will be loaded onto the...
-
Page 11: Control Module
Control Module. Manually loading numbers 1. Power ON the AdvanceMobile™ QC1 and initiate a Direct Connect (PTT) call to it from a phone with which you want the AdvanceMobile™ QC1 to communicate. 2. Select a channel on the Control Module 3. - Page 12 erasing of that number Erasing all numbers entered 1. To erase all the numbers entered, with out power to the unit, press and hold down the programming switch as indicated above and then attach the power cable. 2. Keep the programming switch pressed down until a long beep is heard through the speaker.
- Page 13 4. A D irect C onnect ( PTT) n umber o r Group c an b e p rogrammed o n each o f t he 2 0 c hannels ...
-
Page 14: Optional Accessories
1. When the car ignition is ON, the AdvanceMobile™ QC1 will stay on. 2. When the ignition is turned OFF and there is no active call in progress, the AdvanceMobile™ ... -
Page 15: Specifications
Palm M ic. Diagram 1 5 1. T o u se a P alm M ic. w ith t he A dvanceMobile™ Q C1, p lug t he c onnector o n t he end ... -
Page 16: Communication Specifications
1 h r p er a xis – 3 a xis ( X, y , z ) R andom 2 0 – 2 000 H z, 6 G R MS; 1 h r per a xis – a xis ( x, y , z ) AdvanceTec Industries, Inc 1150 NW 163 Drive, Miami, FL 33169... - Page 17 Tel: 305-623-3939 Toll Free: 1-800-881- 8211 www.advancetec.com...
