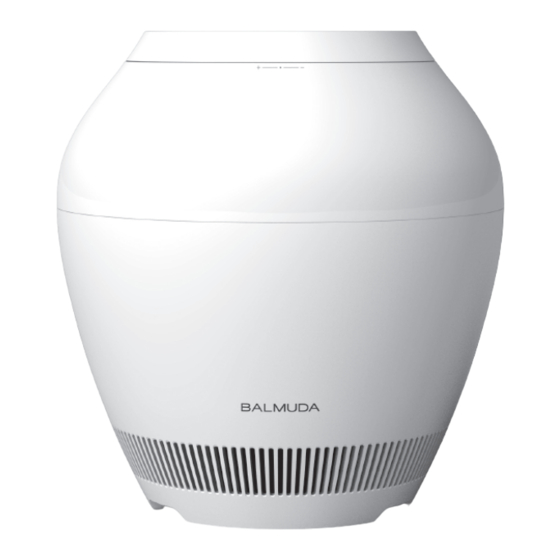

BALMUDA RAIN ERN-1000SD Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
ERN - 1000SD Series

Advertisement

Table of Contents
loading

Summary of Contents for BALMUDA RAIN ERN-1000SD Series

  • Page 1 Instruction Manual ERN - 1000SD Series...
  • Page 3 Important Thank you for purchasing "Rain". Before using this product, please be sure to read this manual and the Safety Precautions (P.34 to 38) thoroughly. Furthermore, please be sure to follow the instructions adhered with the " " mark on each page. This manual also serves as a warranty card.

  • Page 4: Table Of Contents

    Before Use Error Detection Function and Package Contents・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 4 Safety Functions Removing from the Package ・ ・ ・ ・ 5 Error Detection Function and Names of Parts・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 6 Safety Functions ・...

  • Page 5: Before Use

    *The parts shown in the box on the right are preinstalled in the Water Supply Bowl before shipping. C o ntrol Ri ng ( 1) Wa ter S u p pl y B o w l ( 1 ) Wa t er S u p p l y Bo w l P l ate ( 1 ) Humidifying Filter holder (1) A C a d a pt e r ( 1 )

  • Page 6: Removing From The Package

    Water Supply *Be sure to remove Instruction manual the protective cushion Bowl Plate (Including warranty card) from inside the unit before shipping. before use. Protective cushion (Styrofoam) Control Ring AC adapter Water Supply Bowl Protective cushion (Styrofoam) Removing from the Package Main unit Main unit lower body...

  • Page 7: Names Of Parts

    Front Rear Water supply inlet Display Air outlet Control Ring Switch 24h Timer button Names of Parts Power button Speaker Air vents Adapter plug connector Before Use...

  • Page 8: Assembly

    Set the Humidifying Filter at the bottom of the Water Fit onto the protrusion at the Supply Bowl comes within center. Holder. Humidifying Filter Holder Guide Humidifying Filter Assembly Fit the 6 claws in place. Set the Humidifying Filter Align the claws of the Set the silver ion cartridge at the center of the Water H u m i d i f y i n g F i l t e r...
  • Page 9 ○ marks Align the three protrusions Set the Water Supply Bowl Fully insert when connecting. are aligned. and notches. ○marks Rotate the Humidifying Connect the adapter Set the Water Supply Set the Water Supply Filter Holder to lock it in plug.
  • Page 10 Set the main unit upper body and lower Set the main unit upper body and lower body, aligning the contact points. body, aligning the contact points. *Do not hold this area, Contact get caught. point position and rotate from there. position and rotate from there.
  • Page 11 The Control Ring contains a magnet, allowing it to be set simply by placing it on the main unit. Connect the AC adapter by inserting all the way in. *The AC adapter makes a popping sound when it is correctly connected. Insert the AC adapter into a wall Set the Control Ring.

  • Page 12: Installation

    Be sure to observe the following points when installing. 120 cm Do not use under a table or desk. This blocks the air outlet, preventing Installation 3 0 c 3 0 c m throughout the room. such as thick-piled carpet. Doing so causes the unit to topple and the water Before Use...

  • Page 13: How To Operate

    24h Timer button The 24-hour Timer can be activated/deactivated directly by long pressing this button. *For information on the 24h Timer button. P.20 Power button Turns the power on and off. *The child lock can be set or released by long pressing and the power button for approximately two seconds.

  • Page 14: Display

    Display dimming OEL display The display will become bright only while the unit is being operated. The OEL display shows detailed If the unit is not operated for more than 1 minute, the indicators operating information so that it can on the main unit automatically switch to low brightness.
  • Page 15 Mode icon Humidity setting The current Operating Mode T h e c u r r e n t h u m i d i t y s e t t i n g i s is indicated by icons. displayed. Child Lock icon 24h Timer icon This is lit when the Child Lock function...

  • Page 16: Operating Modes And 24H Timer

    Humidity setting Auto mode (automatic operation) Fi v e l e v e l s c a n b e s e t ( 40%, 45%, 50%, 55% or 60% ) . the Control Ring. Standard screen in Auto mode Manual Mode (setting the air Air volume ③...

  • Page 17: Filling With Water

    Filling with Water Pour water directly into the water supply hole using a kettle, etc. Water volume 1 Water volume 2 Water volume 3 Water volume 4 Water volume 5 Full with water The Water Supply Bowl is water volume will be indicated on the display. Be careful of the following points Take care to ensure that water does ●...

  • Page 18: Operating The Unit

    Turning the power on Press the Power Button to turn the power on. *The power can also be turned on or off using the Control Ring. P.12 Operating the Unit Setting the volume/humidity Entering the menu screen For detailed operations such as changing the modes, setting the 24h Rotate the Control Ring to set the volume or humidity.
  • Page 19 Selecting a menu Menu selection screen Operate in Auto mode Auto Operate in Manual Mode Manuell Open 24h Timer screen P.20 Select Select -Timer Open Settings screen P.21 Einstellungen 決定 Commit Commit Open screen for resetting Filter- P.25 Reinigungssymb. How to Use...

  • Page 20: Current Time

    This unit equipped with a clock function. The message on the left is displayed automatically P.21 Set the time by following the steps below. (The clock on this unit uses 24 - hour time.) Current Time Akt. Uhrzeit Akt. Uhrzeit Einst.

  • Page 21: 24H Timer Settings

    24h Timer Settings Select "24h Timer" from the menu selection screen. Ein? h-Timer To turn on h-Einst. Abbrechen Zurück The 24h Timer Click "Ein". Click "Ja". is turned on. Aus? h-Timer To turn off h-Einst. Abbrechen Zurück The 24h Timer Click "Aus".

  • Page 22: Settings (Unit Settings)

    Settings (Unit Settings) Display-Hell. Akt. Uhrzeit Lautstärke Firmware- Einst. zurücks. Informationen Zurück How to Use...
  • Page 23 Details on main unit settings Display brightness Adjust the brightness of the indicators and the OEL display if they are too bright or are too dim to see properly. The brightness can be selected from three levels: High, Medium and Low.

  • Page 24: Maintenance

    Maintenance Disassemble the main unit. upside down may cause water to enter the display and damage the unit. Filter Remove the Control Remove the main Place it on a towel, Ring. unit upper body. does not get wet. Filter Cleaning Sign Holder.
  • Page 25 Move it to the bathroom, Continued on How to Use...

  • Page 26: Storage

    Assemble. *See P.7-P.10 for assembly instructions. Contact point S e t t h e s i l v e r i o n Set the Water Set the Enzyme Wipe away the water Set the Control Insert the AC adapter cartridge, Humidifying Supply Bowl.

  • Page 27: Cleaning The Humidifying Filter

    Cleaning with citric acid or baking soda It is recommended to clean the Humidifying Filter by soaking it approximately once every two weeks to one month. Clean with baking soda if the output air has an odor, or clean with citric acid to remove scale (mainly slime) or calcium salt (white solid) on the Humidifying Filter.Dissolve baking soda or citric acid in cold soda and citric acid can be purchased from drugstores, home centers, etc.

  • Page 28: Replacing The Filter

    Main materials of the Humidifying Filter Polypropylene, polyester, polyolefin ・ ・ ・ ・ ・ ・ Besuchen Sie zum Erwerb von Ersatzfiltern die unten stehende Webseite. ■BALMUDA Europe Service Center (nur an Wochen- und Geschäftstagen, 9:00-16:30) 040-897 25 35 15 (* Anruf gebührenpflichtig) How to Use...
  • Page 29 to remove the cover. Remove the covers one by one Remove the two covers ○ Front side Front side Back side Attach the cover. ⃝ How to Use...

  • Page 30: Error Detection Function And Safety Functions

    Child Lock This can be set or released by pressing and holding the Power Button for around two s e c o n d s t o p r e v e n t y o u n g c h i l d r e n f r o m operating this unit by mistake.
  • Page 31 Tilt Alert Impact/vibration detection The unit cannot operate if it is tilting or toppled. The unit stops operating if it receives more than a prescribed level of vibration due to causes such as earthquakes or impact. Water Supply Bowl Error The unit cannot operate when the Water Supply Bowl is not set.

  • Page 32: Troubleshooting

         Solution Error codes If the cause cannot be determined from BALMUDA Europe Service Center. BALMUDA Europe Service Center easier for representatives to assist you in solving (nur an Wochen- und Geschäftstagen, 9:00-16:30) 040 - 897 25 35 15 the problem.

  • Page 33: Ac Adapter

    AC adapter BALMUDA Multi-plug Adapter The BALMUDA Multi-plug adaptericatlug unit can be attached to point 4 different directions so that the AC adapter can be inserted accordingly to the wall outlet. Upward Right Downward Left Remove Attach “PUSH” button Click! Press the “PUSH”...

  • Page 35: For Safety

    Be sure to observe these precautions. R e a d t h e S a f e t y P r e c a u t i o n s t h o r o u g h l y b e f o r e u s i n g t h i s p r o d u c t t o e n s u r e correct use.

  • Page 36: Warnings

    To avoid electrocution risks, do not soak the product, cord or plug in water or any other liquid. Do not disassemble except for maintenance purposes. Fire, electrocution or serious injury may result. For repairs, please consult your dealer or BALMUDA Europe Service Center ( P.45 ) .
  • Page 37 Warning If using in a room with dogs, cats and other indoor pets take care to ensure that they do not damage the unit or power cord. Doing so results in fire or damages the product. This unit is for use in Germany, Austria and Switzerland only. Do not use in other countries. Do not use AC adapters other than that specified.

  • Page 38: Cautions

    Cautions a. Near gas stoves or near open flames b. In/around flammable gases c. In/around water or rain Otherwise, the product or parts may get damaged. Inflammable sprays may cause fire or explosion. Other sprays may damage the plastic or paint. Children should use only under adult supervision.
  • Page 39 Cautions For Safety...
  • Page 40 Main unit AC adapter Product name Rain AC 100 - 240 V Rated input voltage Model ERN-1000SD 79 - 93 VA Rated input capacity Operating modes Air Volume 1 Air Volume 2 Air Volume 3 Air Volume 4 Air Volume 5 Rated frequency 50/60 Hz Rated output voltage...

  • Page 41: If Problems Occur

    1) Please receive the warranty card from your dealer with the purchase date and the dealer name filled in. 2) The warranty is valid for 2 years from the date of purchase. For repairs during the warranty period, please contact the BALMUDA Europe Service Center (P.45) or your dealer.

  • Page 42: Faq

    S ympt om Chec k Points S o lut io n P a ge Power does not switch Is the AC adapter inserted into the wall outlet Insert the AC adapter securely into the wall ● P.10 ▶ correctly? outlet. Is the AC adapter plug connected to the unit Insert the AC adapter plug securely into the ●...
  • Page 43 Symptom Check Points Solution Page Power does not switch ● Is there a gap between the upper body and The unit cannot operate when the upper ▶ lower body of the main unit? body and lower body of the main unit are not set correctly, as the contact points are not aligned.
  • Page 44 AC adapter from the wall socket to clear the error detection function and restart. If for any reason normal operation does not resume, contact the BALMUDA Support Center (P.48). Filter cleaning indicator ● Has the unit been left for a long time without Clean the filter and then reset the filter cleaning P.23...
  • Page 45 Sym pto m Chec k P oi nt s S o l u t i o n P a g e Indicator is dark. ● Has more than 1 minute elapsed without If the unit is not operated for more than 1 P.13 ▶...

  • Page 46: Inquiries

    040 - 897 25 35 15 Inquiries (* Anruf gebührenpflichtig) ■Online-Anfragen Bitte starten Sie einen Suchvorgang mit dem Schlüsselwort „BALMUDA“ oder besuchen Sie uns bei http://www.balmuda.com/support/. [ Bitte prüfen Sie vor Ihrer Anfrage das Produktmodell ( auf der beiliegenden Garantie )]...
  • Page 48 HOM - P031 Rev.1.0 2014.8...
