Summary of Contents for Sealite TRIDENT-1400

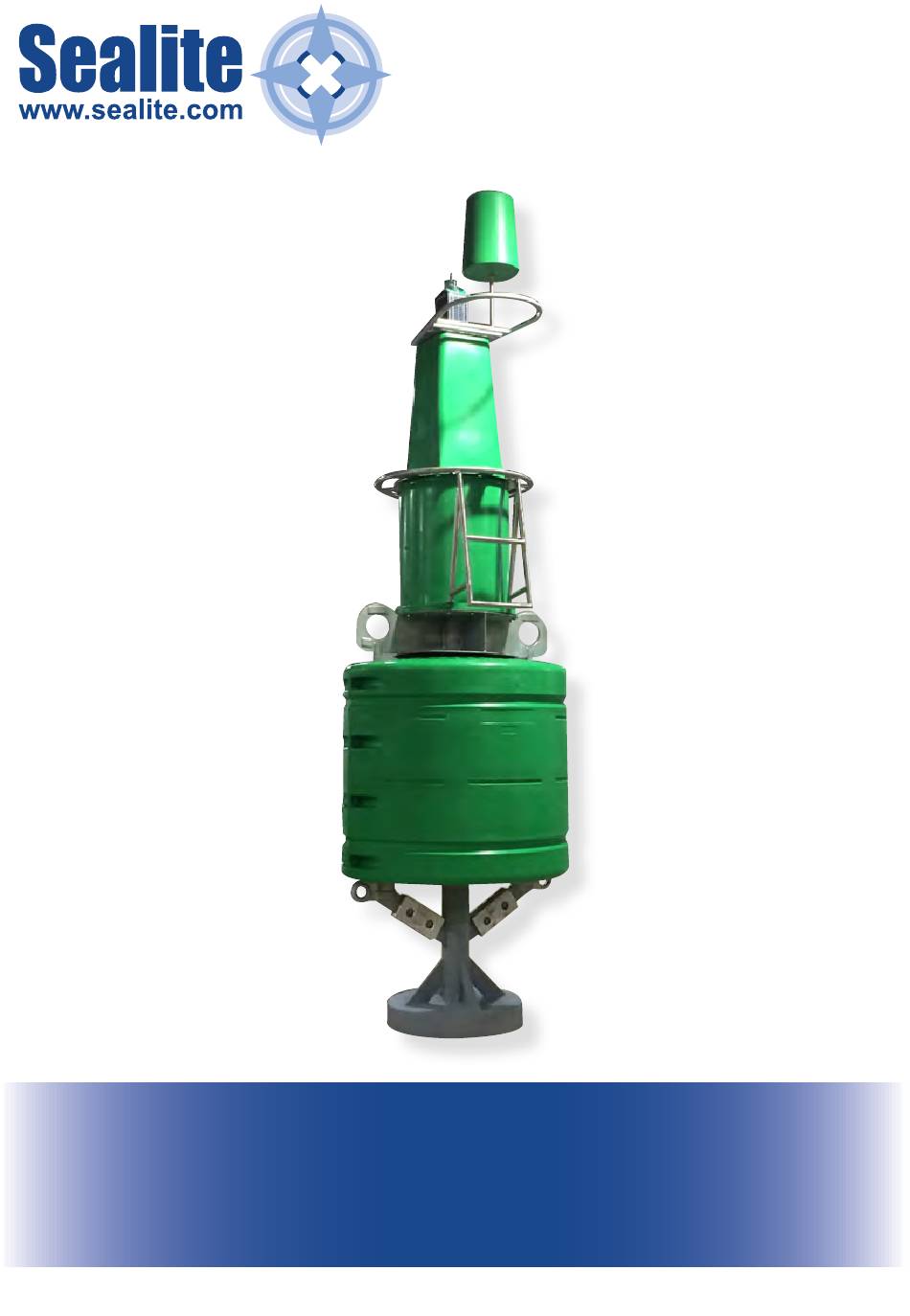

- Page 1 TRIDENT-1400 1400mm dia. Navigation Buoy Installation & Service Manual Version 1.0...
- Page 2 Technical Specifications Waterline at max mooring 1.40m 1/2 "- 13 UNC X 3/4" Deep 6 Places 1/4 "- 20 UNC X 3/4" Deep 3 Places DETAIL A SCALE 1 : 10 Figure 1.
-
Page 3: Table Of Contents
Marine Buoy Maintenance ..............Page 11 Repair Prodedures ................Page 12 Anode Replacement ................Page 12 Disposal Plan ..................Page 13 Sealite Buoy Warranty ..............Page 15 Version No. Description Date Approved Manual Launch January 2014 M. Henry Latest products and information available at www.sealite.com... -
Page 4: Introduction
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO 9001:2008 quality management system. -
Page 5: Trident-1400 Navigation Buoy
1400mm dia. Navigation Buoy TRIDENT-1400 Navigation Buoy The TRIDENT-1400 is a rotationally-moulded navigation buoy with a float diameter of 1.4 meters and lantern focal height of of at least 2.7 meters. The float section of the TRIDENT-1400 is built from two (2) rotationally-moulded sections, which fasten together to form an incredibly robust 1.4 meter wide float section. -
Page 6: Product Components
SLB1400D Ladder 000101-109 SLB1400D Float 000101-110 Float Bush 000101-111 SLB1400D Post Post Assembly 000101-112 M12 X 90 Bolts, Nuts, Washers and Spring Washers 000101-122 SLB1400D Mooring Bush 000101-116 SLB1400D Guard Rail Tube Plate 000101-106 Latest products and information available at www.sealite.com... -
Page 7: Latest Products And Information Available At Www.sealite.com
TRIDENT-1400 1400mm dia. Navigation Buoy Figure 2. Top Mark Latest products and information available at www.sealite.com... -
Page 8: Assembly Instructions
TRIDENT-1400 1400mm dia. Navigation Buoy Assembly Instructions Check Components Unpack all components from container. Inspect all components for damage. Please alert Sealite if any component is missing or damaged. Assembly Instructions Step 1 Position one of the float halves on its curved face on a firm flat surface. Chock each side of the float to prevent it from rolling. -
Page 9: Latest Products And Information Available At Www.sealite.com
• DO NOT USE THE LADDER AS A LIFTING POINT • DO NOT USE SOLAR PANELS AS A LIFTING POINT. • ONLY USE A SLING AROUND THE BODY OF THE TOWER TO MOVE INTO POSITION Latest products and information available at www.sealite.com... -
Page 10: Mooring Table
Weight Chain (kg) (kg) < 10 5 (min) 483.2 1300 10 – 20 483.2 1300 20 – 30 483.2 1300 30 – 40 483.2 1300 > 40 483.2 1300 50 (max) 483.2 1300 Latest products and information available at www.sealite.com... -
Page 11: Marine Buoy Maintenance
1400mm dia. Navigation Buoy Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. -
Page 12: Repair Prodedures
• Secure the anodes with the two bolt assemblies in the correct order (bolt - flat washer - anode – web – anode - flat washer - spring washer - nut) • Tighten the nuts up to the recommended torque of 61.2 Nm (or 45.1 ft.lb) Latest products and information available at www.sealite.com... -
Page 13: Disposal Plan
Alternatively, Sealite may accept delivery of the clean buoy parts to Sealite USA LLC (NH) at the end of its service life for disposal by Sealite on behalf of the Canadian Coast Guard. - Page 14 TRIDENT-1400 1400mm dia. Navigation Buoy Notes Latest products and information available at www.sealite.com...
-
Page 15: Sealite Buoy Warranty
Sealite Pty Ltd will repair or replace your buoy product in the event of failure for a period of up to twelve months (small buoy products less than 1500mm diameter) & a period of up to five years (large buoy products 1500mm diameter &... - Page 16 (up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Head Office Sealite Pty Ltd 11 Industrial Drive Somerville, Vic 3912 Australia Tel: +61 3 5977 6128 Fax: +61 3 5977 6124 Email: info@sealite.com Internet: www.sealite.com Latest products and information available at www.sealite.com...
