ET4222PpH-S-DR
Self-Configured Hardened 4-port 10/100/1000Base-T + 2-port 1000Base-X SFP Ethernet Switch with
PoE+/PSE

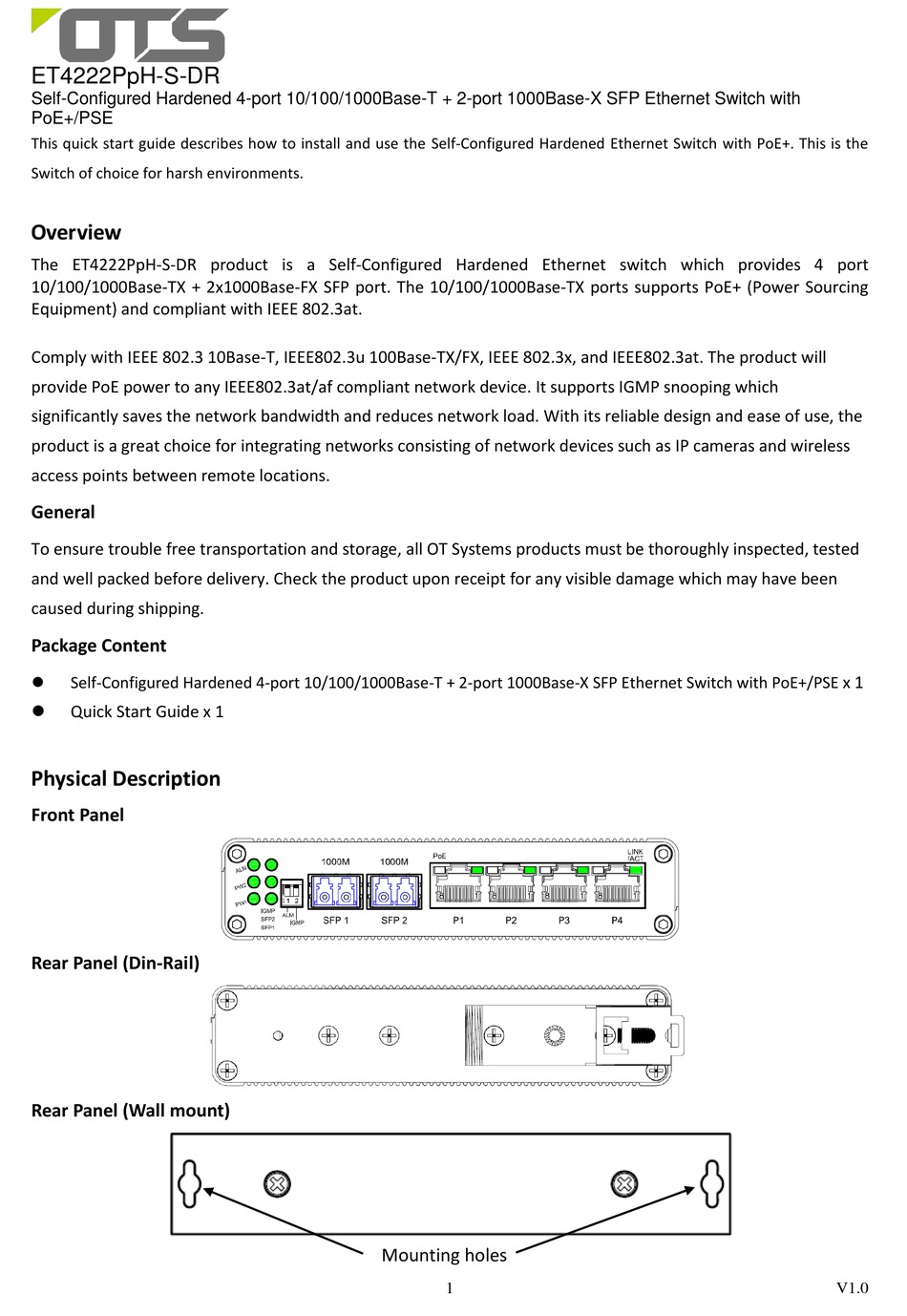

This quick start guide describes how to install and use the Self-Configured Hardened Ethernet Switch with PoE+. This is the
Switch of choice for harsh environments.

Overview

The ET4222PpH-S-DR product is a Self-Configured Hardened Ethernet switch which provides 4 port
10/100/1000Base-TX + 2x1000Base-FX SFP port. The 10/100/1000Base-TX ports supports PoE+ (Power Sourcing
Equipment) and compliant with IEEE 802.3at.
Comply with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE 802.3x, and IEEE802.3at. The product will
provide PoE power to any IEEE802.3at/af compliant network device. It supports IGMP snooping which
significantly saves the network bandwidth and reduces network load. With its reliable design and ease of use, the
product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless
access points between remote locations.

General

To ensure trouble free transportation and storage, all OT Systems products must be thoroughly inspected, tested
and well packed before delivery. Check the product upon receipt for any visible damage which may have been
caused during shipping.

Package Content

Self-Configured Hardened 4-port 10/100/1000Base-T + 2-port 1000Base-X SFP Ethernet Switch with PoE+/PSE x 1
Quick Start Guide x 1

Physical Description

Front Panel
Rear Panel (Din-Rail)
Rear Panel (Wall mount)
Mounting holes
1
V1.0
