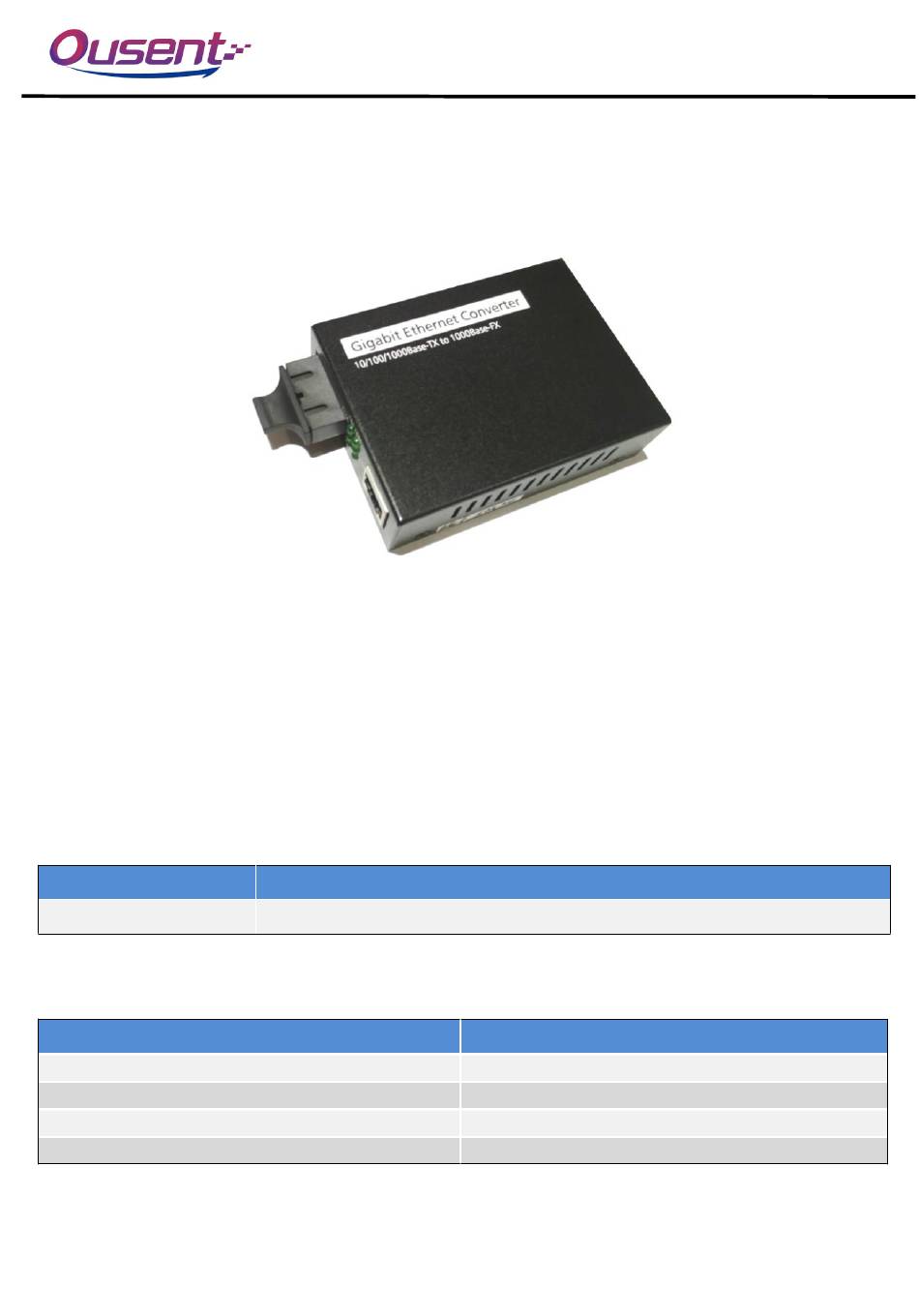

Brief introduction
Many thanks for purchasing 10/100/1000M SFP Fiber Ethernet Media Converter!
This product supports IEEE802.3u 1000Base-Tx/Fx protocol, as well as full duplex and half duplex mode. Be designed with a switch
controller and buffer memory that connect two types segments operation smoothly. IT can be used as standalone unit or as slide-in
module to the 19 Inch Converter Rack Chassis ( only for external power product).
This manual is for 10/100/1000M SFP Media Converter. The following purchasing guide is for customer's reference.
Purchasing guide for optical transceivers
Model
OS-MC12-SFP
Packing list
Please check the following items in the package before installing the transceiver.
Packing Item
Fiber Ethernet SFP Media Converter
AC/DC adapter (for external power unit only)
Power line
(for internal power unit only)
User manual
Please contact the dealer immediately for any loss or damage to the above items.
Add: Floor 2 Building 1 Shunheda Industrial Area. 72Block Baoan District. Shenzhen City Guangdong P.R. CHINA
Tel: (+86) 755 27889675
Fax: (+86) 755 27889675 ext 808
Website: www.ousent.com
10/100/1000M SFP Fiber Media Converter
User Manual
深圳市欧深特信息技术有限公司
Shenzhen Ousent Technologies CO.,LTD
Specifications
10/100/1000M adaptive，SFP Media Converter
Quantity
1 SET
1 PCS
1 PCS
1 COPY
1
Advertisement
Table of Contents
Summary of Contents for Shenzhen Ousent Technologies CO.,LTD OS-MC12-SFP
-
Page 1: User Manual
深圳市欧深特信息技术有限公司 Shenzhen Ousent Technologies CO.,LTD 10/100/1000M SFP Fiber Media Converter User Manual Brief introduction Many thanks for purchasing 10/100/1000M SFP Fiber Ethernet Media Converter! This product supports IEEE802.3u 1000Base-Tx/Fx protocol, as well as full duplex and half duplex mode. Be designed with a switch controller and buffer memory that connect two types segments operation smoothly. -
Page 2: Installation
深圳市欧深特信息技术有限公司 Shenzhen Ousent Technologies CO.,LTD Installation 1.Interface RJ-45 interface The transmission media adopts CAT5 twisted-pair with typical length of 120 meter. It features the function of automatically identifying the through line and cross wire. Fiber interface SFP fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely TX-RX,RX-TX(direct butting for single optical fiber). -
Page 3: Main Features
深圳市欧深特信息技术有限公司 Shenzhen Ousent Technologies CO.,LTD Fiber transmission features Transmission characteristics of double fiber transceiver Product model Optical wavelength Optical power Sensitivity Transmission distance OS-MC12-SFP Decide by the SFP module you selected Main features In conformity to IEEE802.3 10 Base-T standard ,as well as to IEEE802.3u 100 Base-TX/FX standard. -
Page 4: Mechanical Dimensions
深圳市欧深特信息技术有限公司 Shenzhen Ousent Technologies CO.,LTD Mechanical Dimensions 94mm(L)*70mm(W)*25mm(H) (for outside power) 140mm(L)*110mm(W)*30mm(H) (for built-in power) Add: Floor 2 Building 1 Shunheda Industrial Area. 72Block Baoan District. Shenzhen City Guangdong P.R. CHINA Tel: (+86) 755 27889675 Fax: (+86) 755 27889675 ext 808... -
Page 5: Troubleshooting
深圳市欧深特信息技术有限公司 Shenzhen Ousent Technologies CO.,LTD Cautions This product is suitable for indoor application. Put on the dust cover of fiber interface when not used. Verify the product power supply conforms to your country AC power requirement before insert the power plug It is forbidden to stare at the TX fiber-transfer end with naked eyes.
