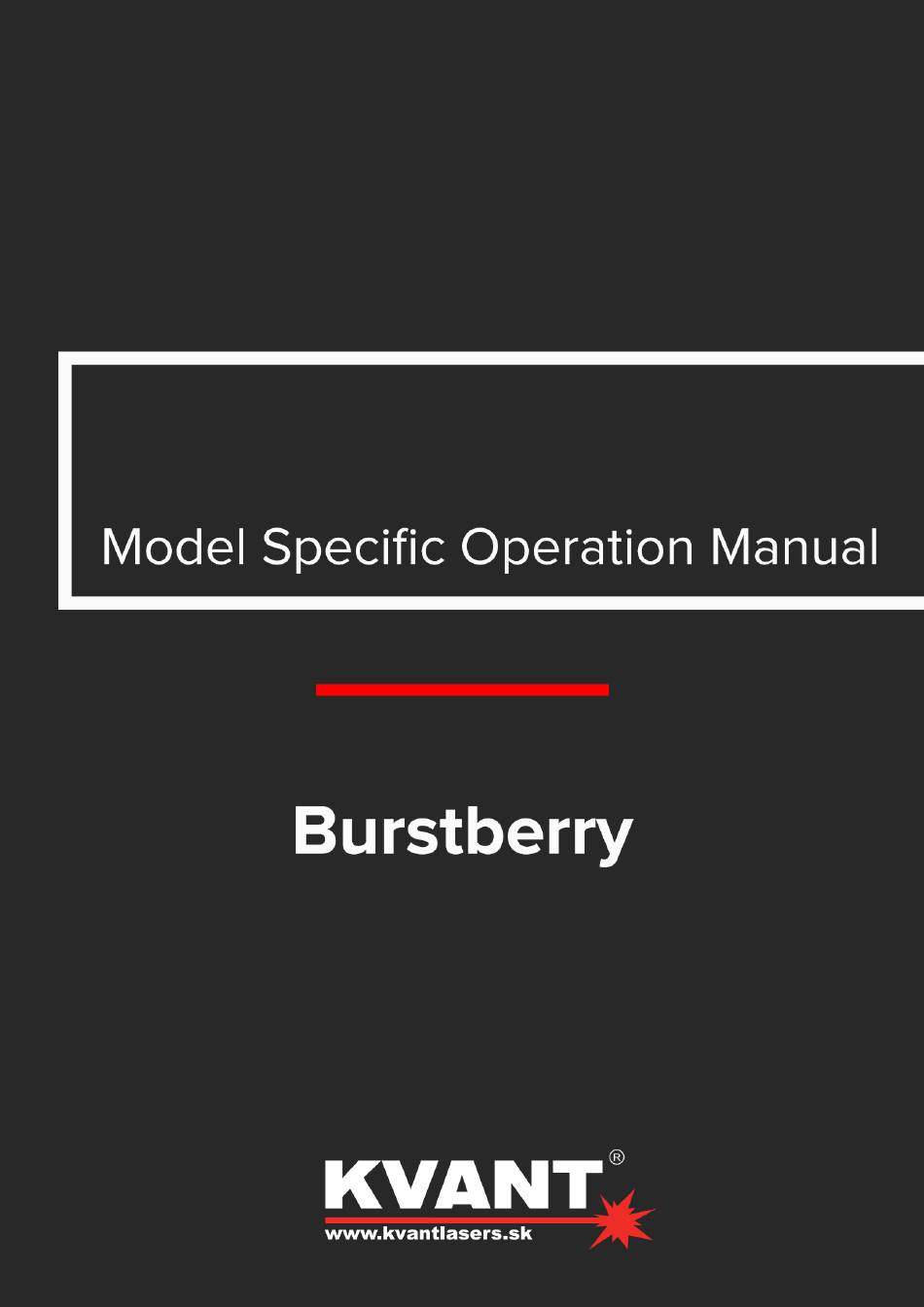

Summary of Contents for KVANT Burstberry
-
Page 2: Table Of Contents
5.1. Front View..........................21 5.2. Side View ..........................22 5.3. Rear View ..........................23 6. Beam Alignment ..........................25 6.1. Beam Alignment ........................27 7. Operation Instructions ........................29 8. Technical Specifications ......................... 31 8.1. Technical Specification Burstberry ................... 32... -
Page 3: Introduction
Kvant Lasers s.r.o. Burstberry - 1 1. Introduction Thank you for purchasing this KVANT product. To ensure proper operation, please read this manual carefully before using the product. After reading it, keep it in a safe place for future reference. -
Page 4: General Information
Kvant Lasers s.r.o. Burstberry - 1 2. General Information The following chapters explain important information about lasers in general, basic laser safety and some tips about how to use this device correctly. Please spend some time reading these information as some of them are critical for safe and efficient operation of this laser display system. - Page 5 The manufacturer and its distributors cannot be held responsible for any damages caused by improper use or misuse of this KVANT laser system. The owner/user is fully responsible for using this product in accordance to laser safety regulations of the country or state where the system is being used.
-
Page 6: What Is A Laser And How Does It Work
Kvant Lasers s.r.o. Burstberry - 1 2.1. What is a laser and how does it work? What is a LASER? The laser is a bunch of energy waves (streams of photons called radiation) with the same amplitude and faze that are flowing in the same direction; meaning they are coherent – they stick together and form a laser beam. - Page 7 Kvant Lasers s.r.o. Burstberry - 1 case with systems from far east manufacturers and with re-branded lasers that are being presented as European makes. Scanning System A scanning system is essentially two tiny mirrors, each moving on X or Y axis. By working together they can “scan”...
-
Page 8: Laser Safety First
Kvant Lasers s.r.o. Burstberry - 1 2.2. Laser Safety First! Before proceeding any further, please read the following safety page very carefully. It could help you avoid dangerous and hazardous situations which could lead to serious injury or property damage. -
Page 9: Installation Of The System
Kvant Lasers s.r.o. Burstberry - 1 2.3. Installation of the System The manufacturer is not liable for damages or a injury caused by improper installation of the system. The installation should be carried by a qualified installer who should follow the Laser Safety Regulations of respective country. -
Page 10: Control System
Burstberry - 1 2.4. Control System The overall performance of any KVANT laser system is also dependent on the control system that you use for operating the laser as well as the correct device configuration in the laser control software. -
Page 11: Scanning System
Kvant Lasers s.r.o. Burstberry - 1 2.5. Scanning System The product warranty does not cover the damages to the scanning system caused by improper use of the scanning system or by incorrect programming. Therefore it is essential to understand how the scanning works and where are the limits of it. In this manual we will explain only the basics of it but it is the responsibility of every user to educate themselves so they can avoid damage being caused to the scanning system and costly repairs. - Page 12 Kvant Lasers s.r.o. Burstberry - 1 As an example we’ll work with the star effect shown below and with the parameters of quality scanning system: Let’s say the star effect is made of 300 graphical points (including non-visible blanking points) and we know that the maximal scan-rate of our scanning system is 35kpps @ 8 degrees (= 35.000 points per...
-
Page 13: Connection Diagram
Kvant Lasers s.r.o. Burstberry - 1 2.6. Connection Diagram Please check that all the signal and power leads are correctly installed and that the safety keys are inserted in all necessary positions. Basic connection diagram Both E-STOP Remote safety key and laser system safety key must be inserted and switched to ON position in order to disable the interlock. -
Page 14: Multiple System Interlock
Kvant Lasers s.r.o. Burstberry - 1 2.7. Multiple System Interlock Multiple laser projectors may be daisy chained and controlled by a single E-STOP Remote. Any event which enables the Interlock on any laser projector in the daisy chain will trigger the safety Interlock for all the systems. -
Page 15: Switching On Sequence And User Interlock
2.8. Switching ON sequence and User Interlock Please make sure that all laser display safety requirements are fulfilled in accordance with laws of the country where this KVANT laser system is being used before switching the system ON. 1. Connect the system as showed on Connection Diagram. - Page 16 Kvant Lasers s.r.o. Burstberry - 1 Interlock Connection Diagram Page 14 of 32...
- Page 17 Kvant Lasers s.r.o. Burstberry - 1 E-STOP Connection Drawing including User Interlock option After the event has been corrected the START button on the E-STOP Remote must be pressed by the operator to disable the Interlock and after an Emission Delay period the laser projector will be ready for use.
-
Page 18: Maintenance
Kvant Lasers s.r.o. Burstberry - 1 2.9. Maintenance Aperture Window To clean the aperture output window use a soft cloth and medical grade isopropyl alcohol. Cooling Fans Use compressed air for cleaning the bottom part of the laser system. There are cooling fans located behind the slots and they are vital for correct operation of the laser system. -
Page 19: Item Checklist
Before starting, check that all the following items have been included with your laser system. If anything is missing, contact your supplier. Item Number of units Description 2 / 6 KVANT Burstberry FB4 Laser Display System 2 / 6 Hanging bracket for any placement. Emergency STOP Remote 1 / 5... - Page 20 Kvant Lasers s.r.o. Burstberry - 1 2 / 6 Set of 2 Safety Keys Network Signal Cables (cat5) – 10m 1 / 5 Network Signal Cables (cat5) – 0,6m User manual USB drive Heavy duty flight case Page 18 of 32...
-
Page 21: Optional Accessories
Kvant Lasers s.r.o. Burstberry - 1 4. Optional Accessories Here is a list of optional accessories that are compatible with Burstberry laser system. Item Description Intersection/Connector plate – allows you to set individual Burstberries further apart if necessary. SafetyScan lens DiscoScan 2.0... -
Page 22: System Overview
This is a real advantage for all the venues where lots of smoke or haze is used on a daily basis. The Burstberry laser system was designed for indoor use and therefore it must not be exposed to rain, snow or excessive amounts of dust. -
Page 23: Front View
Kvant Lasers s.r.o. Burstberry - 1 5.1. Front View 1. Laser aperture. To clean the aperture output window use a soft cloth and medical grade isopropyl alcohol. 2. Aperture masking plate. This metal masking plate can be moved left and right when the locking bolt is loosened. -
Page 24: Side View
Kvant Lasers s.r.o. Burstberry - 1 5.2. Side View 1. Optical compartment cover bolts. To access the optical compartment of the laser system undo 14 button hex bolts and carefully remove the cover. 2. RGB colour alignment mechanism. To access the colour alignment mechanism undo 2 silver bolts and remove the cover. -
Page 25: Rear View
Kvant Lasers s.r.o. Burstberry - 1 5.3. Rear View 1. Mains power INPUT/OUTPUT. Use supplied Neutrik powerCON TRUE1 power cable to connect the laser system to mains power supply using the INPUT connector. The OUTPUT connector is used to daisy chain power between multiple laser systems for quick and easy installation. - Page 26 Kvant Lasers s.r.o. Burstberry - 1 The User Interlock Connector may be replaced by the user’s own interlock system using a switch or dry relay closure to connect pins 1 and 2. With pins 1 and 2 shorted, Laser Emission is possible, provided all other interlocks are closed circuit.
-
Page 27: Beam Alignment
Kvant Lasers s.r.o. Burstberry - 1 6. Beam Alignment It is possible that due to transportation, rigging, moving around or vibrations caused by various elements during a set up or laser performance some of the internal optical parts can move slightly resulting in colour misalignment. - Page 28 Kvant Lasers s.r.o. Burstberry - 1 Beam alignment principle. There are three laser modules within this system where each module produces one of the basic RGB colours (red, green or blue). The goal of the alignment procedure is to align all three beams (colours) so they overlay each other nicely while they hit exact centre of the bottom scanning mirror.
-
Page 29: Beam Alignment
Kvant Lasers s.r.o. Burstberry - 1 6.1. Beam Alignment 1. Loosen 2 silver bolts that hold down the colour alignment mechanism cover and remove the cover. 2. Power up the system as normal. 3. Firstly, it is necessary to align a colour with the longest beam path between the laser module output and the scanning system in a way so it hits the exact centre of the bottom scanning mirror –... - Page 30 Kvant Lasers s.r.o. Burstberry - 1 Always loosen one of the screws in the pair first, before tightening the 2nd one down. All alignment screws A,B,C and D must be fastened at the end of each beam alignment procedure. Even if only one of them is loose, there will be not enough internal pressure on the pivoting bolt (E), which may result into misalignment of respective colour.
-
Page 31: Operation Instructions
Burstberry - 1 7. Operation Instructions Burstberry is based on FB4 and can be controlled in three ways. Art-Net, Autoplay and Beyond/QS. Art-Net FB4 uses for its functionality maximum 39 DMX channels (FB4 mode). There is also blinder LED and grating wheel installed in Burstberry. - Page 32 Beyond/QS In this mode Burstberry works as standard laser projector with built in FB4. In Beyond it is possible to control more Burstberry projectors. In QuickShow from version 4.0 it is also possible to control more Burstberry projectors.
-
Page 33: Technical Specifications
Kvant Lasers s.r.o. Burstberry - 1 8. Technical Specifications All the technical specifications are subject to change without prior notice. Page 31 of 32... -
Page 34: Technical Specification Burstberry
Kvant Lasers s.r.o. Burstberry - 1 8.1. Technical Specification Burstberry KVANT Burstberry – full colour, semiconductor diode laser system Total Optical Power (installed): 2.1W Total Optical Power (guaranteed): 2W* Maximum Output Power: 2.2W *Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed.
