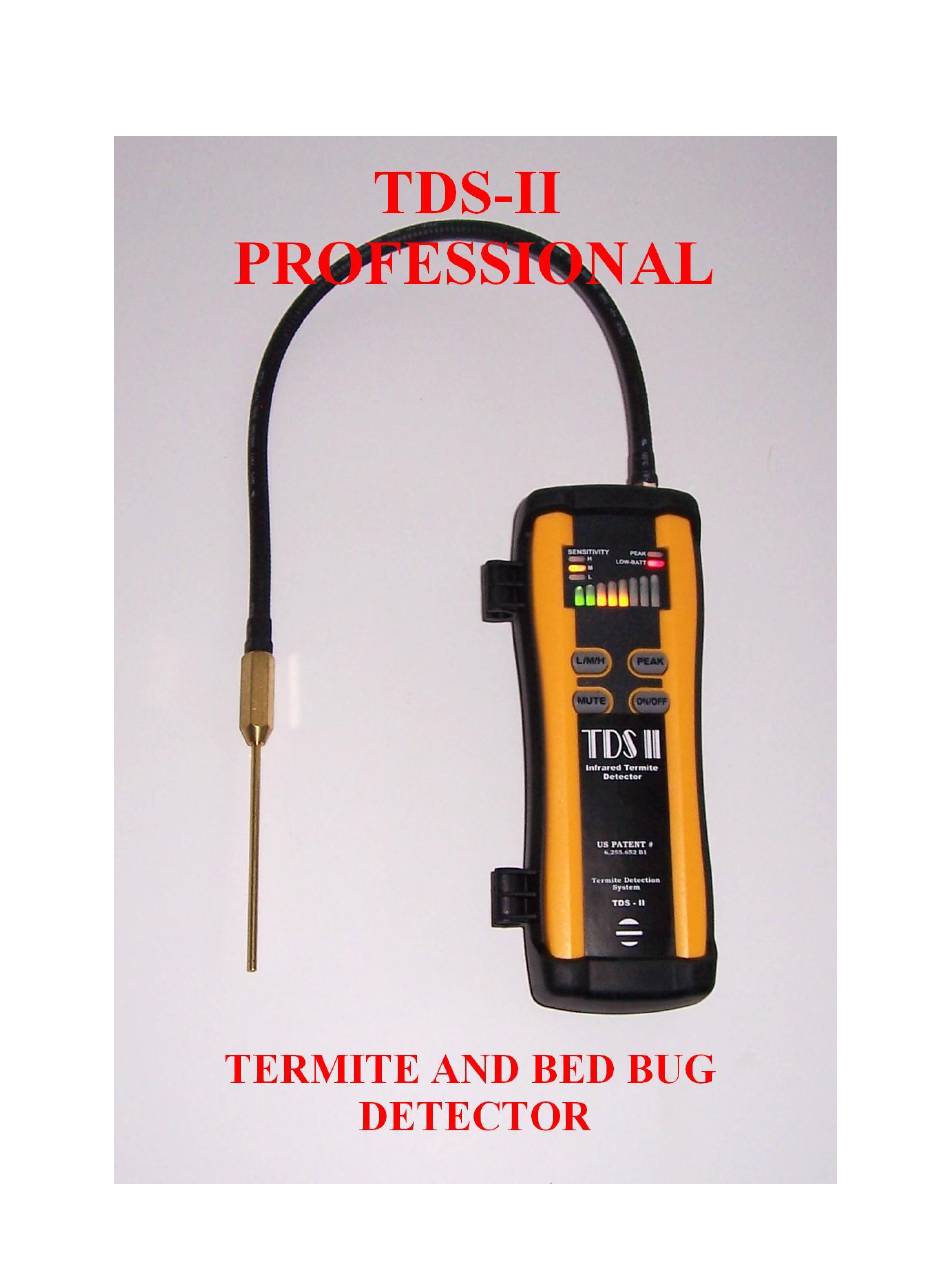

Summary of Contents for Termite detection systems TDS-II
- Page 2 Termite detection and isolation of as few as 2 or 3 termites to full colonies is achieved and as few as one bed bug may be detected with the unit in the Turbo mode. The TDS-II operates on a rechargeable lithium ion polymer battery that gives the user over 8 hours of use before recharging.
-
Page 3: Operation
OPERATION ON/OFF Protection To turn the TDS-II on or off, press and hold the ON/OFF button for one second. This slight delay protects against inadvertently triggering. If you forget to turn it off, the TDS-II will automatically turn itself off after 10 minutes of no activity to conserve battery charge life. - Page 4 Move the TDS-II probe tip slowly along a suspected area (2-3 inches per second). If a signal occurs go back to the area and check closer. Subsequent positive signals at suspected area strongly suggests the presents of termites.
- Page 5 TDS-II unit needs to be set in the super sensitive TURBO mode. To put the TDS-II unit into this mode of operation, first turn the unit on and allow it to warm up and be ready for detection. Once it is ready put the unit in high sensitivity mode then quickly press the PEAK button four times.
- Page 6 POST TREATMENT USE The TDS-II is an excellent tool to aid the user in verification of a successful treatment of an infected area. After the prescribed timeframe for a successful eradication of the termites or bed bugs the TDS-II can be used to determine if it was completely successful. Although there may still be the tell tale signs infestation, if no live termites or bed bugs are present there will be no detection signal.
- Page 7 Battery Charging The battery supplied with the TDS-II is a rechargeable lithium ion polymer battery that will run continuously for 8 eight hours before a charge is needed. Recharging to a full state requires...
-
Page 8: Specifications
Part Number Product/Description 600-001 TDS-II Wand Extension 600-002 TDS-II Needle Probe 600-003 TDS-II Vehicle Charger 600-004 TDS-II Wall Charger 600-005 TDS-II Filters & O-ring Gaskets (Pkg. of 10 each) 600-007 TDS-II 3.7V 1800 mAh Li-ion Battery 600-010 TDS-II Nozzle Tip... -
Page 9: Troubleshooting Guide
- Nozzle filter has become clogged. - replace filter and/or clean probe 2. TDS-II will - ON/OFF button - Hold ON/OFF button not turn on not held for 1 down for 1 second second to turn on - Battery is - Recharge battery. - Page 10 Problem Cause Solution 4. The - On strong - Pull TDS-II away TDS-II does detected signals from the detected not detect the TDS-II needs area for 3 -5 seconds again at the...
-
Page 11: Warranty And Service
The TDS-II is warranted to the original purchaser against detects in material or workmanship for a period of one (1) year from the date of purchase by Termite Detection Systems, Inc. (TDS) During this warranty period, TDS will at its option, replace or repair the defective unit. The warranty does not apply to defect resulting from abuse, neglect, accident, unauthorized repair, alternation, or unreasonable use of the instrument. - Page 12 Any defective TDS-II should be returned to TDS for warranty service along with original proof of purchase and return material authorization (RMA) number. An RMA may be obtained by contacting TDS at the number below. Repair or replacement of the unit is at the sole discretion of TDS.
